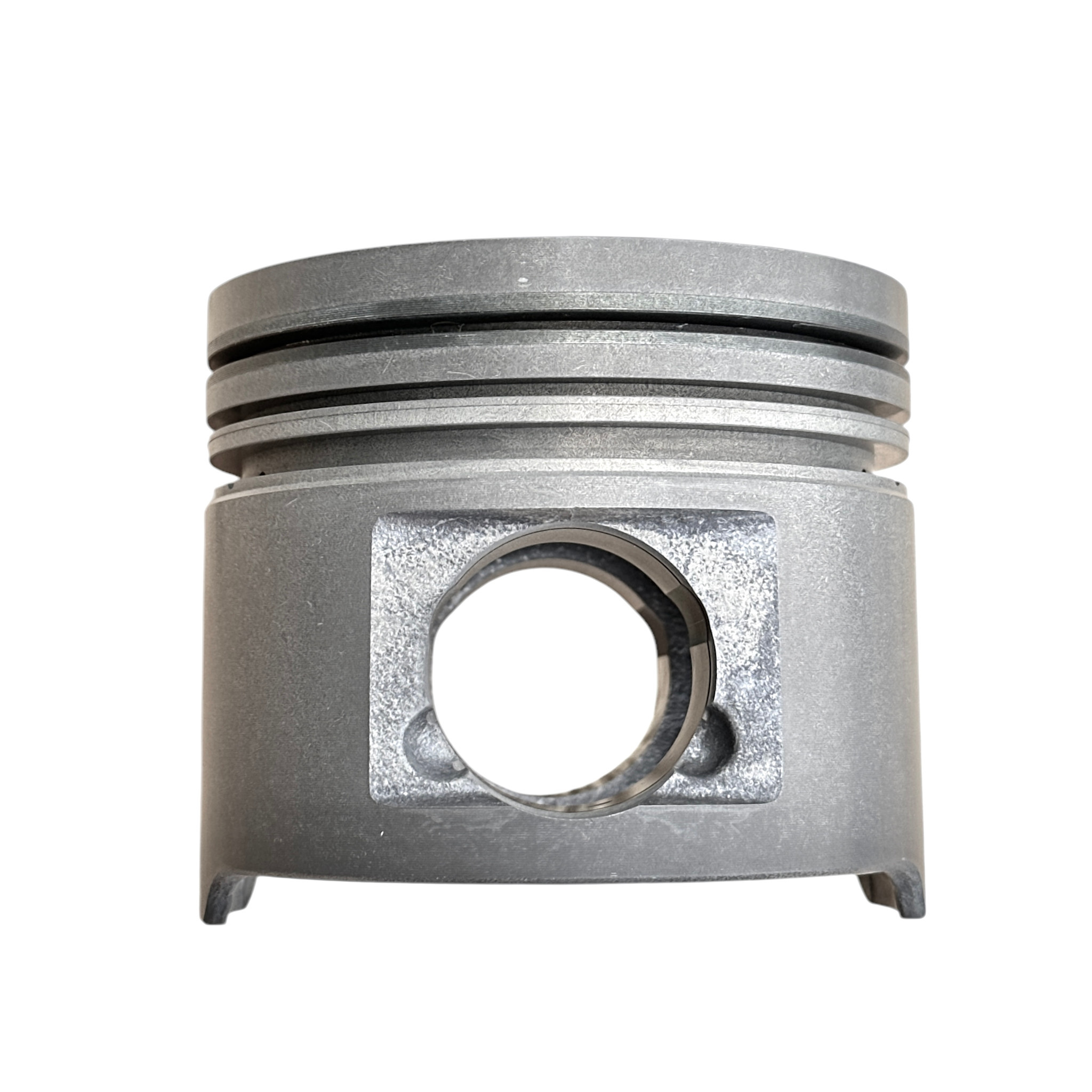

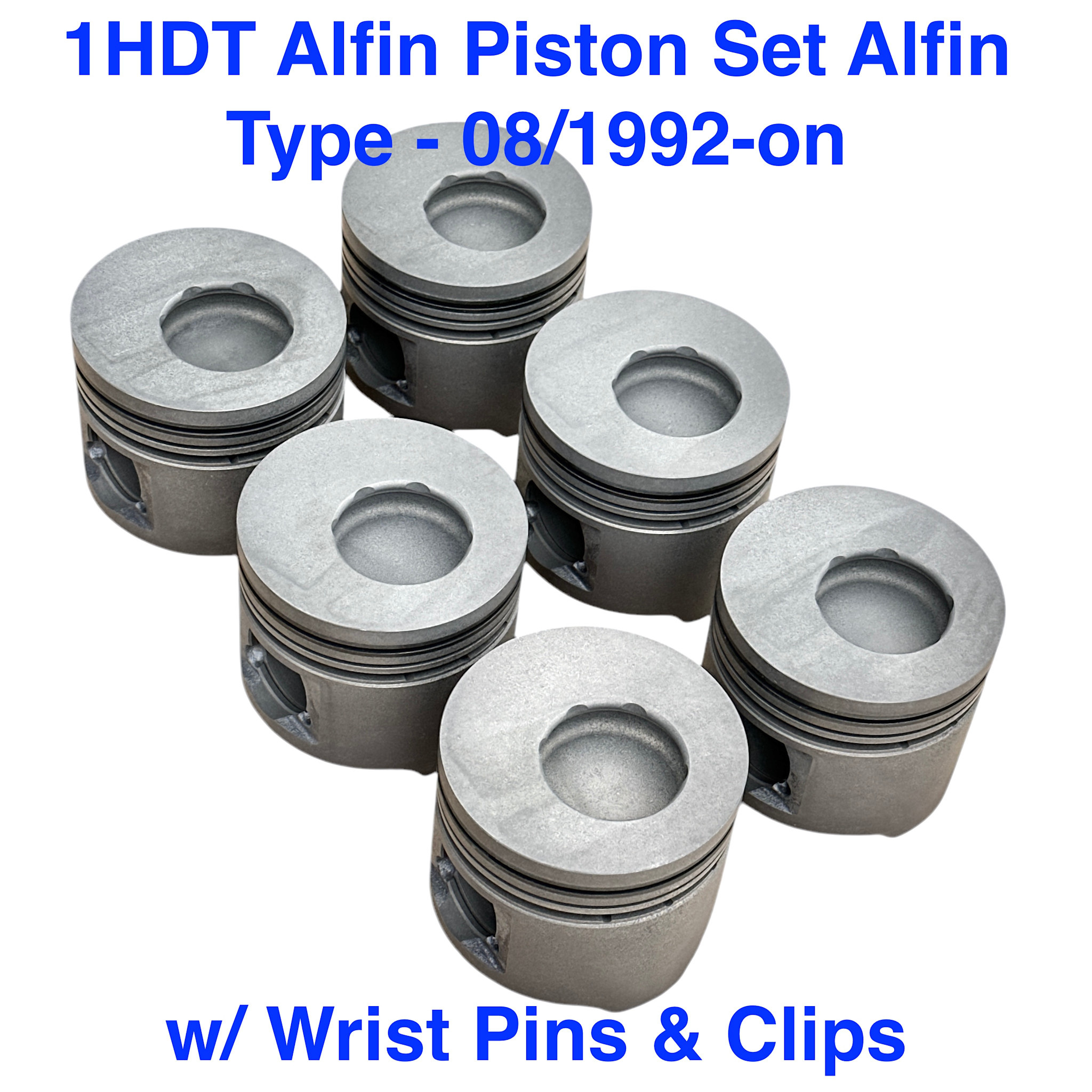

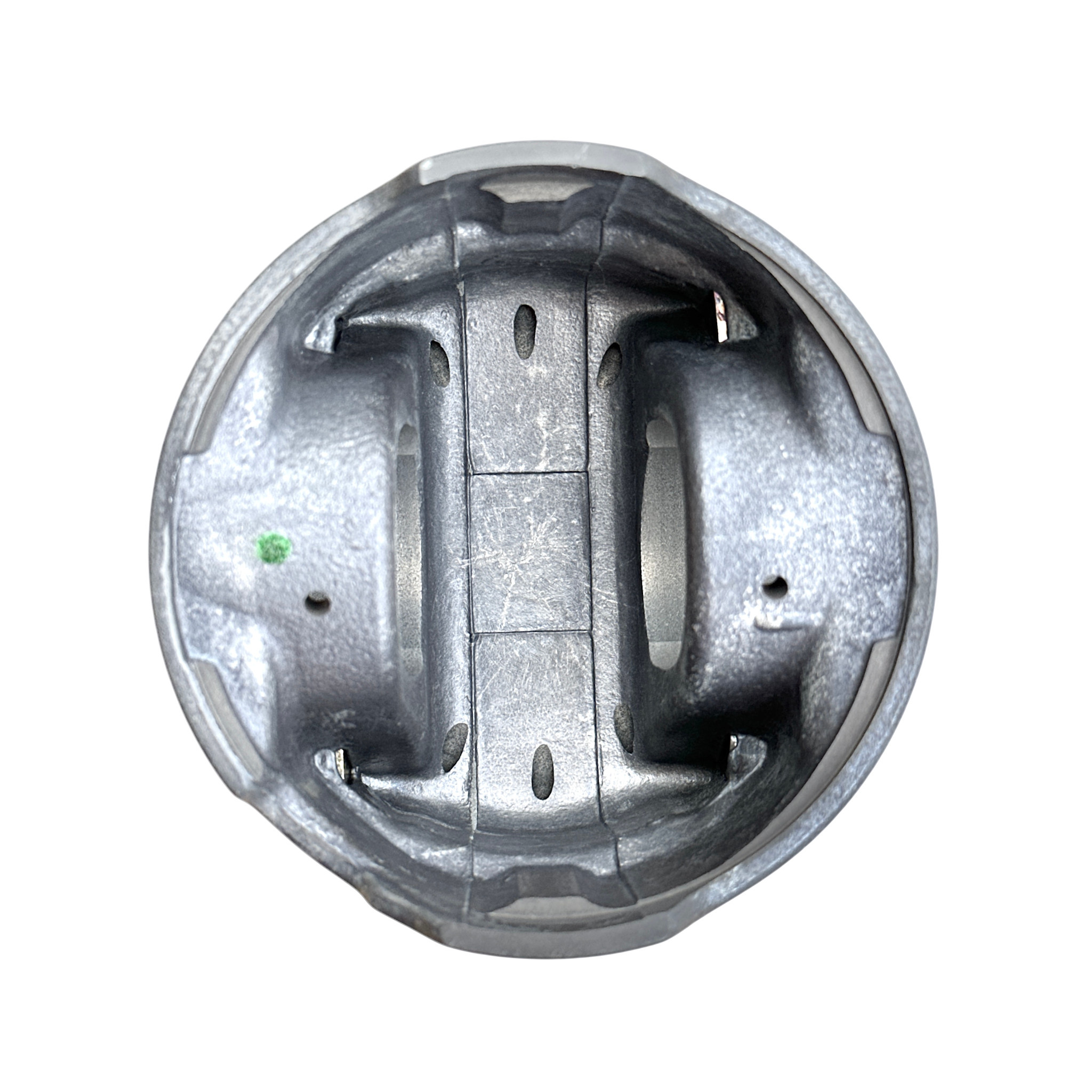

Piston Set, 1HDT - Std. Size, Alfin Type w/ Pins & Clips - 08/1992-on

1HDT Piston Set - early vintages 08/1992-on (start of the 1993 Model Year)

Please contact us to order these parts

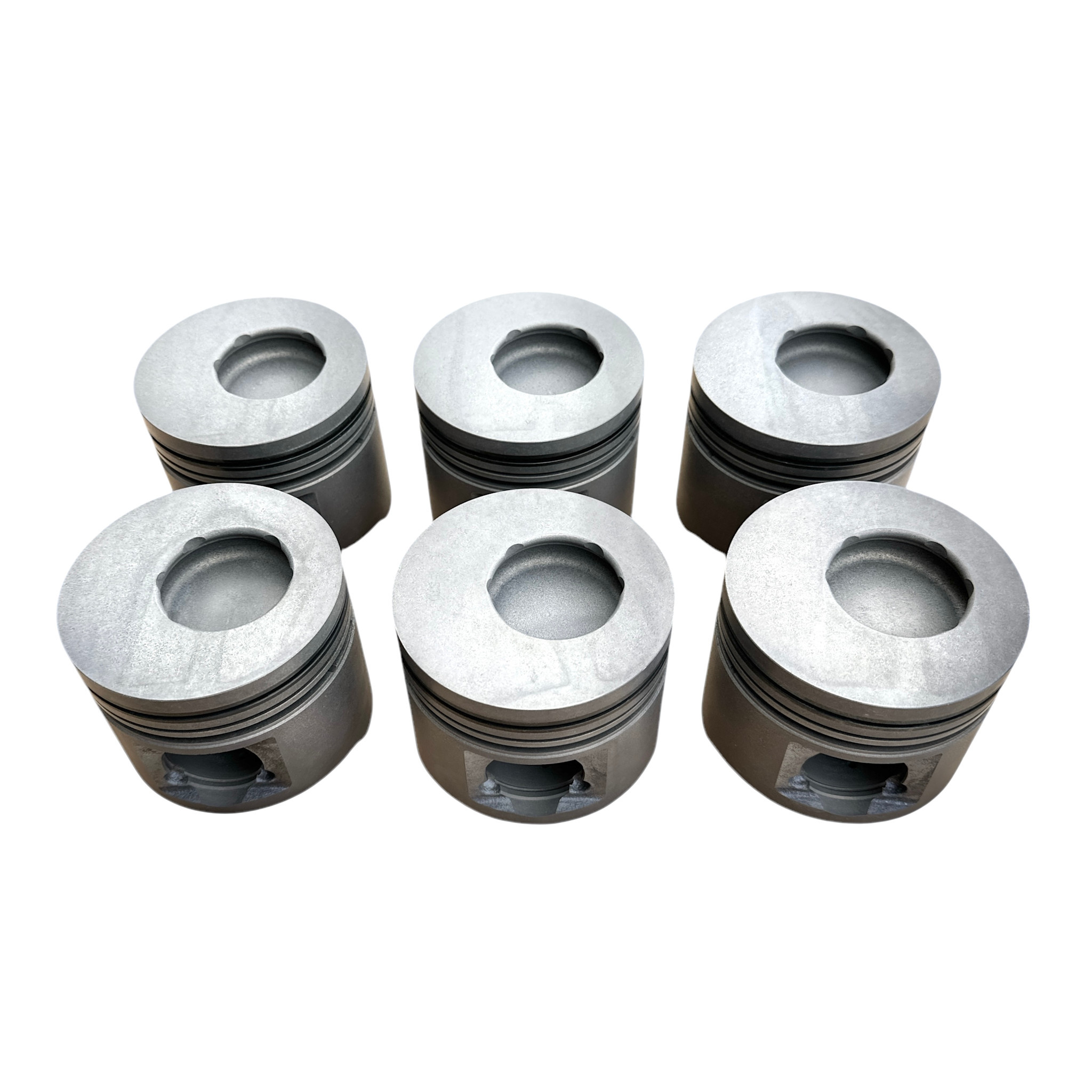

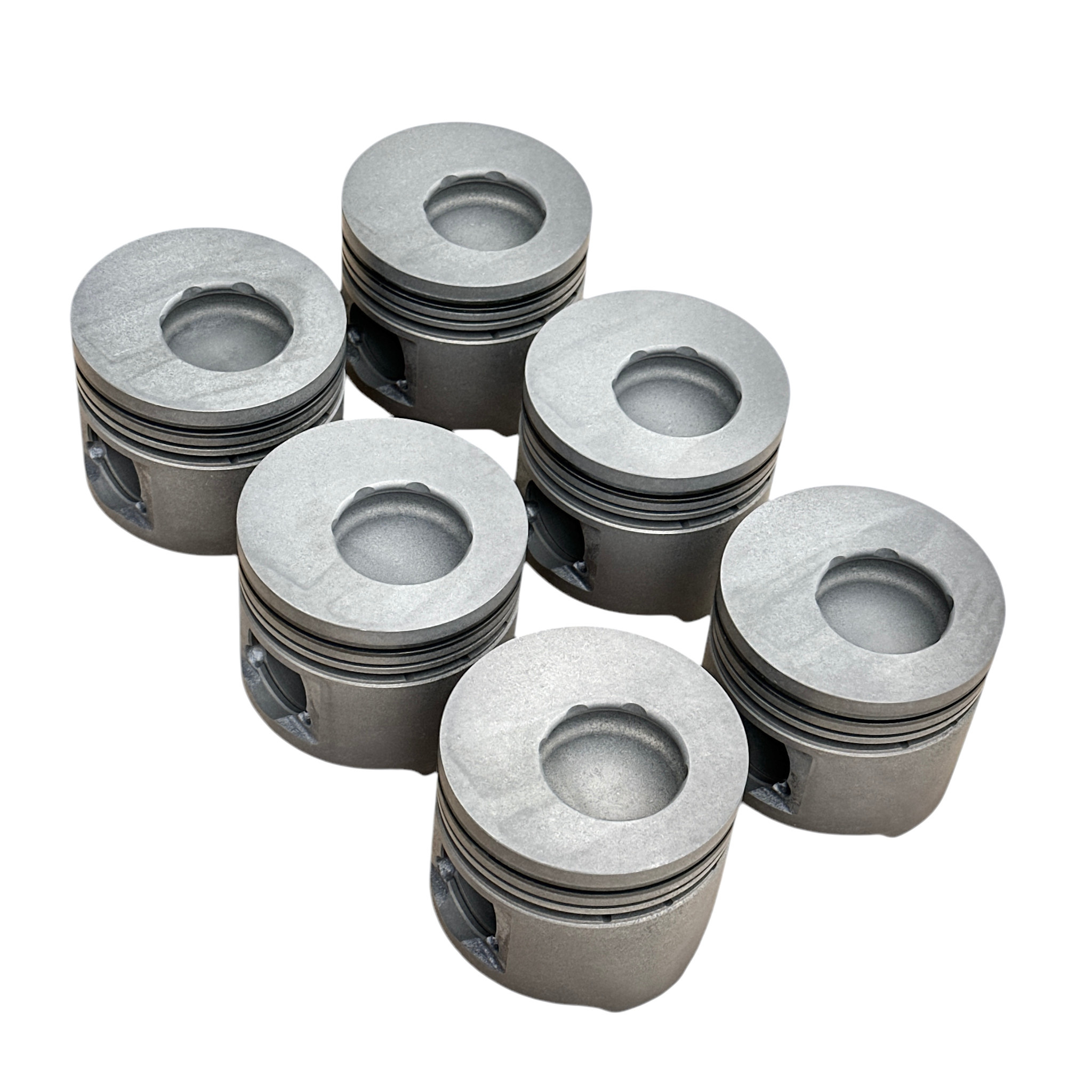

• These are supplied as a 6 pistons set, and include the piston pins and pin retainer clips.
• Does not include piston rings - order separately
• Does not include Wrist Pin Bushings - order separately

Note: The early and late model 1HD-T pistons use different injector washers; it is important to ensure you are using the correct injector washers with your vintage of pistons to maintain the correct injector spacing. Do not mix and match early and late parts.

Replaces Toyota pn:
13101-17040-01 Std. Mark 1
13101-17040-02 Std. Mark 2
13101-17040-03 Std. Mark 3
Note: there are no "Mark" sizes in aftermarket pistons

Aftermarket pn:
POTO350A

Also available by request -

1st Oversize 0.50 mm
13103-17040

2nd Oversize 1.00 mm

Very high quality aftermarket
Engineered in Australia, made in Taiwan

2023 02 16
