Knuckle Seal & Felt Kit, Land Cruiser 40, 60 & 70 Series up to 1989 (Terada) Japan - 04434-60011

Article number: 04434-60011
Availability: In stock (4)

Knuckle Seal Kit, Land Cruiser 40, 60 & 70 Series from 1976 up to 1989

Note: One Kit has does both sides of the front axle.

See parts lists below of what is included and what is not included.

This is a seal and gasket kit for the front knuckle.

It does not contain the trunion (aka king pin) bearings and does not contain the metal felt retainers or metal ring that supports the rubber knuckle wiper seal.

Toyota pn:

Aftermarket - Japan

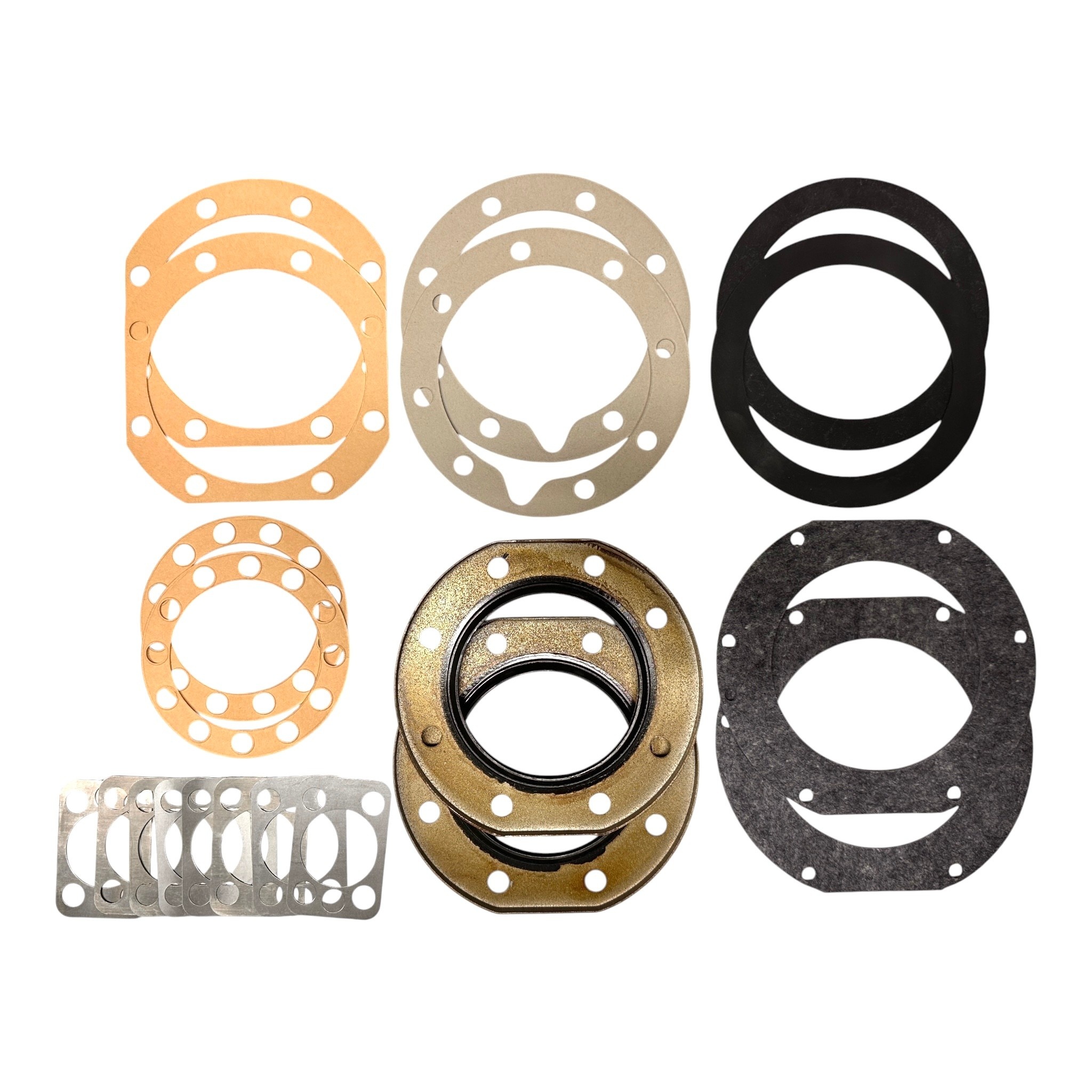

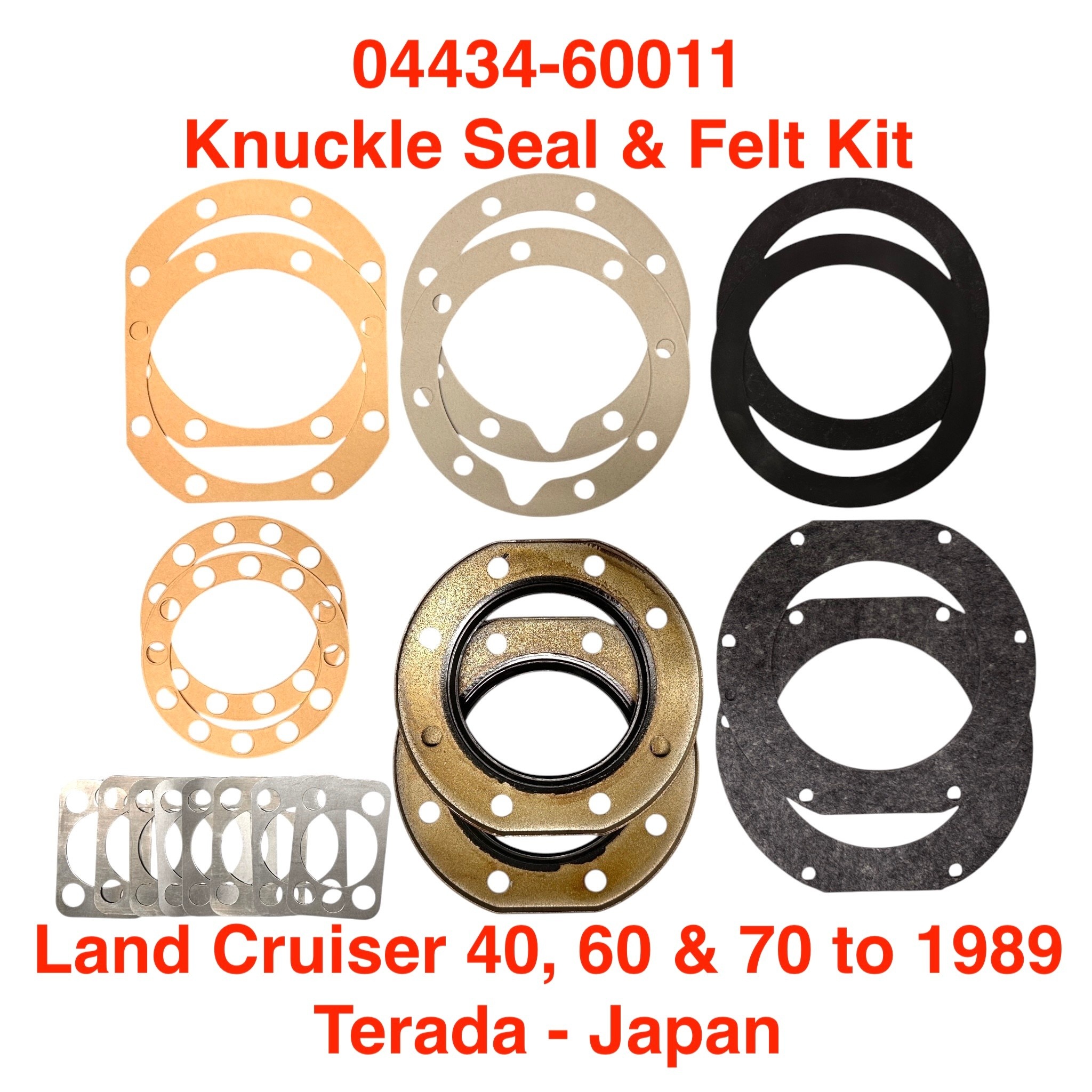

Kit Contents:
43233- Knuckle Preload Shim Set
2x 43422-60010 Hub Gasket
2x 43435-60010 Spindle Gasket
2x 43436-60010 Dust Seal Gasket
2x 43402-60010 Spindle Oil Seal
2x Rubber Knuckle Wiper Seal
2X Felt Knuckle Wiper Seal

Kit does not contain:
• 90215-38020 Star Washer/Locking Tab Washer
• 90312-55010 (early) or 90311-62001 (late) Wheel Bearing Seal
• 90311-33085 Inner Axle Seal
• No Part Number - The tin retainers that hold the Rubber/Felt into place (that bolt to the knuckle) - these can be found in a different kit, see: 43204-60020
• No Part Number- Metal Ring (that goes between the knuckle and the rubber wiper/felt)- these can be found in a different kit, see: 43204-60020
