DriveTech4x4 Swivel Hub/Knuckle Kit - Toyota Pick up & Hilux w/Solid Axle & Land Cruiser 40, 42, 43, 45, 55, 60, 61, 62, 70 Series 1981 to 1989

C$189.99
Article number: DT-SH4
Availability: In stock (5)

Swivel Hub/Knuckle Kit - Toyota Pick Up & Hilux w/Solid Axle & Land Cruiser 40, 42, 43, 45, 55, 60, 61, 62, 70 Series from 1981 to 1989

Fits all Toyota Hilux/Pick-up & Land Cruiser models from 1981 to 1989 with Non-High Pinion front end: FJ40, FJ45, FJ55, BJ40, BJ42, BJ43, BJ60, BJ61, HJ45, HJ60, HJ61, FJ60, FJ62 with disc brake front axle from 08/1980 to the end of 1989 model years.

Fits Toyota 4WD mini-truck w/solid front axle & Hilux LN106 solid front axle pick up trucks.

For High Pinion 8" axles on >1990 70 Series, use DT-SH5.

Notes:
• The semi-circular retainer plates for the felt seals are not included in these kits.
• In addition, the kits no longer include the split rings that go behind the rubber wiper.
--> Re-use your old parts.

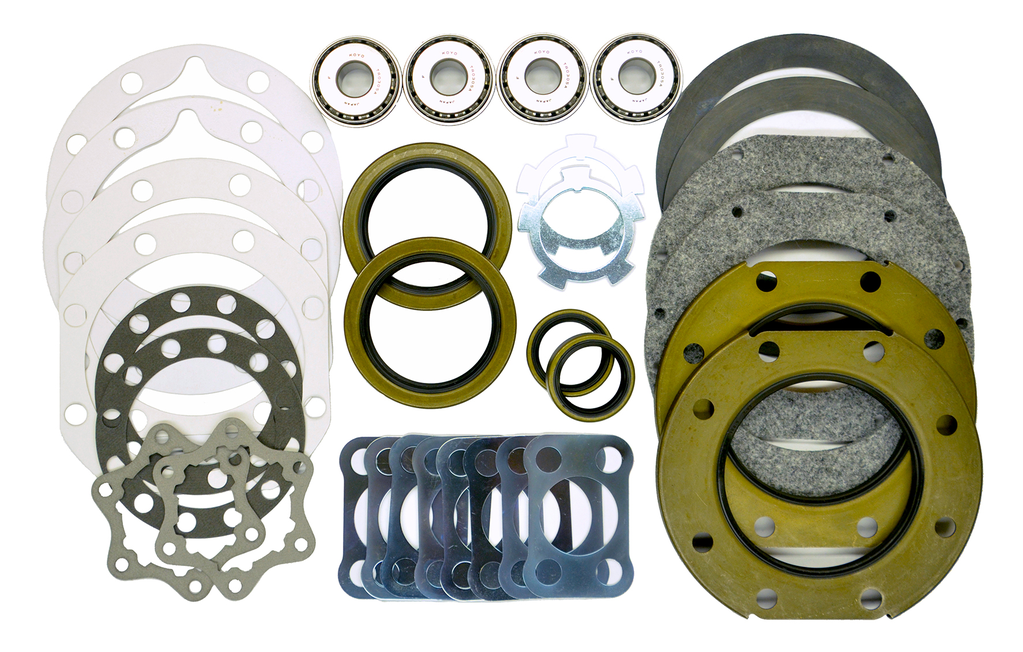

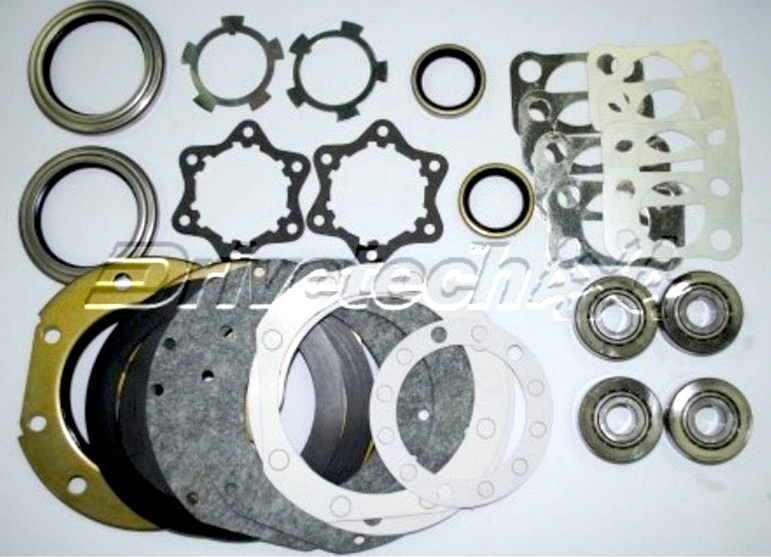

Kit Contents:

  • 4x Knuckle/Trunion Bearings (Koyo - Japan) 90366-17001
  • 2x Wheel Bearing Seals 90311-62001
  • 2x Inner Axle seals 90311-33085
  • 2x Hub Cover Gasket ("star gasket") 43531-60010
  • 2x Hub Body ("multi hole") Gasket 43422-60010
  • 2x “Star” Lock Washer 90215-42025
  • 2x Dust Seal (the large one for bearing hub to spindle) 90313-93011
  • 2x Gasket for Dust Seal to Backing Plate/Spindle 43436-60011
  • 2x Gasket for Spindle to Knuckle 43435-60011
  • 2x Felt Seal, Rubber Wiper Seal 43204-60020

Note: Wheel bearings are not included in the knuckle kits, but are available separately.
