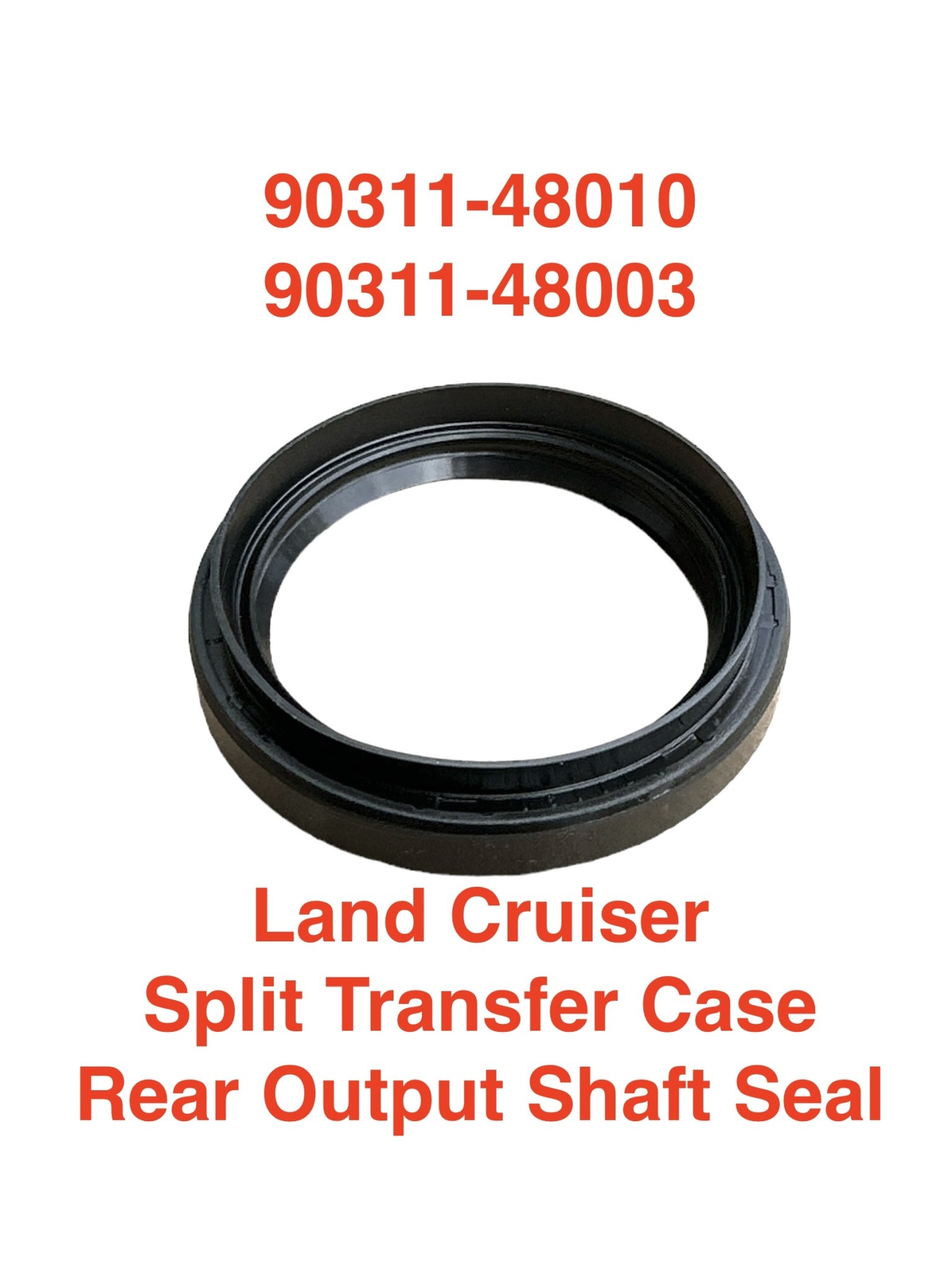

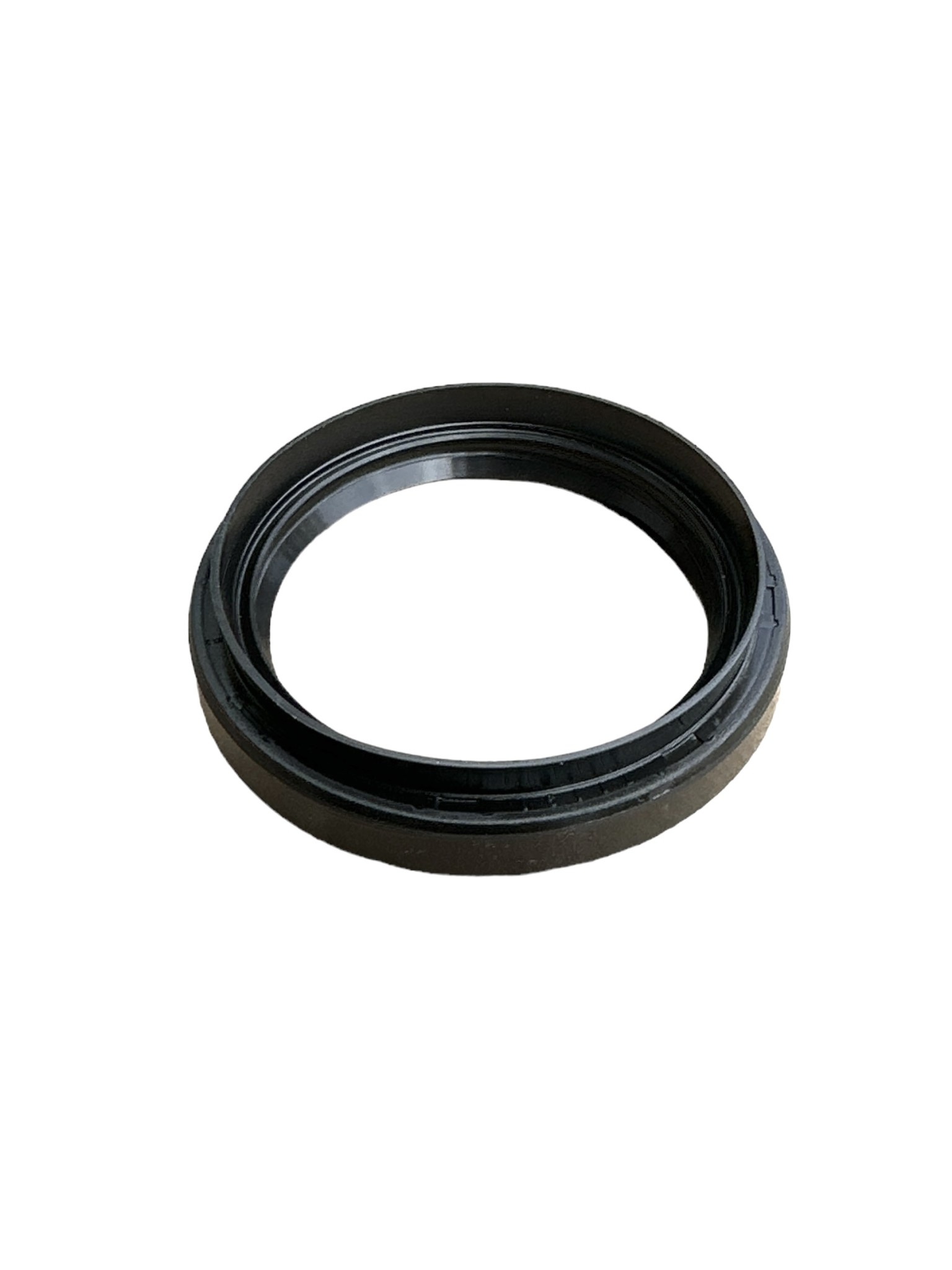

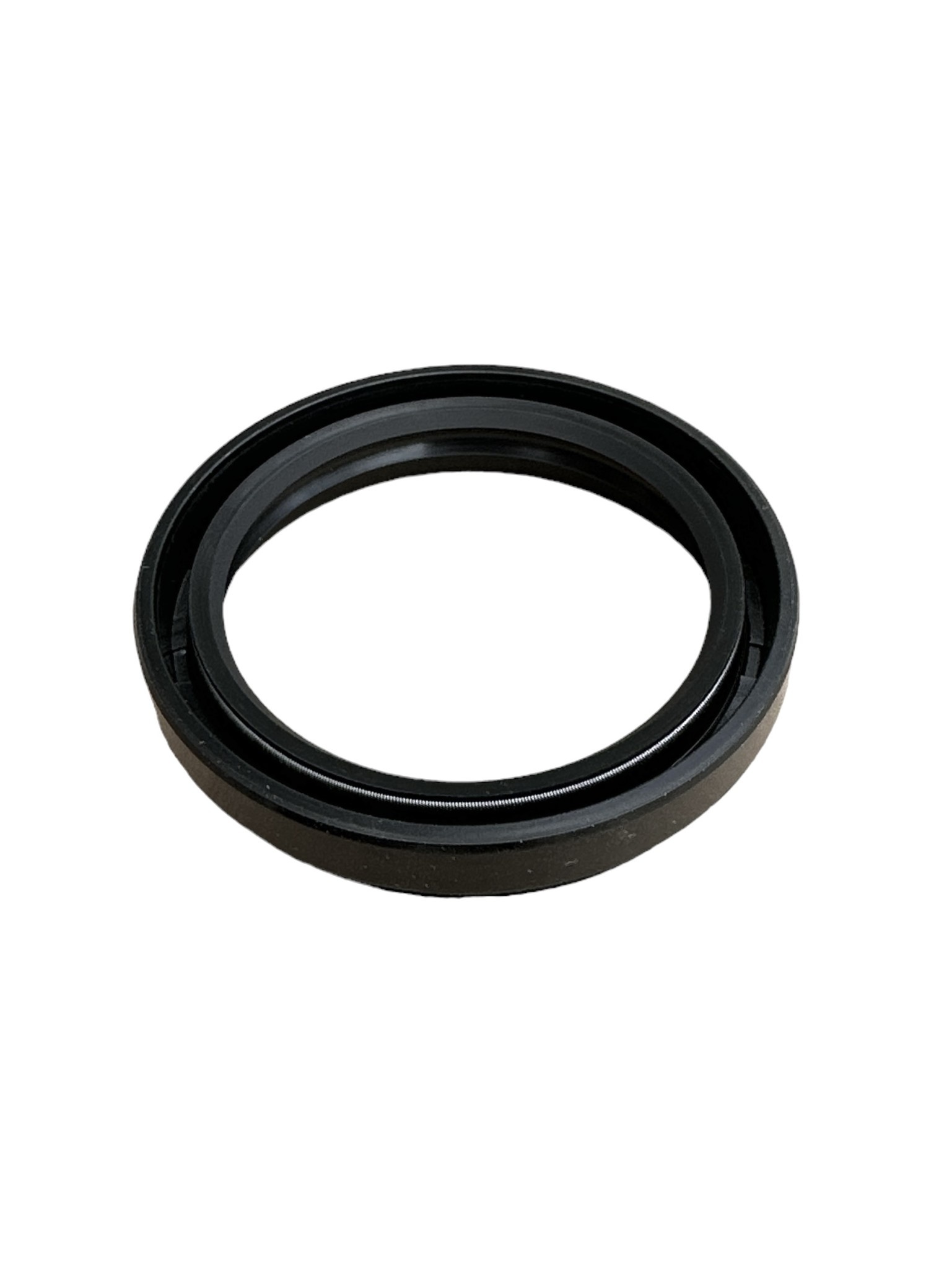

Seal, Rear Output Shaft - Land Cruiser Split Transfer Case - 08/1980-on 48x62x8/13

Seal, Rear Output Shaft - Land Cruiser Split Transfer Case - 08/1980 - On

Seal Dimensions: 48x62x8x13 mm (id x od x seating depth x oal depth with dust lip)

There is a later version of the output shaft seal that has an outside diameter of 65mm instead of 62mm. The 65mm seal part number is: 90311-48023

Applications using the 65mm seal are for 01/1990 and later models using the 151 series transmissions. Check before ordering.

May be substituted with: 90311-48016 which has the same dimensions and without the dust lip (48x62x8 mm)

Toyota pn:
90311-48010 = supplied part
90311-48003

Musashi - Japan
Toyota - Japan

T1191
2022 04 05
2023 12 27
9031148010
9031148003
