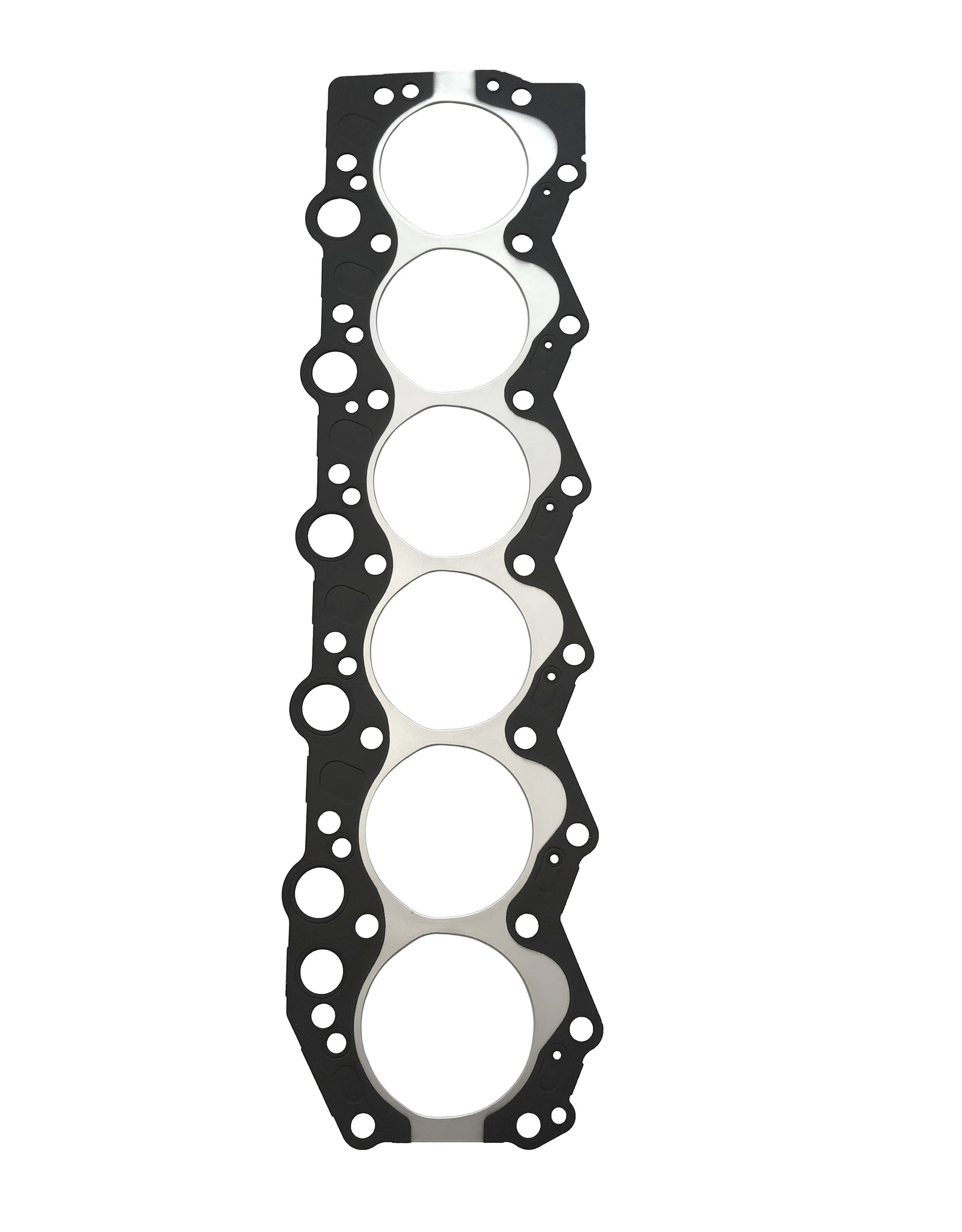

Gr. 1 1HZ, 1HDT Head Gasket - Toyota 11115-17010-01

Article number: 11115-17010-01
Availability: In stock (1)

Cylinder Head Gasket for the Toyota Land Cruiser 1HZ and 1HDT engines as found on the HDJ80, HDJ81, HZJ70, HZJ73, HZJ77, HZJ76 etc.

Grade 1 Head Gasket

This is the grade 1 gasket which is the thinnest offered for this family of engines.

Piston protrusion must be measured at each cylinder before installing this gasket to ensure there is no interference. Piston protrusions must be fairly close between cylinders to ensure the engine runs well.

Factory Service Manual pages regarding piston protrusion

Replacing connecting rods as a matched set is a quick way of ensuring protrusion measurements will be equal across all cylinders.

To complete a head gasket replacement properly, you will require new head bolts and an upper end ‘VRS’ or Full Engine gasket set.

See the “other items you may be interested in” slider at the bottom of this page to link to the other suggested items.

Toyota pn:

Toyota (OEM) - Made in Japan
