Brake Hardware Kit, Drum Brake (combi kit) - Land Cruiser 08/80 - 08/92 w/self-adjusting drum brakes - RC-Combi LC Drum Brakes

Brake Hardware Kit / Brake Spring Kit for Rear Drum Brakes (combi kit)

Land Cruisers 08/1980 - 08/1992 (and some later models) w/self-adjusting full-size drum brakes including: 40, 60, 70 & 80 Series that use brake shoe part numbers: 04495-60070, 04495-60011, 04495-60030, 04495-60060, 04495-60010, 04495-34020.

NB: Does not fit Land Cruisers with rear disc brakes and hat style rotor with a small parking brake inside the disc/drum.

• One kit does both sides
• Comes with the correct brake hold-down nails for HD Land Cruisers drum brakes

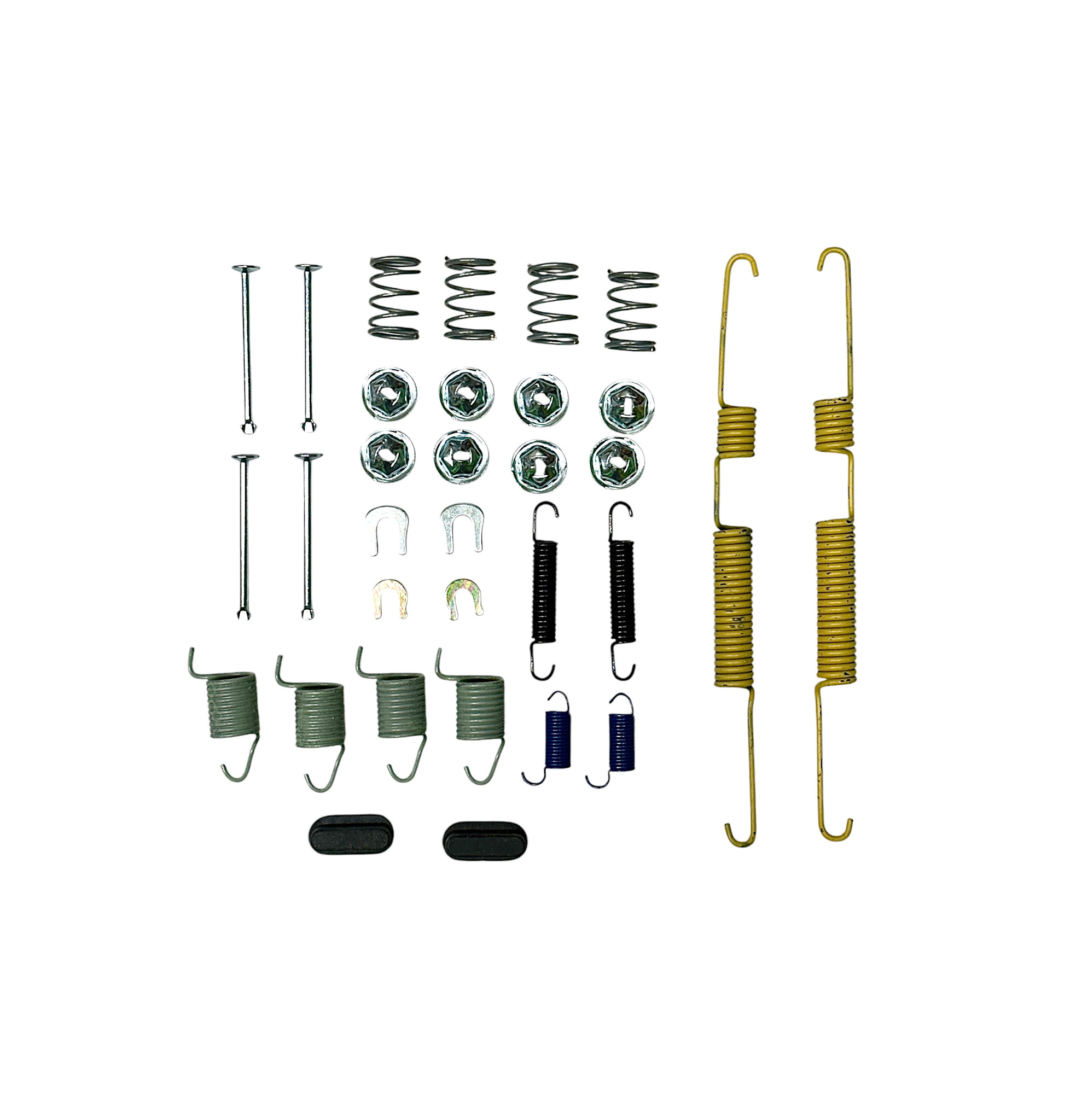

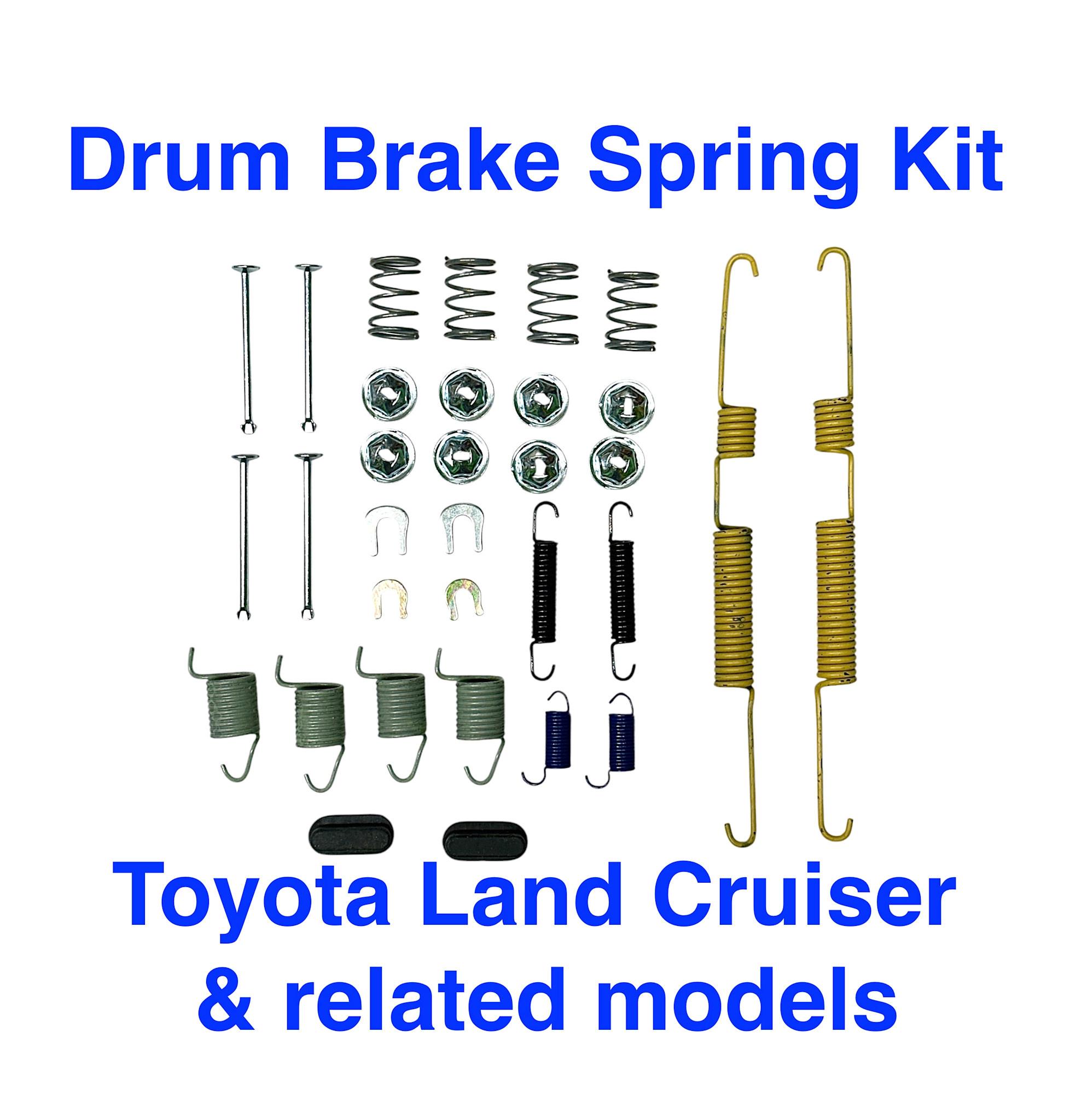

Kit Contents:
4x 47447-60010 Pin, Shoe hold down (aka: brake shoe nail)
8x 47449-30020 Cup, for hold down pin & spring
2x 47491-20011 Plug, Hole - for adjustment hole
2x 90506-26011 (RH)/90506-26014 (LH) Spring, Tension for brake shoe return (yellow)
2x 90506-18031 Spring, Tension for brake shoe return rear (smaller spring, goes at the bottom) (black)
2x 90506-12031 Spring, Tension for automatic adjust lever (blue)
2x 90213-06013 Clip, (T=1.2mm)
2x 90213-07010 Clip, (T=1.6mm)
4x 90506-20033 Spring, Tension for parking brake bell crank return

Kit is locally assembled by RADD Cruisers from OEM and aftermarket parts

8708.30
4744760010
4744930020
4749120011
9050626011
9050618031
9050612031
9021306013
9021307010
9050620033

[2x 47492-28010 Plug, Hole - for brake shoe inspection (some models)]
[2x 96160-00500 Ring, E for auto adjust mechanism]
[2x 90213-06013 Clip, (T=1.2mm)]
[2x 90213-07010 Clip, (T=1.6mm)]
