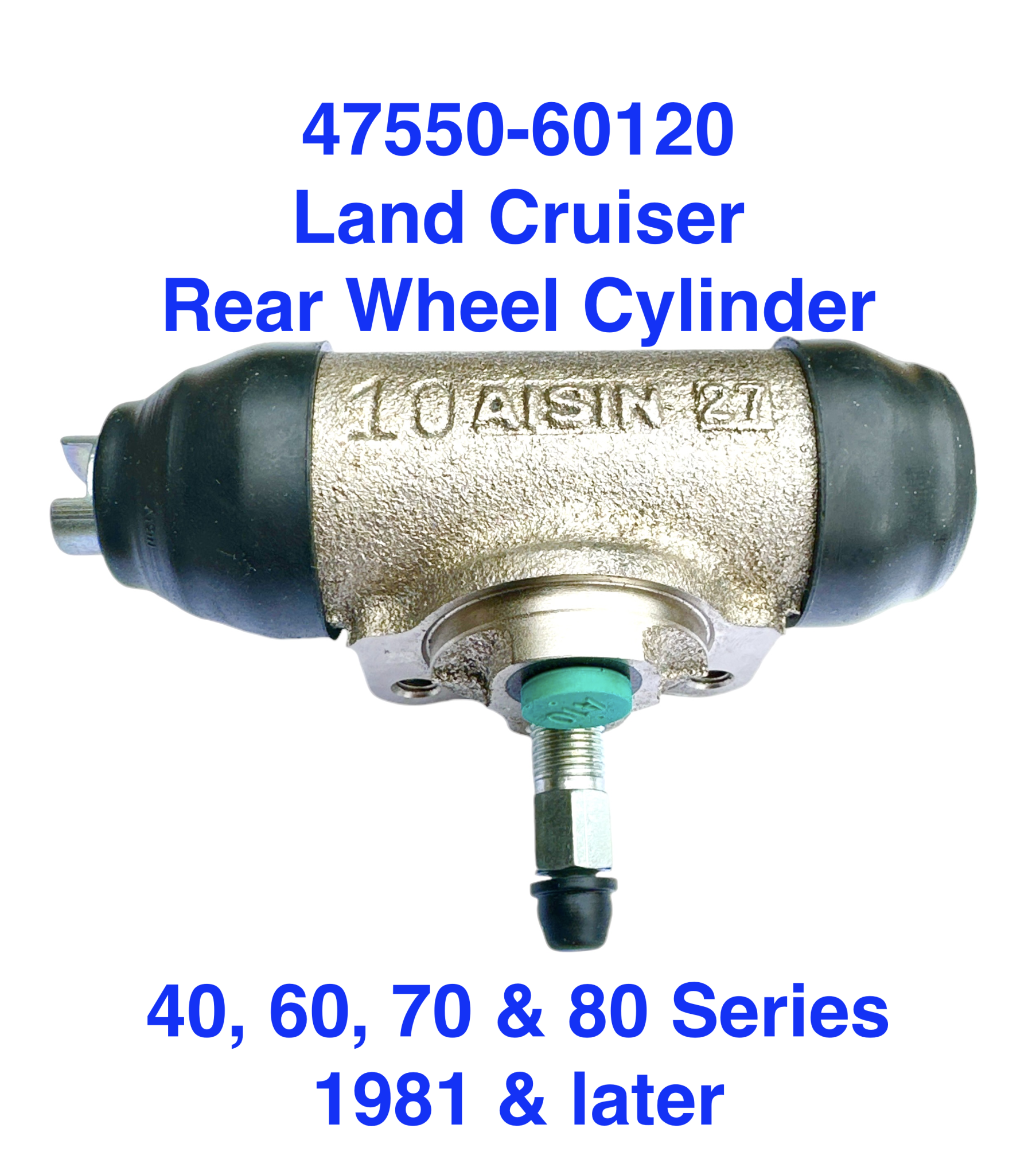

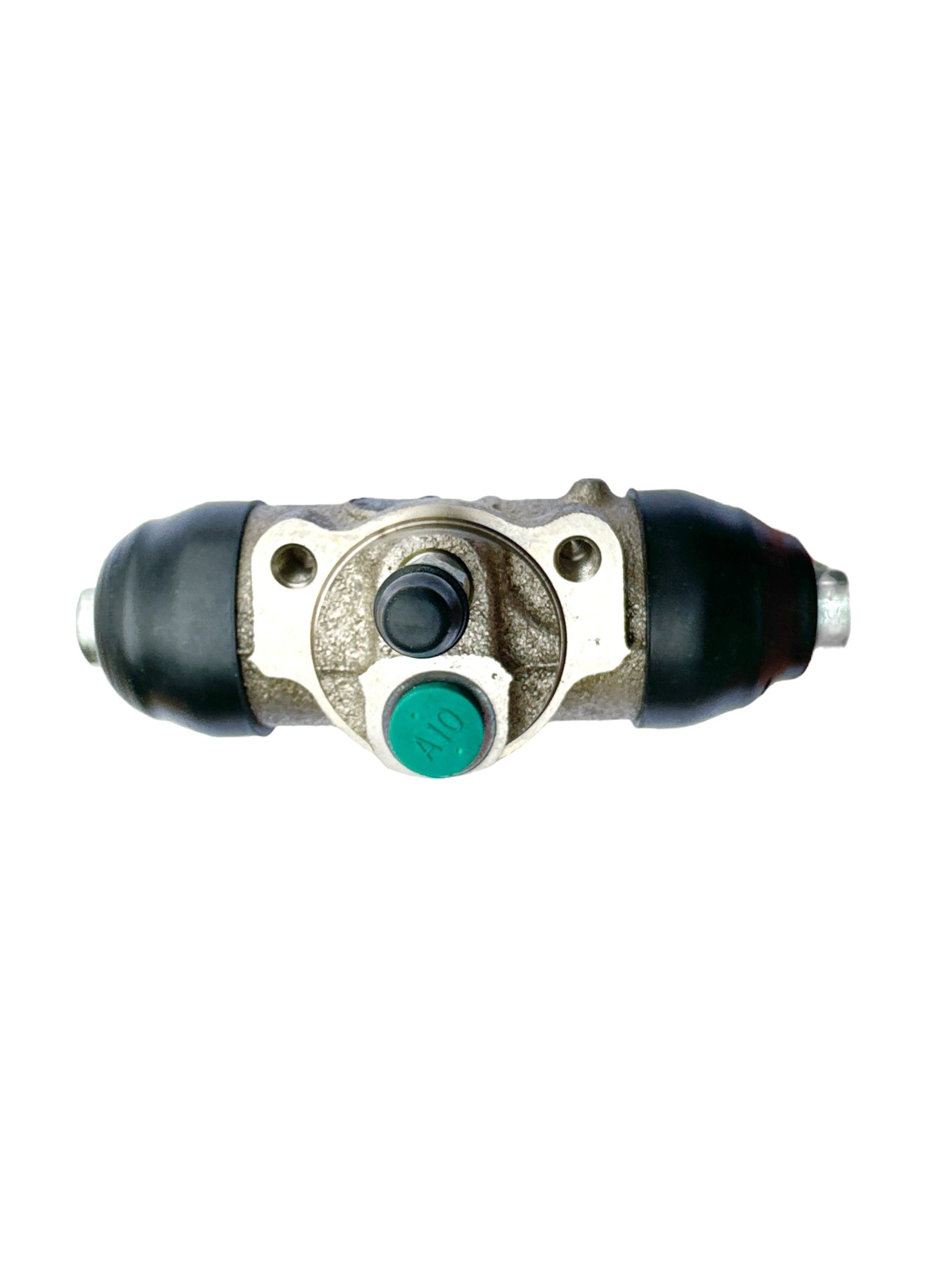

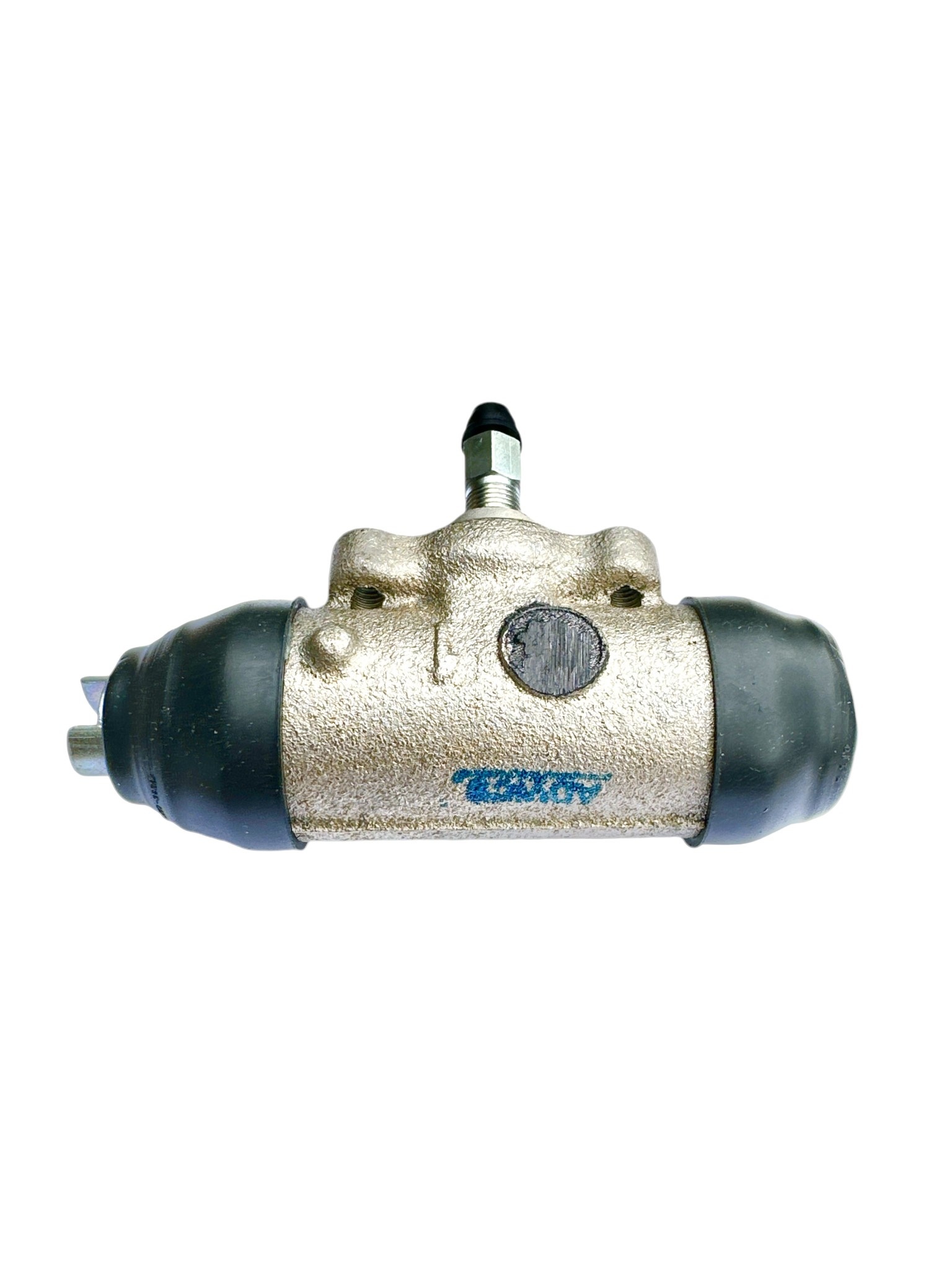

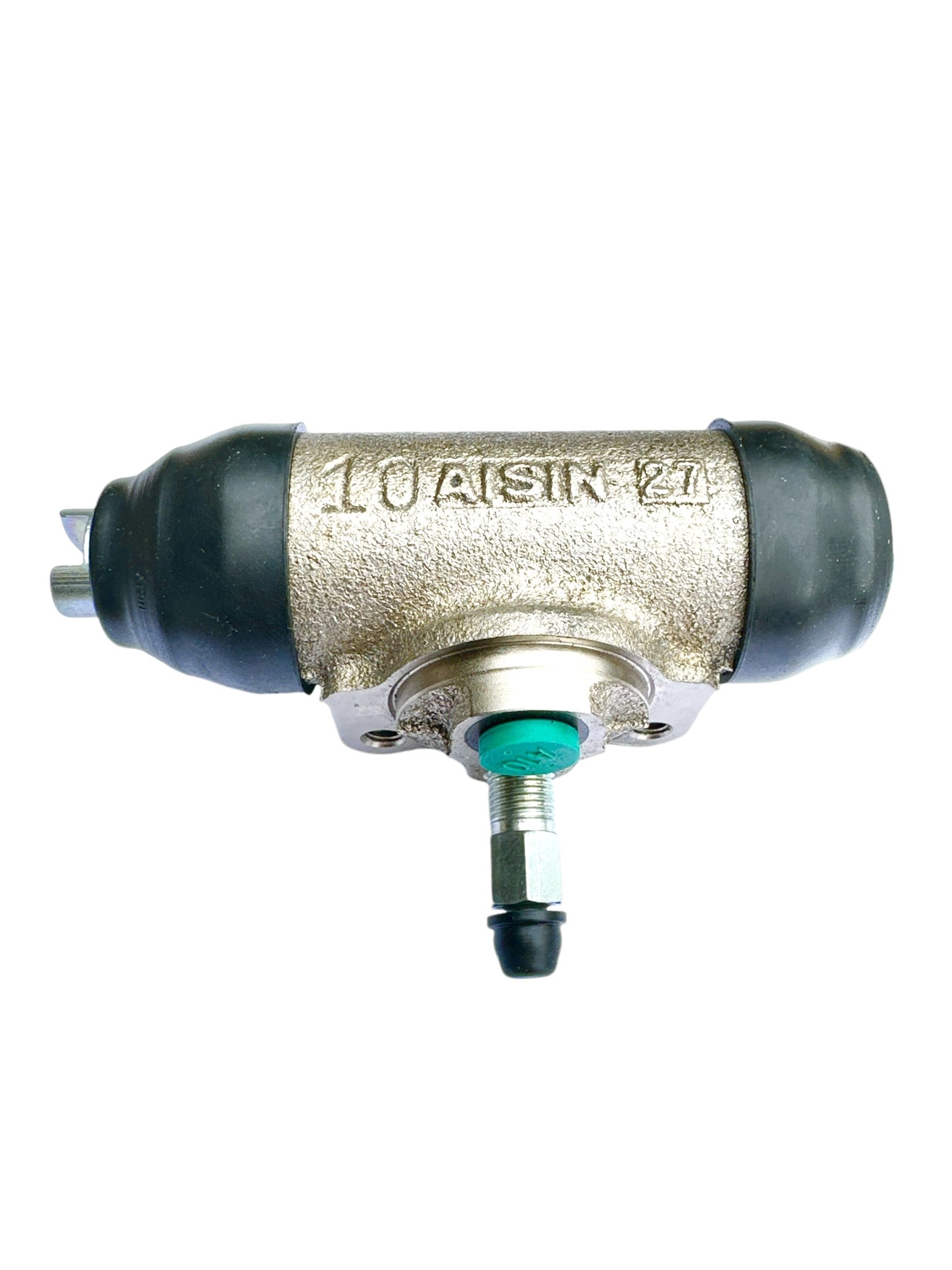

Wheel Cylinder, Rear - Land Cruiser 40, 60, 70 & 80 series w/self-adjusting drum brakes (1981 & later). 1" bore 10x1mm fittings - 47550-60120 OEM

Rear Wheel Cylinder - w/self-adjusting drum brakes (1981 & later) - 1" bore cylinder 1x10mm metric fittings

• Suits Land Cruiser 40, 60, 70, 80 & 100 Series with self-adjusting rear drum brakes and equipped with front disc brakes
Note: some markets have front drum brakes, and use wheel cylinder 47550-60130 in the rear brakes - which has a larger bore of 1-1/8" - and these are not compatible with -60130).

• Suits some vintages of 4Runner (1996-2000), Hilux Pick Up, Hilux Surf, Tundra (2000-2006), T100-Pickup (1993-1998) - some models only, not all.
Note: please provide VIN/Frame Number to confirm the correct part number as there are 3 possible wheel cylinder bore diameters depending on 2WD vs 4WD, and 1/2 ton vs 1 ton.

• Suits some vintages and models of HiAce Vans such as LH56V, LH66V, LH168V, LH178V, LH186B, LH188K & some others.
Note: Please check your part numbers carefully or supply your VIN/Frame Number so we can send you the correct parts.

Wheel Cylinder 47550-26110 is a 15/16" bore (vs 1" bore) and is compatible with some models of:
• Hilux LN130R
• HiAce LH109V, LH119V, LH129V, LH166L
• Dyna KDY220L, KDY220R, KDY221L, KDY221R, KDY230L, KDY231L, LY220R, LY225L, LY225R.

Note: Please check your part numbers carefully or supply your VIN/Frame Number so we can send you the correct parts.

1" bore 10x1mm brake line fittings

Pro Tip: When you are installing any brake tube fitting, bleeder screw, or mounting bolt add a small amount of anti-seize compound to the threads for trouble-free disassembly later on.

Also, carefully dismantling and applying a thin layer of Sil-Glyde or other brand of silicone brake parts lubricant to the piston, seals, and bore can extend service life.

Toyota pn:
47550-60120 = supplied part, others may be no longer in production
47550-35210
47550-69105

Toyota OEM / Aisin - Japan

8708.30
0,570
4755069105
4755060120
4755035210
WCT011
