AC Compressor (R134a) - 10PA15C (Korea) w/clutch for LN107, LJ78, KZJ71, KZJ78 - 88320-60500

AC Compressor 10PA15C R134a - S. Korea - Toyota Land Cruiser Prado LJ71, LJ78, KZJ71, KZJ78 & related models w/pulley & clutch (12V)

This brand new compressor is a replacement for Denso 10PA15C, and includes the clutch & pulley and is compatible with R134a refrigerant.

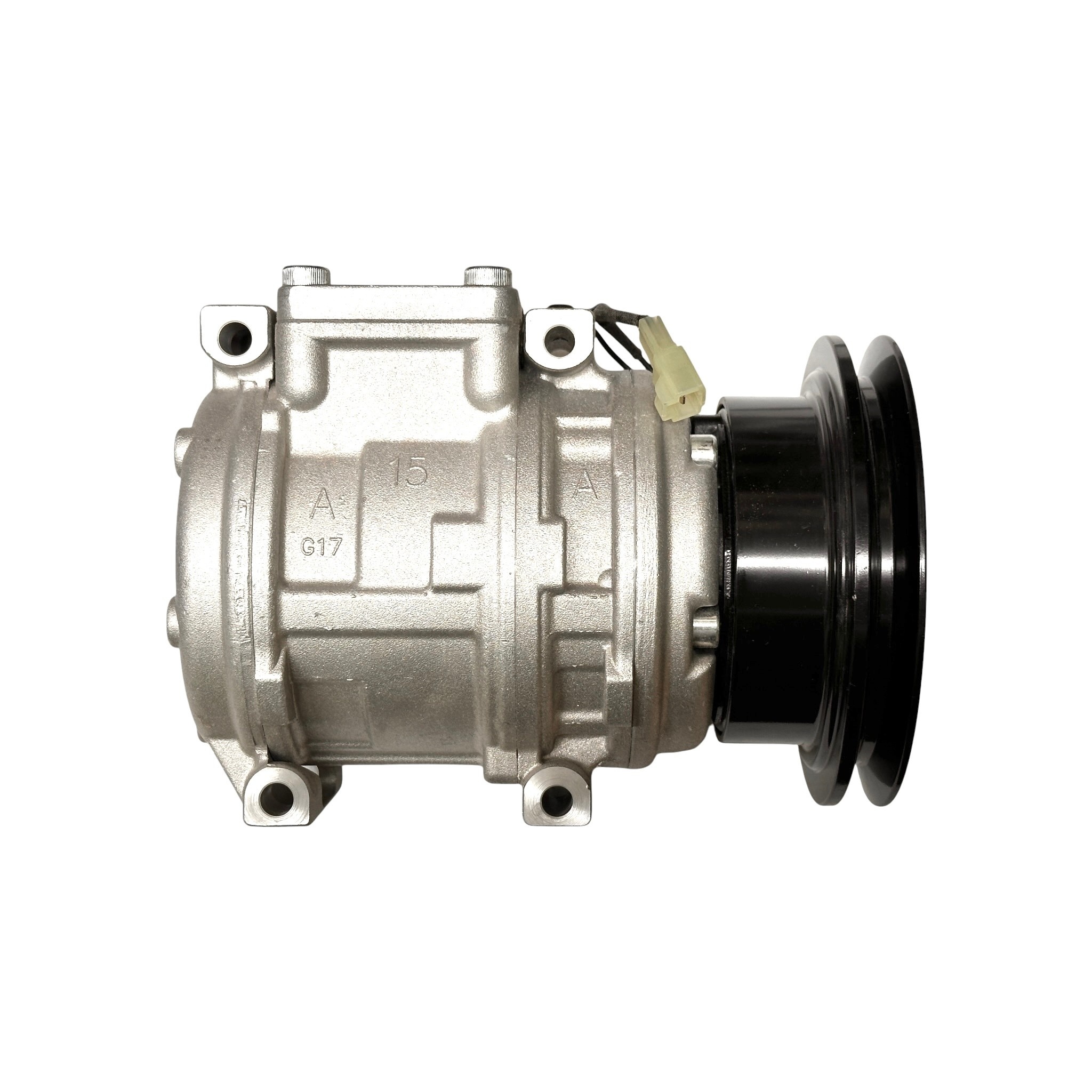

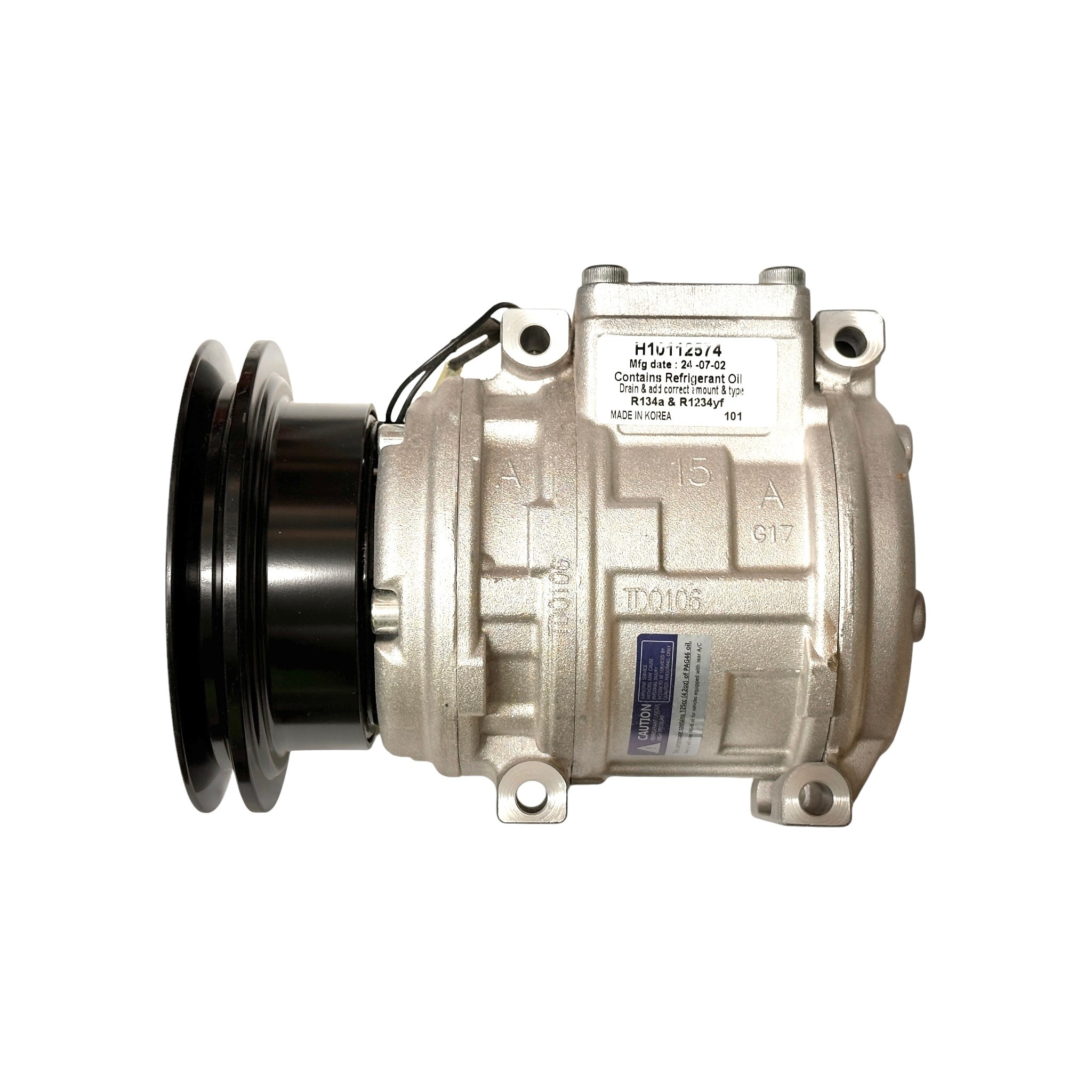

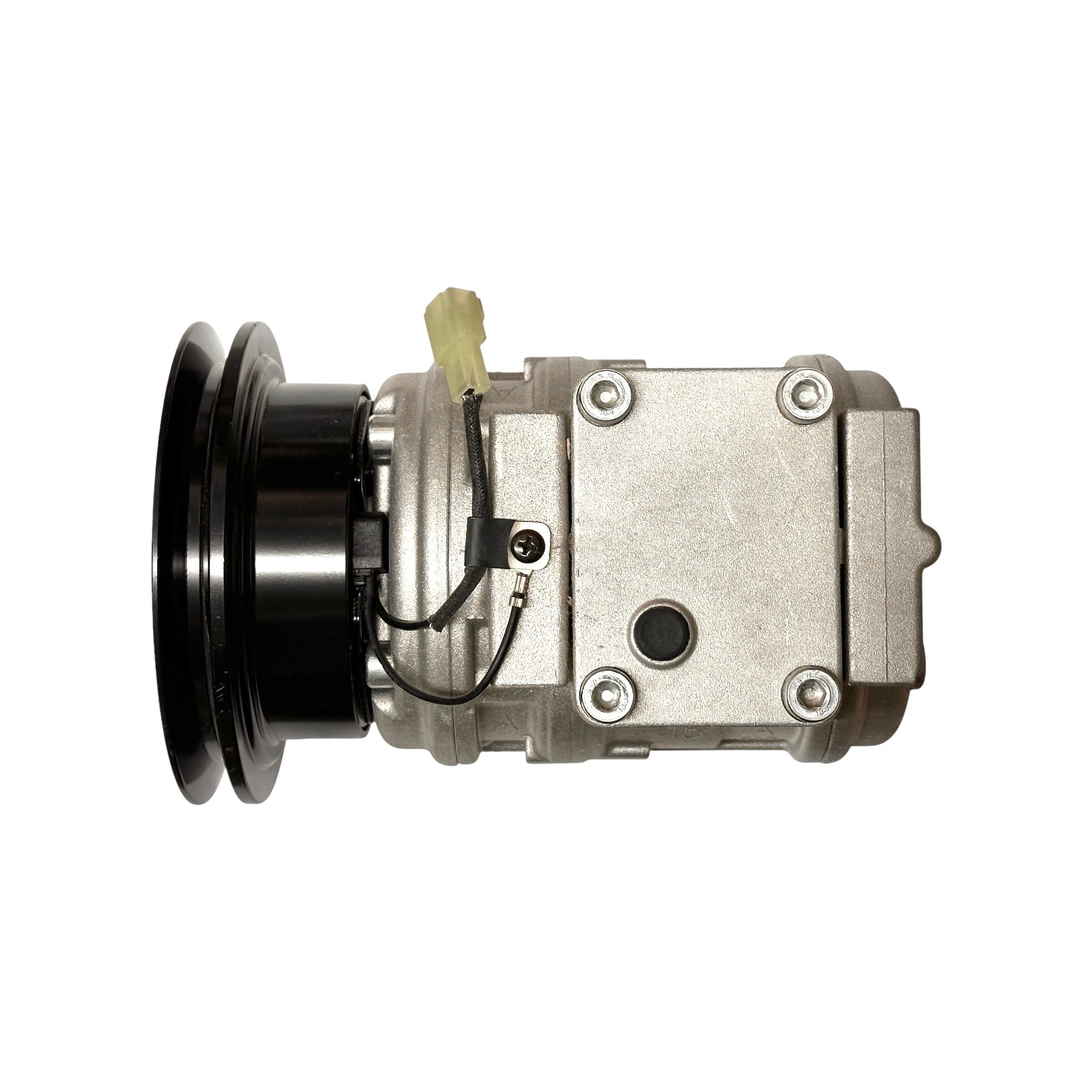

This compressor has the correct pulley and spacing for a 1KZ engine as equipped in the KZJ71, KZJ78 and related models (see images).

This compressor can also be used on earlier LJ71, LJ78, and LN series Hilux vehicles that have been converted by a properly equipped AC Tech from R12 to use R134a (or R12a replacement refrigerant).

• This compressor is pre-filled with PAG Oil for use with R134a.
• This compressor is NOT compatible with R12 systems.
• Note that earlier Prado models such as the LJ71 and LJ78 will need the system cleaned and then converted to use R134a refrigerant if it was originally using R12.

The R12 version of the compressor can be found here:
R12 version of this Compressor for LJ7x Series

•• Do not mix PAG Oil and Mineral Oil as in older R12 based systems found on many JDMs as they are incompatible and your compressor will fail (no warranty!).

• Pulley diameter is 143mm

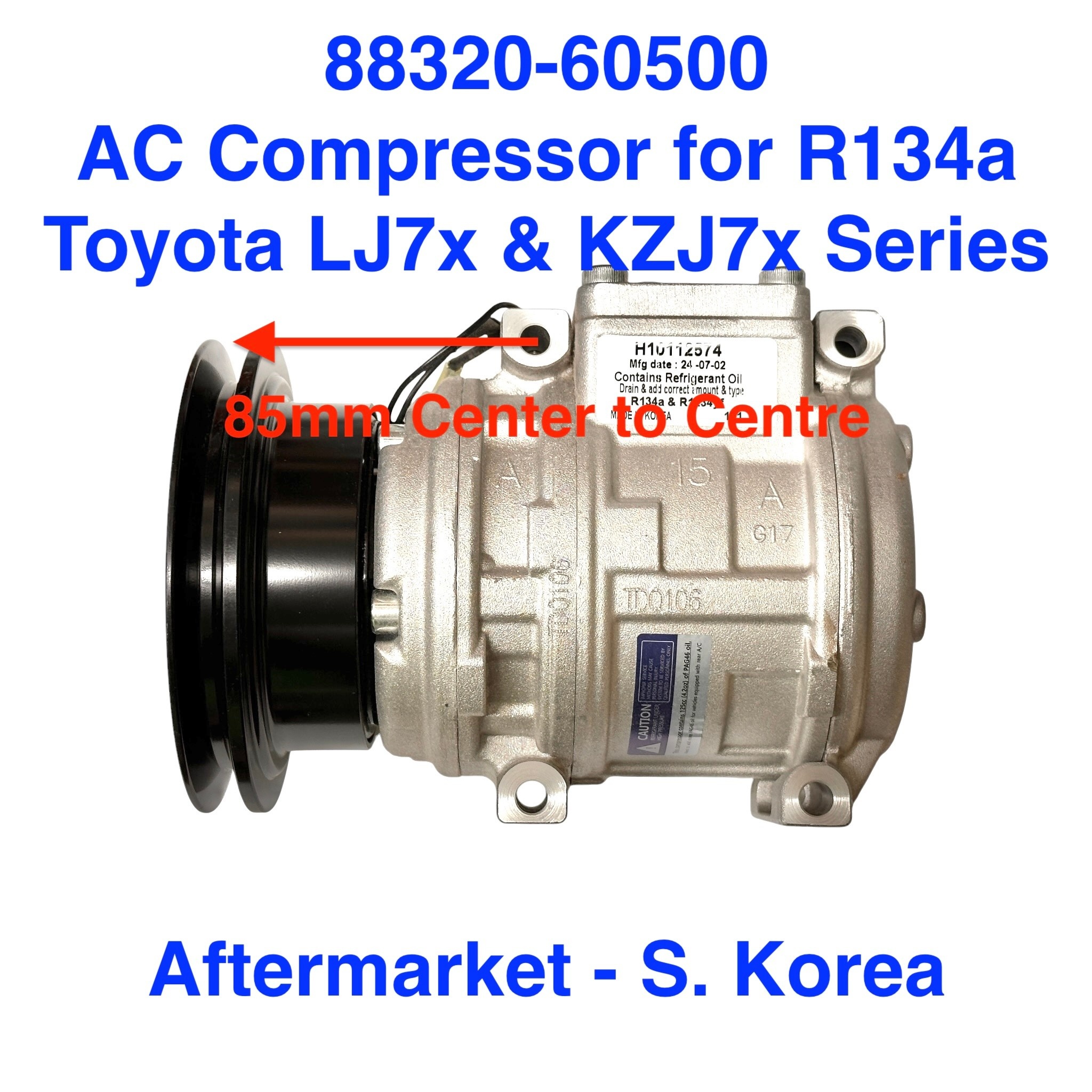

• Pulley center to the center of front upper bolt hole is 85mm

Toyota pns:
88320-60500 = compressor
88410-22480 = clutch assembly

Aftermarket - S. Korea

There are a number of other part numbers that may refer to this compressor as it is widely used on L (2L, 2LT, 2LT-E, KZ (1KZT, 1KZT-E) and other engine series and vehicles.
