Timing Component Kit (10 pcs) - Toyota 1HDT, 1HZ - 94T Belt + WP + VCG

Article number: RC-TK024 +WP+VCG
Availability: In stock (2)

10 Pc. Timing Belt Kit for the Toyota 1HDT, 1HZ, 1PZ engines (early to 05/1998)
with water pump & valve cover gasket

Installation Instructions from the Toyota Factory Service Manual

Suits: Toyota Land Cruiser HDJ80, HDJ81 & other models with the engines listed above with the earlier 94 tooth belt with the 1HDT engine

This kit also fits the 1HZ, and 1PZ engine using the 94T belt, but contains a turbo water hose for the 1HDT. There will be 1HZ, 1PZ specific kits released soon.

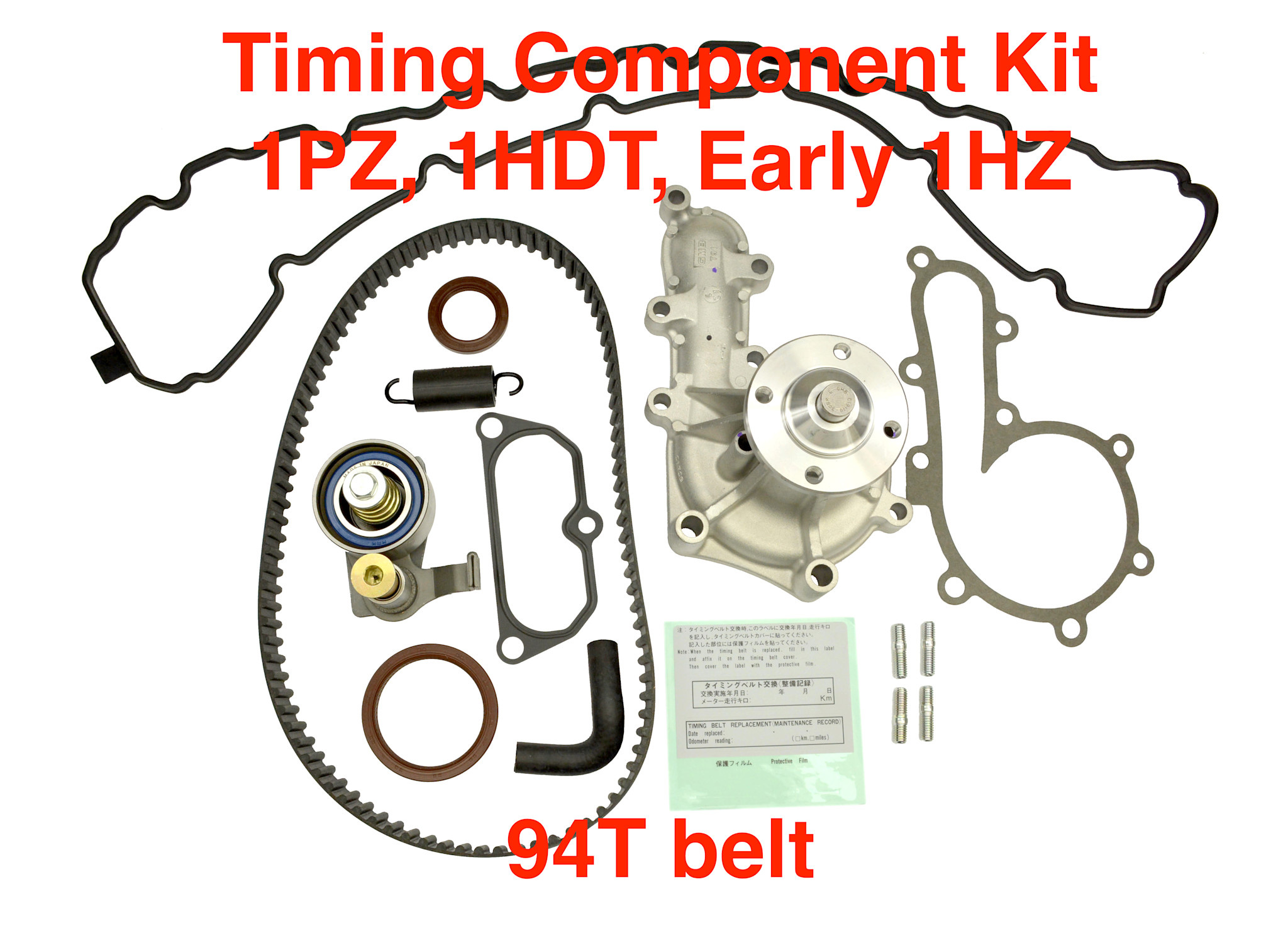

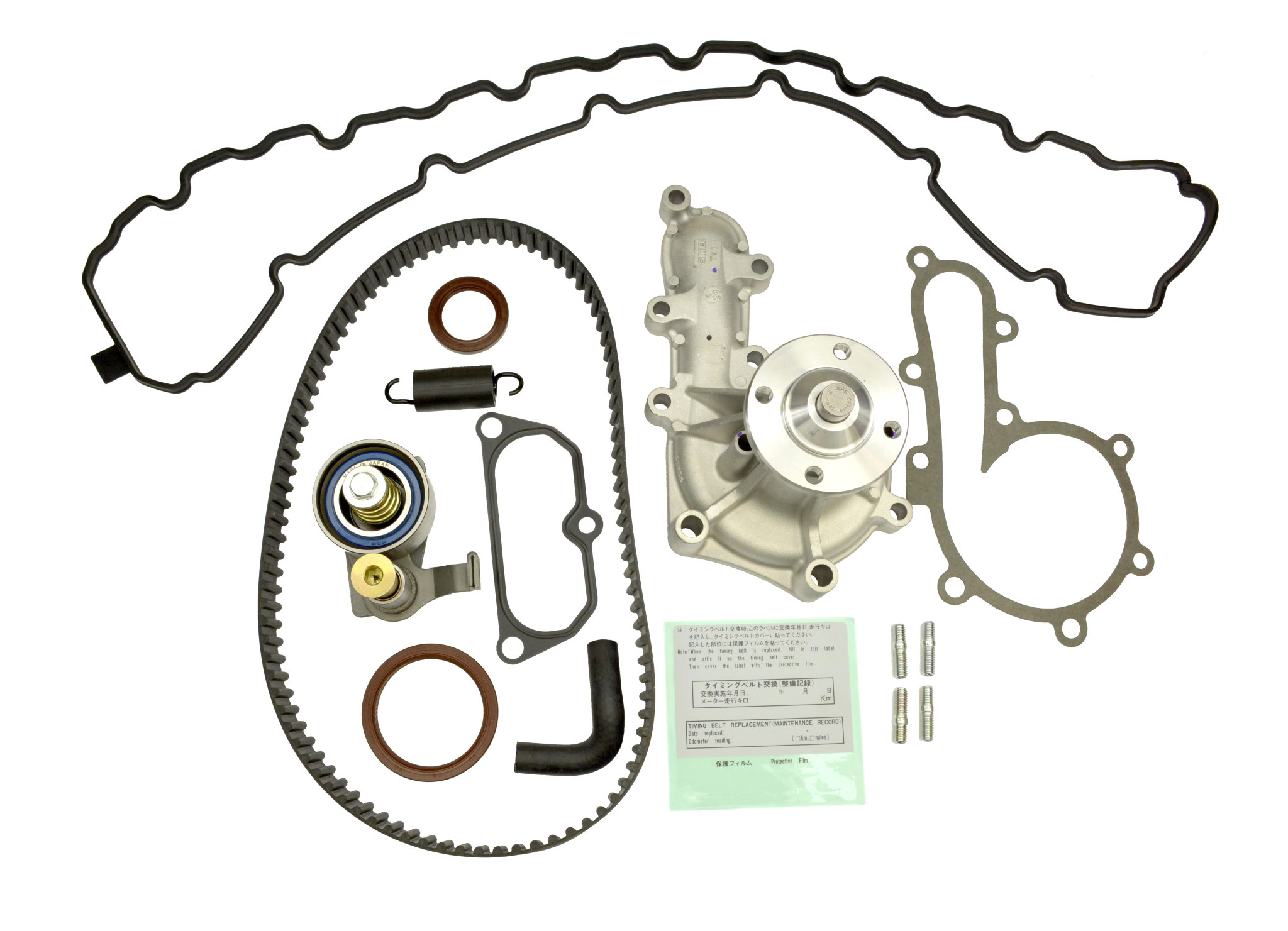

Kit contents:

  • 1x 13568-17010  Timing belt 94Tx25mm (same as 13568-19065)
  • 1x 13505-17010/11  Tensioner pulley
  • 1x 90507-27003  Tension spring
  • 1x 16100-19235  Water Pump (w/gasket & studs)
  • 1x 11213-17010  Valve Cover Gasket
  • 1x 90311-32017 / 90311-32019 / 90311-32020 Camshaft seal
  • 1x 90311-58006  Injection pump drive gear seal
  • 1x 17115-17010  Intake Crossover Gasket
  • 1x 16284-17010  Turbo Water Hose No. 1 for 1HDT
  • 1x 13564-10010  Belt change reminder label

Pro Tips:

When replacing your timing belt we always recommend that you also replace your tensioner pulley and spring - these parts are included in the kit.

The cam seal and injection pump gear seal are also worth doing, and come in the kit.

When replacing the timing components, it is also worth replacing the water pump at the same time. The water pump lifespan is only somewhat longer than the timing components, and the timing components need to be removed to replace the water pump, making this a worthwhile combination job.

Other parts you may want to consider:
- Thermostat with gasket 90916-03089
- Radiator Hoses for HDJ80 / HDJ81 / HZJ80 Upper Hose HDJ81 Lower Hose HDJ81

You will need two 4L jugs of concentrated coolant and distilled or reverse osmosis water to dilute your coolant.
A new rad cap is good idea too - 16401-71010

All Components from Japan except the valve cover gasket which is high quality aftermarket part from Taiwan. If you want Genuine Toyota valve cover gasket, let me know and it can be substituted for the difference in the price of the part (about C$10).

Note: Due to availability challenges the tensioner bearing may be from one of several different manufacturers, and may be different than the product photograph.


2022 04 05
