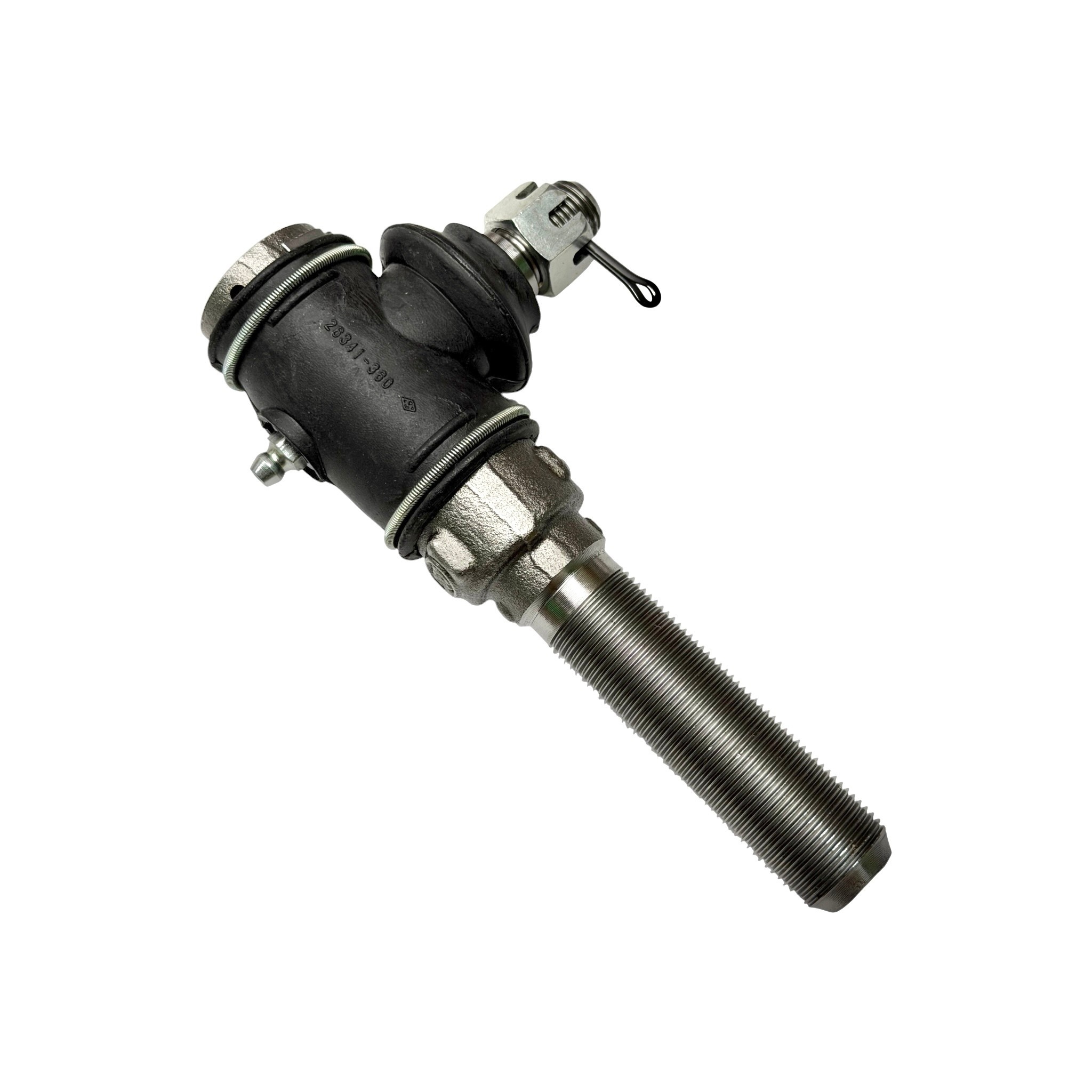

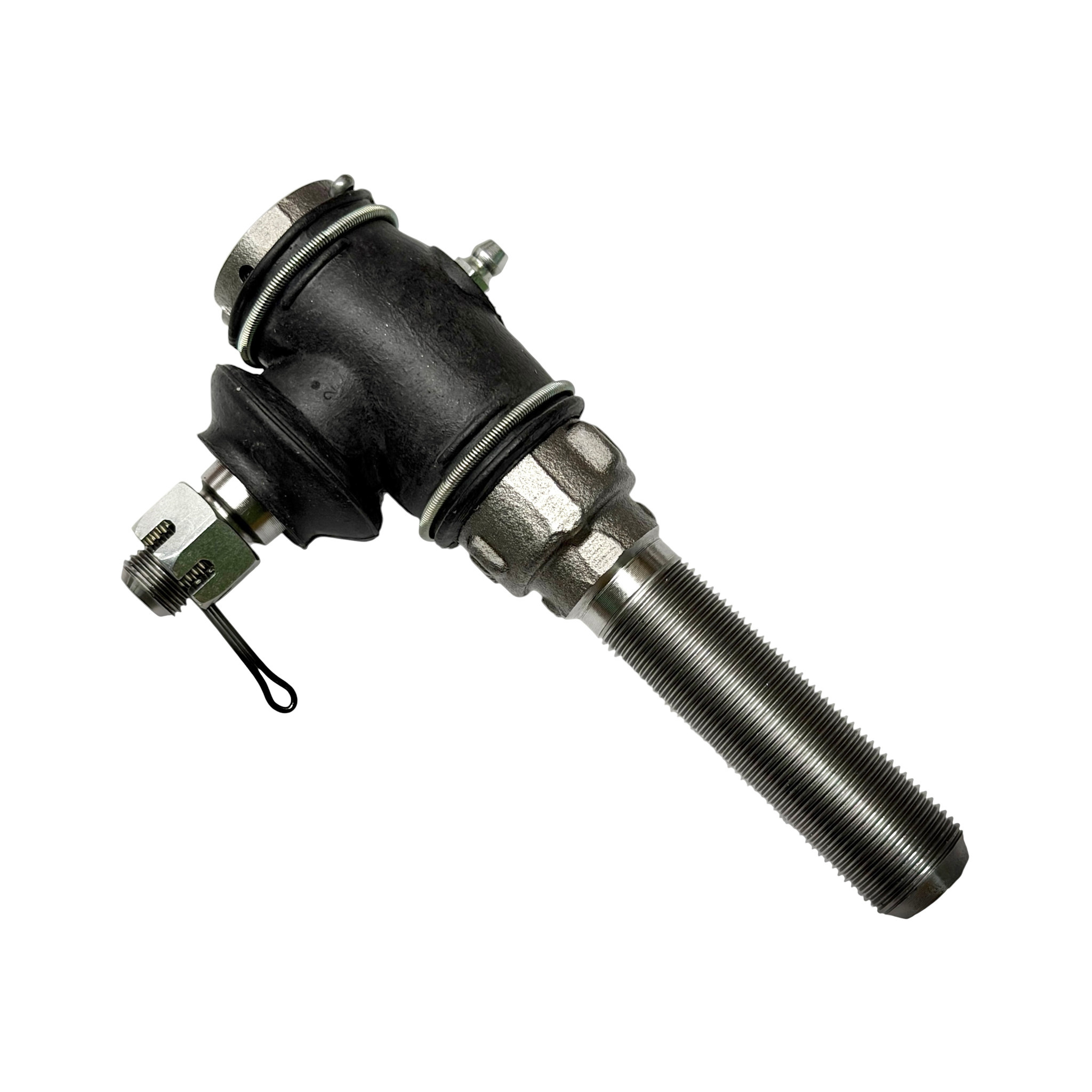

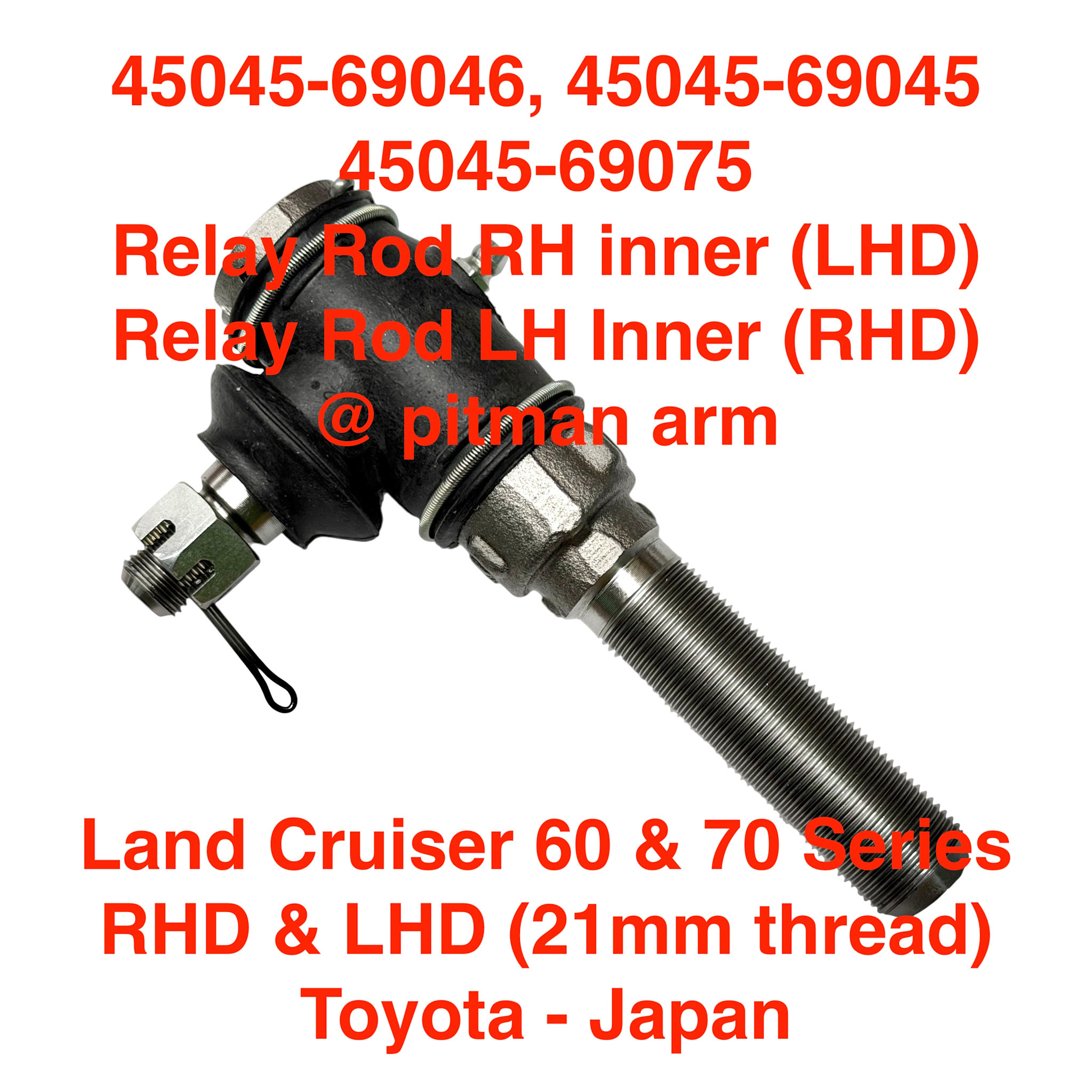

Tie Rod End, Relay Rod RH inner (LHD), LH Inner (RHD) @ pitman arm - Land Cruiser 60 & 70 Series RHD & LHD (21mm thread) - (45045-69075) 45045-69045

Article number: 45045-69045
Availability: In stock (2)

Relay Rod RH inner (LHD), LH Inner (RHD) - Land Cruiser 60 & 70 Series RHD & LHD (21mm thread) up to 1989

If this part is not in stock, 45045-69075 can be used in its place

Suits both LHD and RHD Toyota Land Cruiser 60 & 70 Series up to 1989.

Relay Rod End, also called a Drag Link End or an Inner Tie Rod End.

If your relay rod end housing is in good condition, you can use the DLK2 kit (also listed in suggested items) to rebuild the inner components.

A re-useable end can be distinguished from a worn-out end most often by the condition and wear in the keyhole shape where the ball stud comes out of the part. If worn or questionable, then replace the entire part since worn steering components are potentially very dangerous.

Toyota pn:

also crosses to...

Alternate Toyota pn:
45046-60H01 OEM relay rod end comes with tube
45046-60H04 OEM relay rod end comes with tube

The parts that suit a RHD HD 70 series up to the end of the 1989 model year:
Tie rod end RH 45047-69065
Tie rod end LH 45046-69105
Relay rod end RH 45045-69045
Relay rod end LH 45044-69075

Sankei 555 - Japan


updated 2021 01 16
tie rod end, relay rod, drag link
