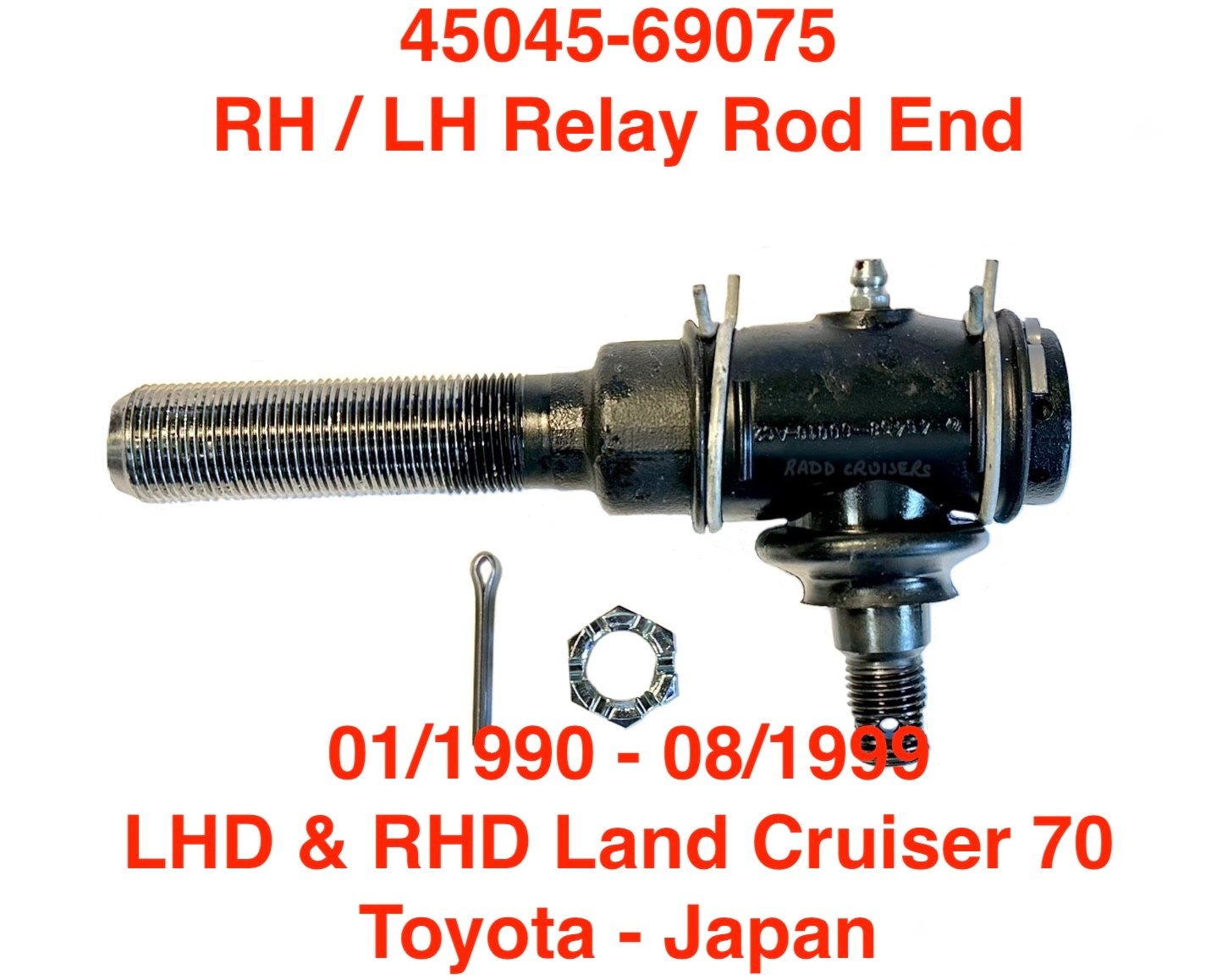

Relay Rod End - RH inner (LHD) & LH Inner (RHD) - Land Cruiser 60 & 70 Series RHD & LHD (21mm thread) - (45045-69045) 45045-69075 OEM

Rod End, Relay Rod RH inner (LHD) & LH Inner (RHD) 21mm threads
- connects to the tie rod end on the opposite side of the steering box

Please read the information included below for applications this part fits.

Relay Rod End, also called a Drag Link End or an Inner Tie Rod End.

Suits Land Cruiser 60 & 70 Series RHD & LHD (21mm thread) - relay rod ends have 21m threads and tie rod ends have 23mm threads on these models.

If your relay rod end housing is in good condition, you can use the DLK2 kit (also listed in suggested items) to rebuild the inner components.

A re-useable end can be distinguished from a worn-out end most often by the condition and wear in the keyhole shape where the ball stud comes out of the part. If worn or questionable, then replace the entire part since worn steering components are potentially very dangerous.

Toyota:
45045-69075 - part number of this item
45045-69045 - the above part number (-69075) replaced this item
45045-69046 - the above part number (-69075) replaced this item

Toyota - Japan

Alternate Toyota pn:
45046-60H01 OEM relay rod end this part number describes an assembly that comes with the tube
45046-60H04 OEM relay rod end this part number describes an assembly that comes with the tube

The parts that suit a RHD HD 70 series up to the end of the 1989 model year - the other parts you needs for a full set include:

Tie rod end RH 45047-69065
Tie rod end LH 45046-69105
Relay rod end RH 45045-69045
Relay rod end LH 45044-69075
