Article number: | 36231-60021 |
Availability: | Out of stock |

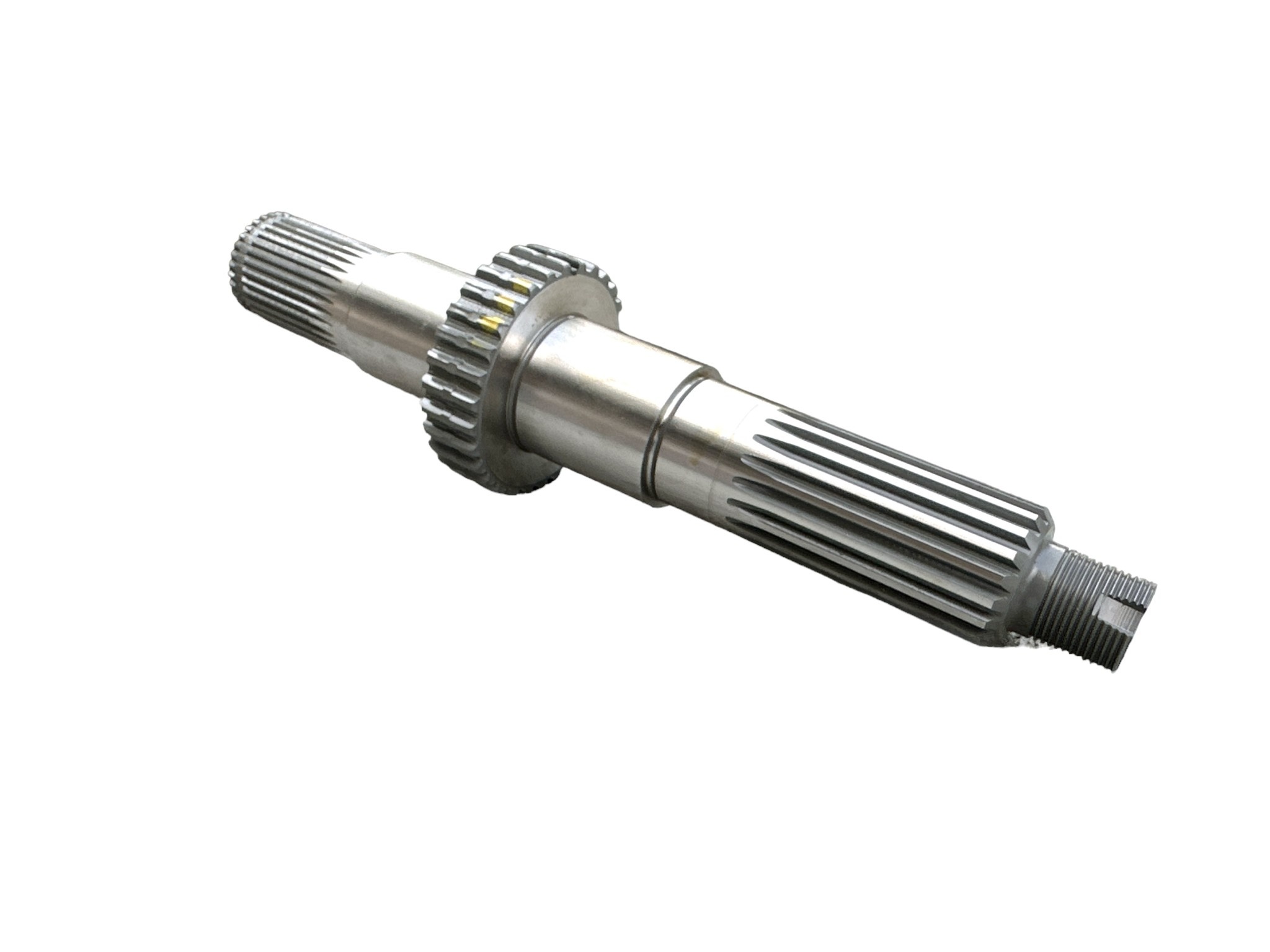

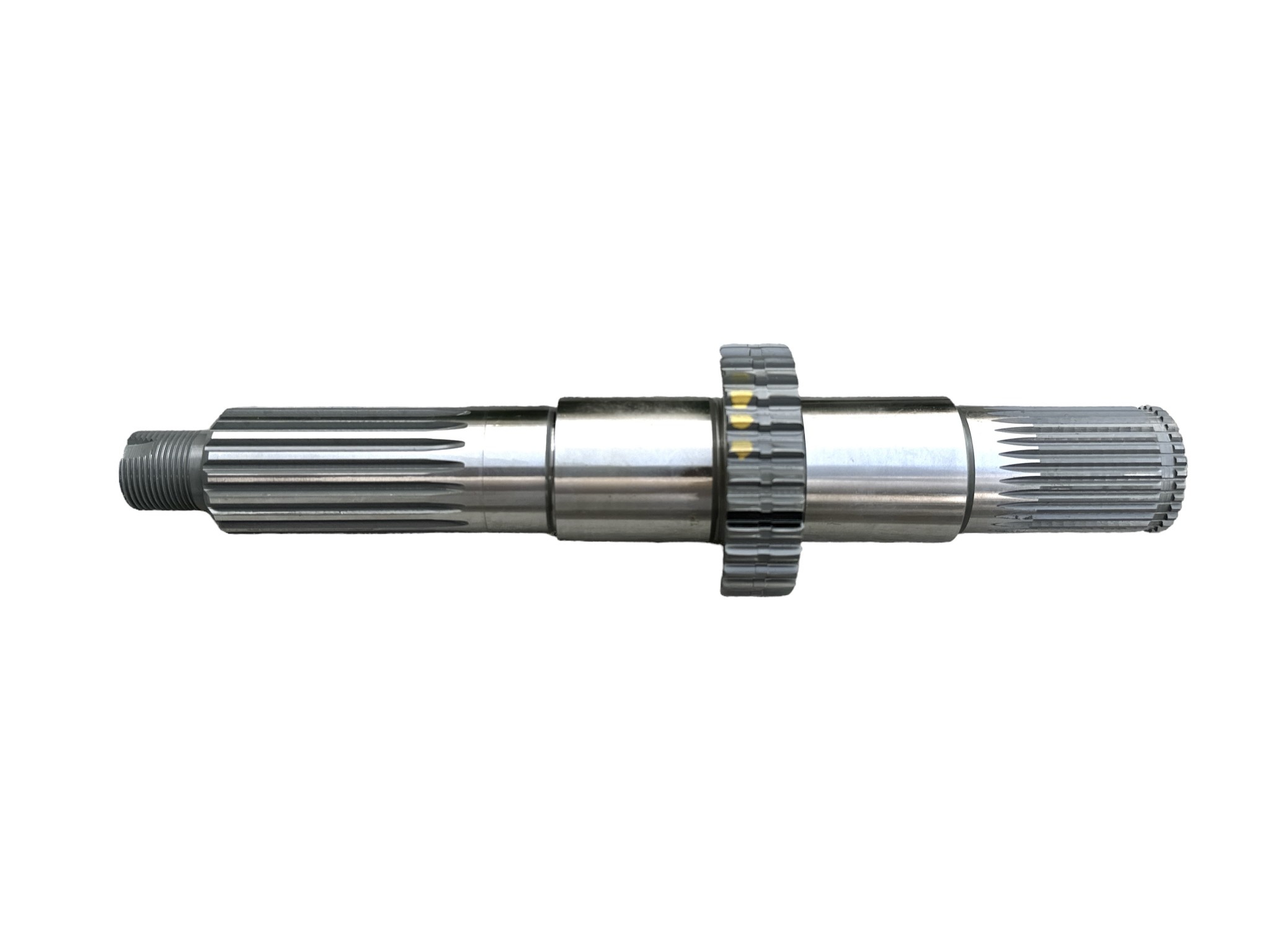

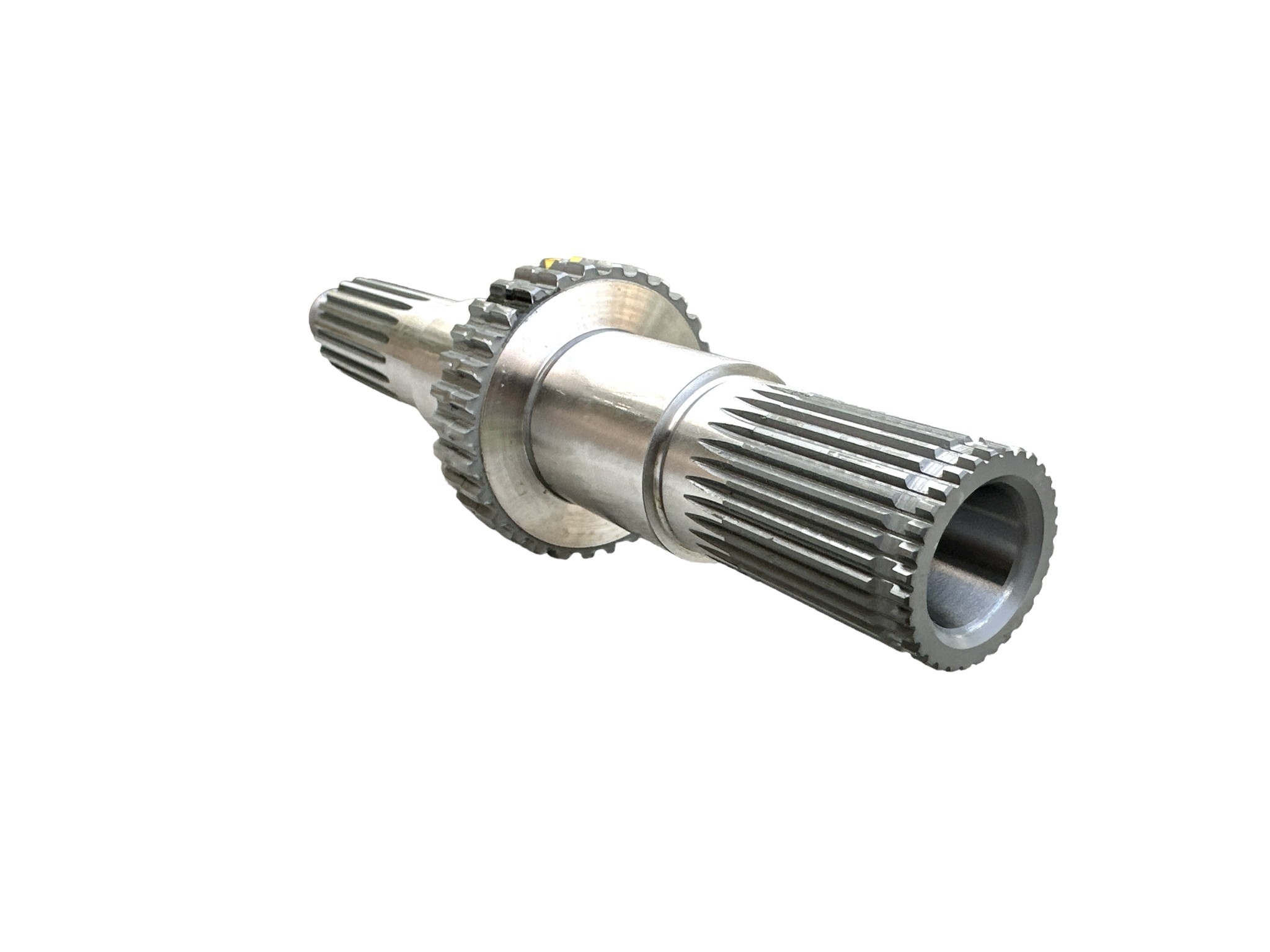

This shaft is for most split case transfer cases and for those who are using lower gear ratio aftermarket gears.

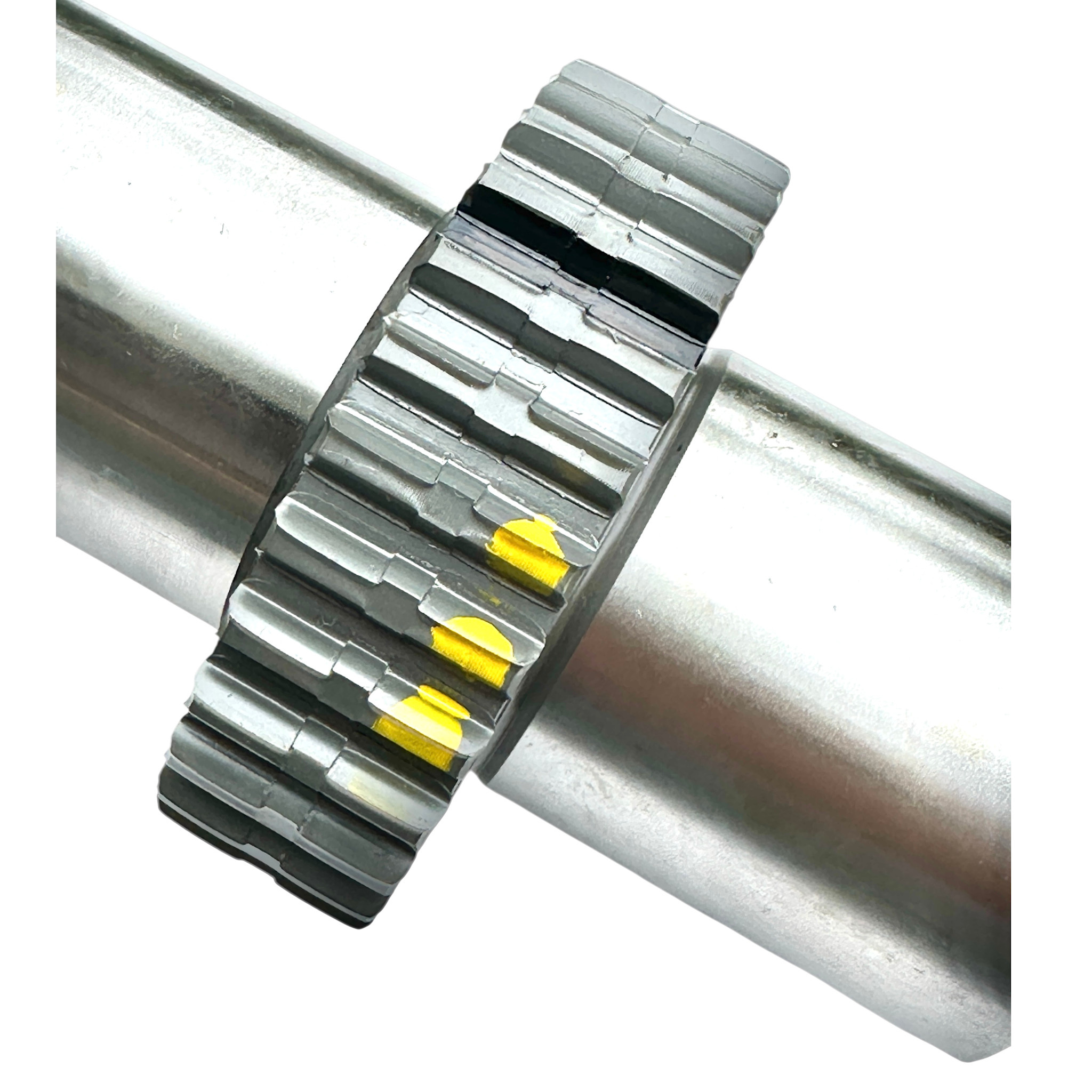

NB: there is a back cut on the shift clutch dog teeth - some models do not have this.
See product images for details.
In some markets, a different output shaft was used with automatic transmissions, and these have no back cut on the shift clutch dogs and also use different gears that have roller bearings under the gears instead of bushings. I have provided more details at the bottom of this listing with the part numbers.
Toyota pn:
36231-60021
Toyota OEM / Aisin - Japan
Details for split case transfer cases for some (not all) that were found behind automatic transmissions:
These parts are all available by special order - if you require these parts, please send an email
36231-60050 = transfer case output shaft for Automatic transmissions - but there is no back cut on the shift dogs... the back cut teeth are required for aftermarket gears.
36235-60020 = Shift clutch collar for low/high gear
36242-60130 = low speed gear, Auto Trans
36241-60100 = high speed gear, Auto Trans
90364-40001 = needle roller bearing for low and high gear
