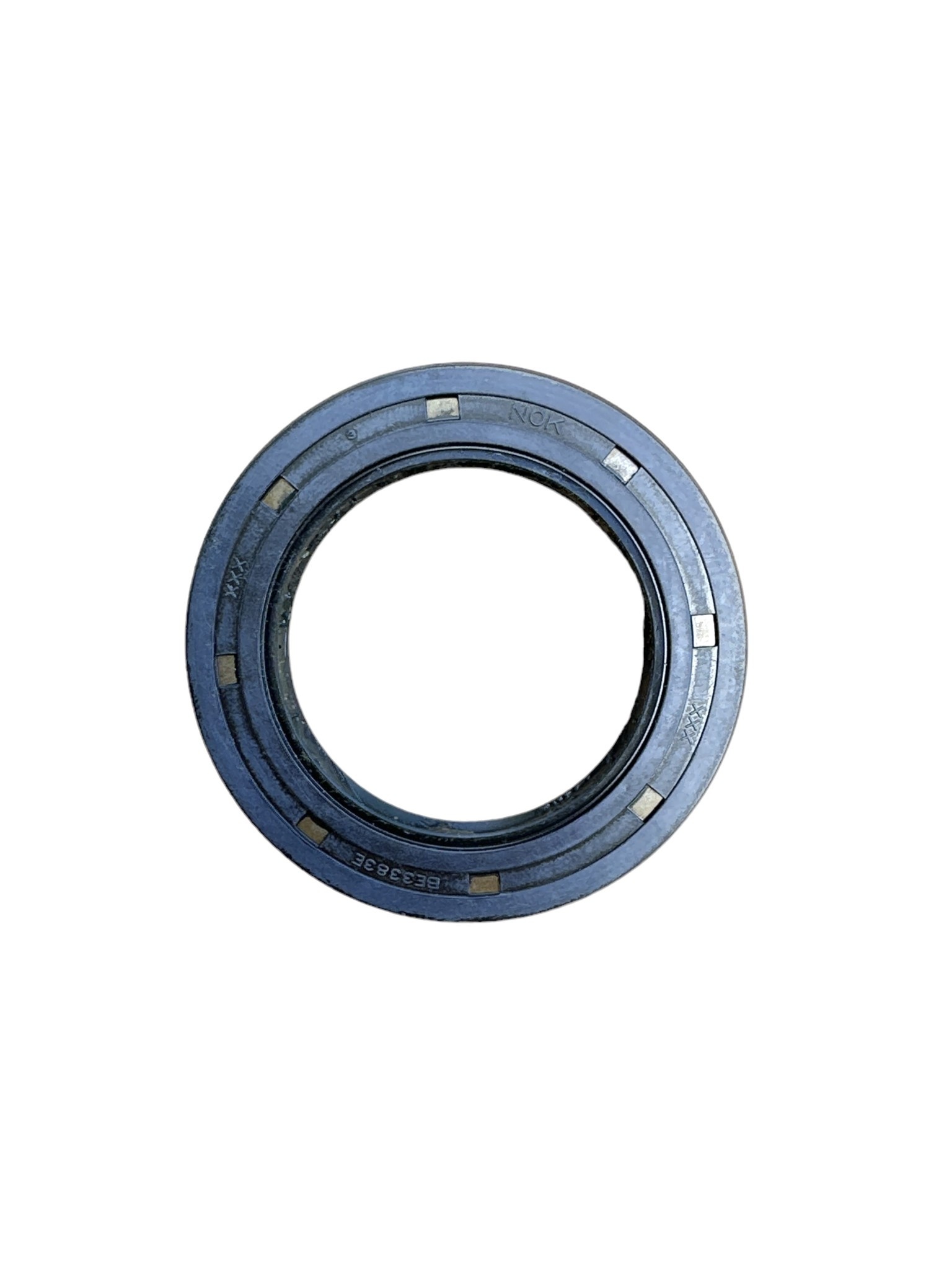

Seal, Intermediate/Transmission Output - Land Cruiser Split Transfer Case - 08/1986-12/1987 48x72x8.5 - 90311-48012

C$29.98
Article number: 90311-48012
Availability: In stock (2)

Seal, Intermediate/Transmission Output - Land Cruiser Split Transfer Case - 08/1986-12/1989

Dimensions: 48x72x8.5mm

Toyota pn:
90311-48012

Toyota (NOK) - Japan

Equivalent parts:
Toyota 90311-48007 = 48x72x8.5mm
Musashi T1162 = 48x72x8.5mm - this seal interchanges with both 90311-48012 and 90311-48007

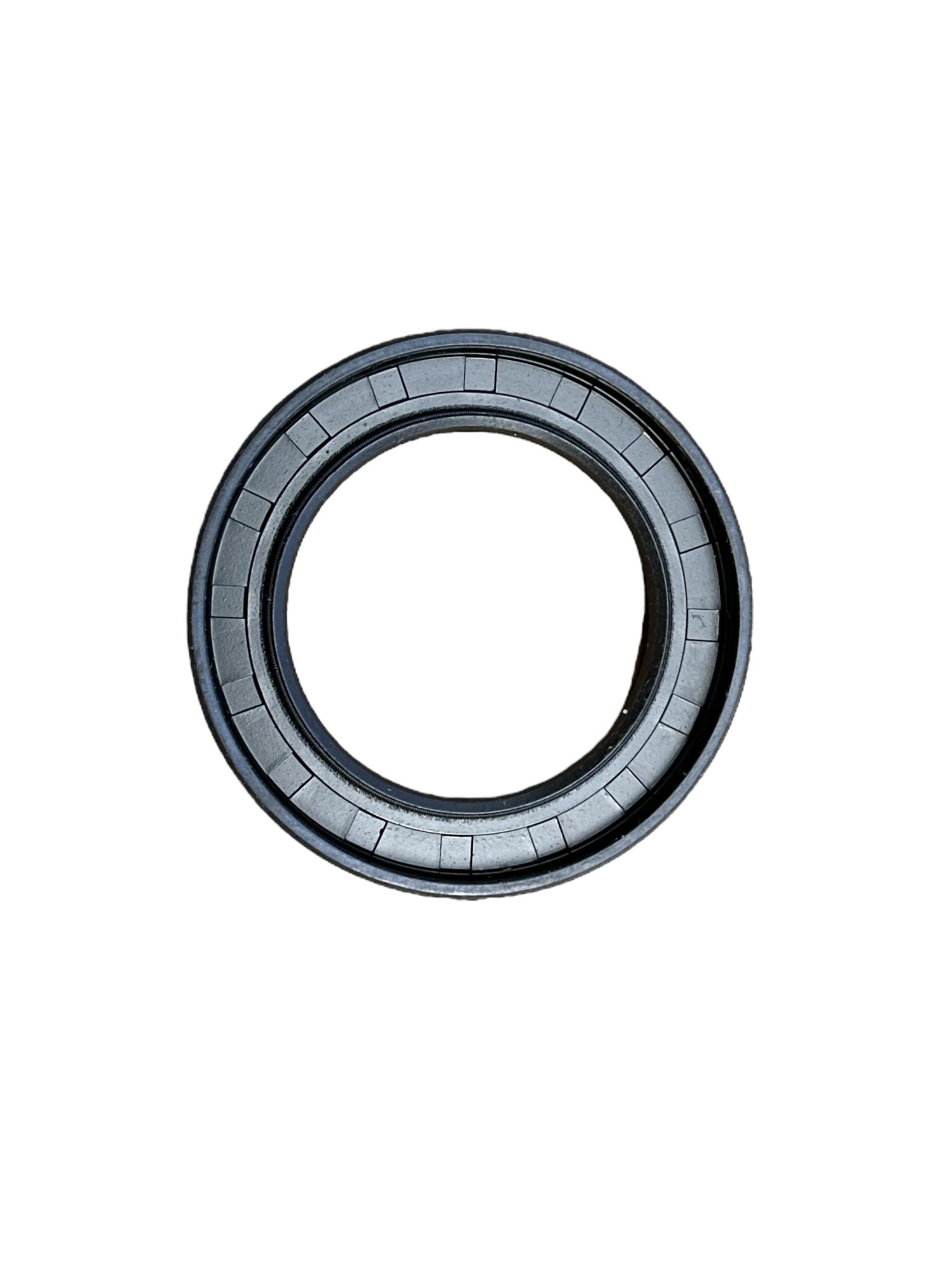

Note: in later versions of the Land Cruiser split transfer case, this seal was replaced with a two-sided seal with two sets of back to back sealing lips supported by two tension springs and dimensions 48x72x11. This updated seal does offer better sealing and reduced oil movement between the transfer case and transmission.
See part number: 90316-48003











9031148012
9031148007
T1162
