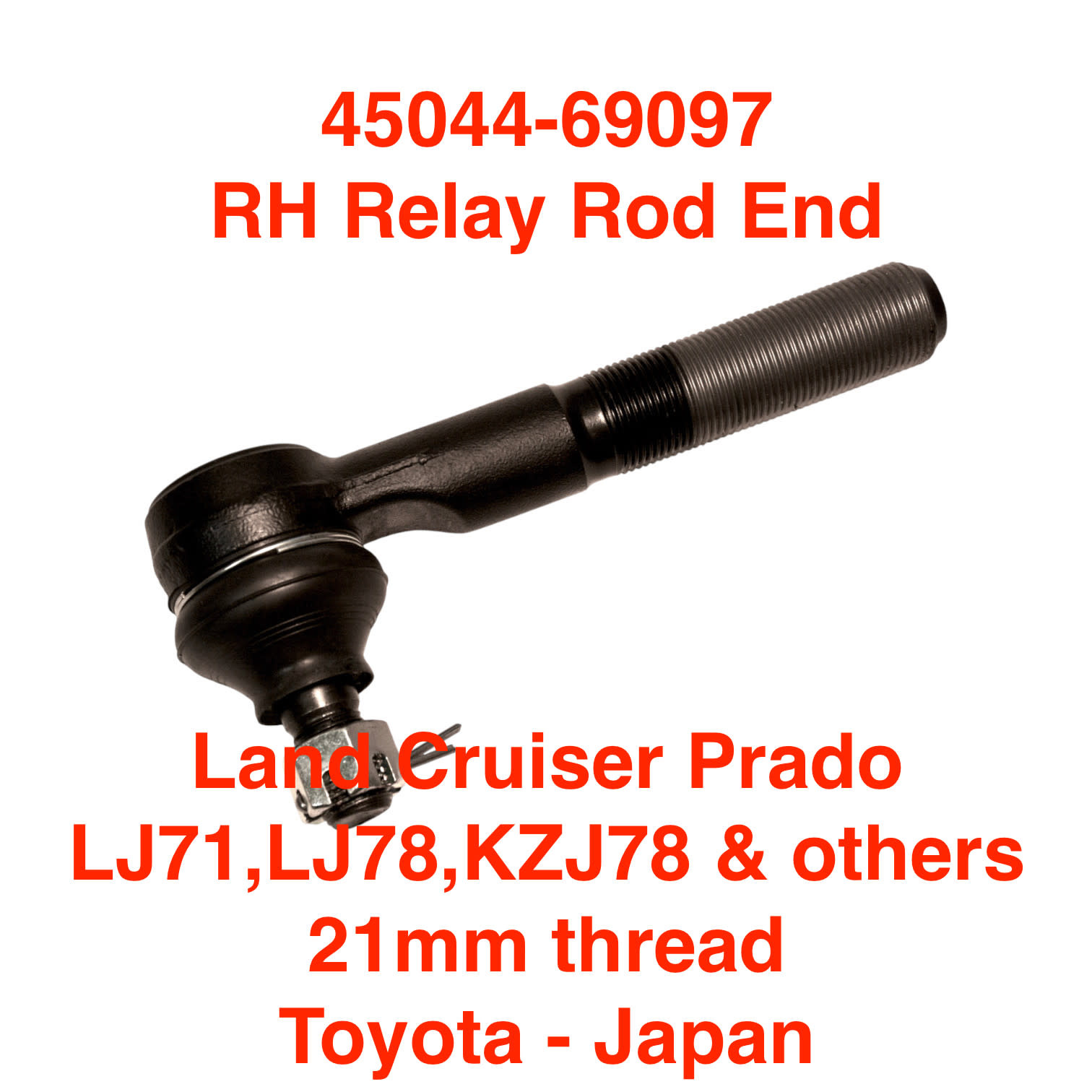

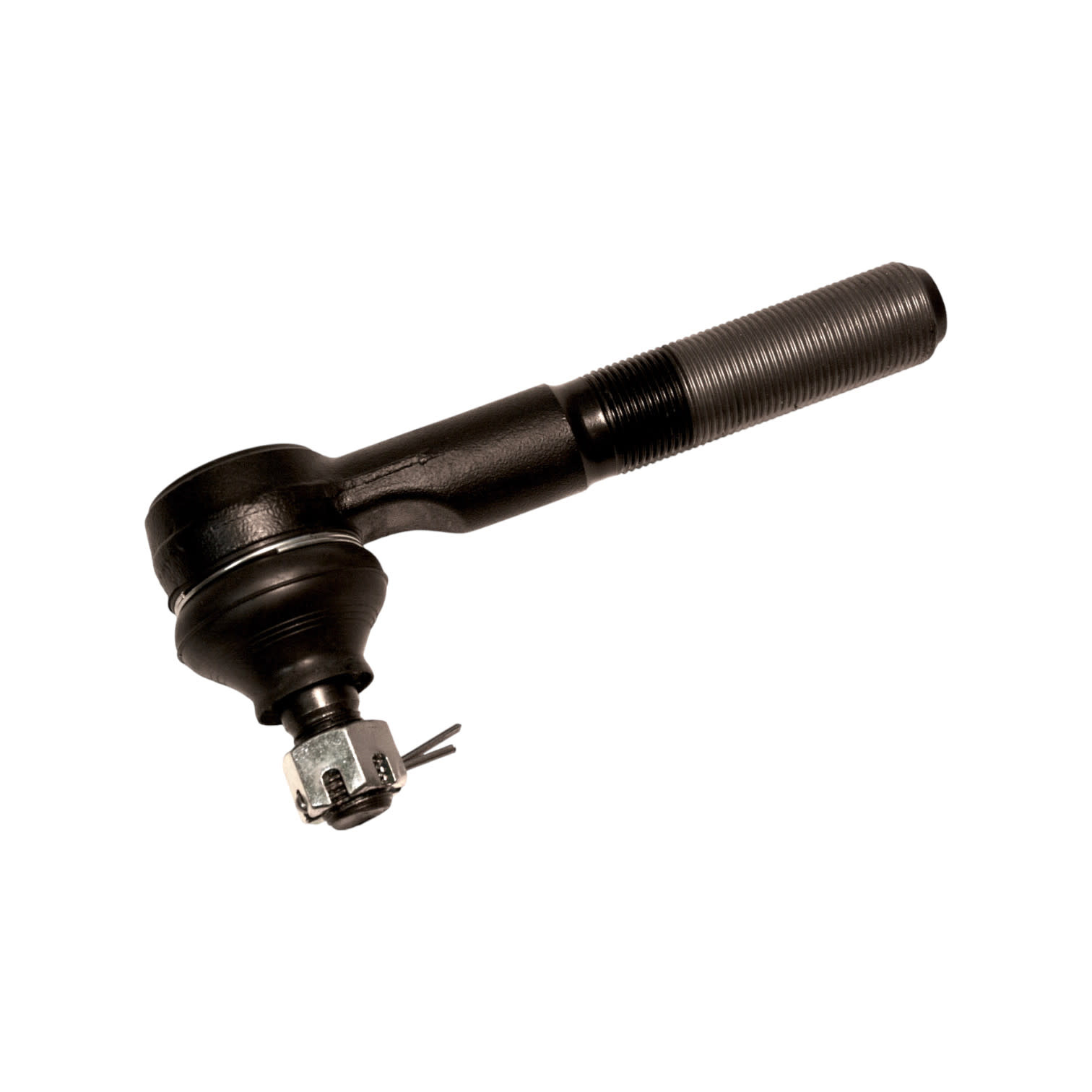

Relay Rod End, RH Land Cruiser Prado LJ78, KZJ78 (Genuine) 21mm thread

C$140.56
Article number: 45044-69097
Availability: In stock (1)

Relay Rod End, Right Hand side for RHD Land Cruiser Prado models LJ71, LJ78, KZJ71, KZJ78 & others. 21mm threads.

The Relay Rod is also called a Drag Link, and connects the pitman arm at the steering box to the steering knuckle on the opposite side. Relay rod ends are sometimes called outer tie rod ends or drag link ends.

The Tie Rod connects the steering knuckles together. Tie rod ends are also called inner tie rod ends.

Toyota pn:
45044-69097

The other parts in this steering system are:

RH Relay Rod End 45044-69097 (21mm threads)
LH Relay Rod End 45045-69065 (21mm threads)

RH Tie Rod End 45047-69067 (23mm threads)
LH Tie Rod End 45046-69127 (has steering damper mounting point) (23mm threads)

Toyota - Japan



8708.94

2021 01 16
