Rear Wheel Bearing Kit - Land Cruiser Prado LJ78, KZJ78 - 1990-??

Rear Wheel Bearing Kit - for Land Cruiser Prado models such as the LJ71, LJ78, KZJ78, KZJ90, VZJ90, RZJ90, KZJ95R, VZJ95R, RZJ95 & related models

Suits semi-floating rear axles.
One kit used per side.

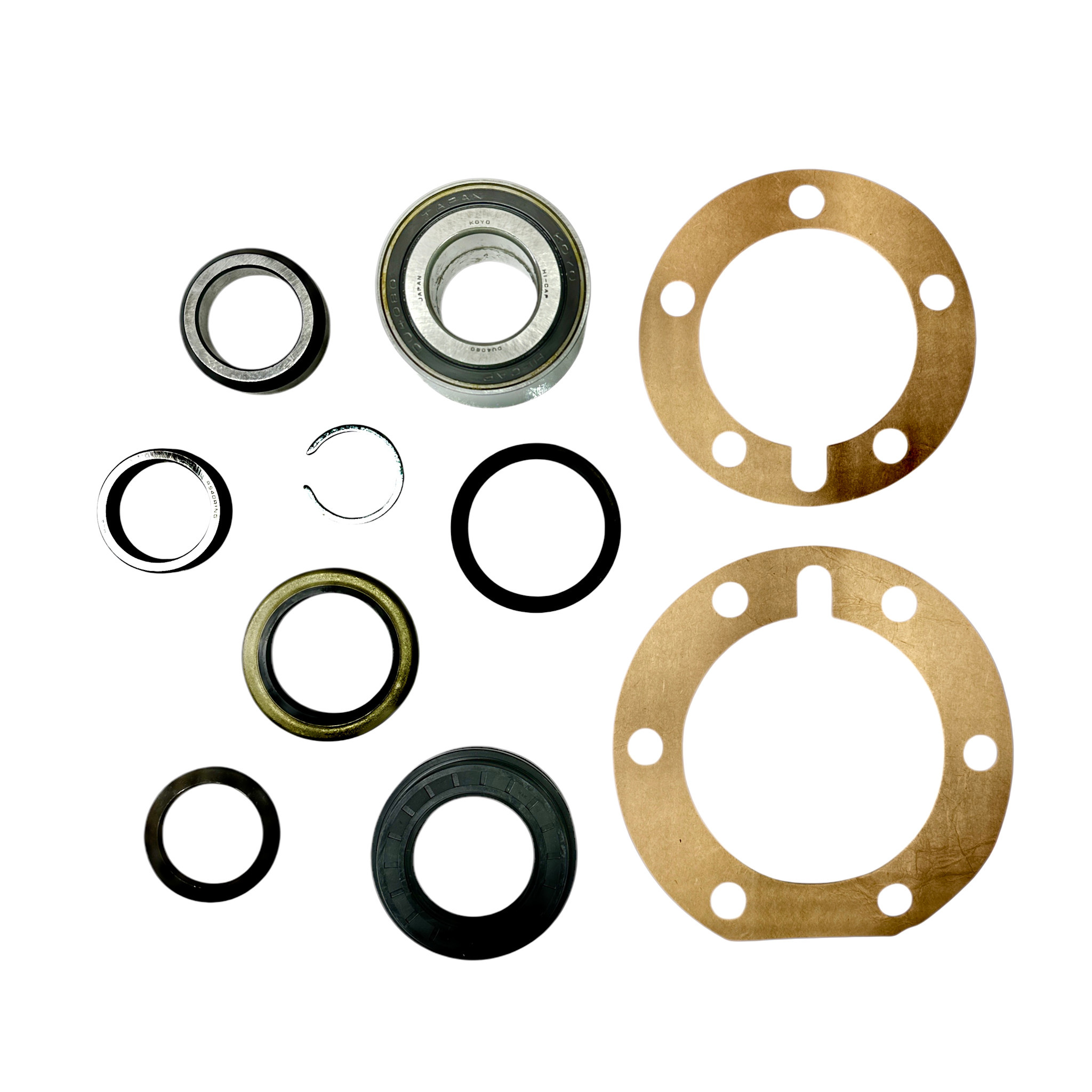

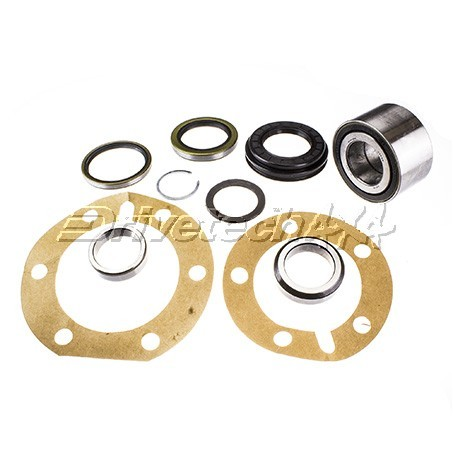

Parts in kit - from the inside out:
90520-36045 Snap Ring
42423-60020 Bearing Retainer Ring
90310-58002 Inner Oil Seal
90208-40002 Washer Plate (spacer)
90369-40003 Wheel Bearing (Koyo DU4080)
90301-78001 O-Ring for bearing case
90313-48004 Outer Axle Shaft Seal
42443-60010 Gasket (paper), Brake Oil Deflector
42444-60020 Gasket (paper), disc brake rotor

*Koyo Japanese-made bearings supplied in the kit

Kit part number:
DT-AK28

Made in Japan

Used in the following models & others (this listing is not complete by any means):

Toyota Land Cruiser Prado KZJ90R, KZJ90W, KZJ95R... TD 3.0L 1KZ-TE SOHC 8v Turbo Diesel 4cyl 92kW SUV AWD [03/00 - 02/03]

Toyota Land Cruiser Prado RZJ90, RZJ95 2.7L 3RZ-FE DOHC 16v Petrol 4cyl 110kW SUV AWD [07/96 - 05/02]

Toyota Land Cruiser Prado VZJ90R, VZJ90W, VZJ95R... i 24V 3.4L 5VZ-FE DOHC 24v Petrol V6 131kW SUV AWD [07/96 - 02/03]
