Rear Hub Wheel Bearing Seal / Service kit - Land Cruiser 70 & 80 Series Full Floating axle/rear end, 1990 - on

Rear Wheel Bearing and Hub Seal Kit - Land Cruiser HD 70 & 80 Series with Full Floating Rear Axle, Disc Brakes & 6 bolt wheels from 1990-on

This kit does not suit light duty Land Cruiser Prado and related models such as the LJ71, LJ78, KZJ78.

• If you have a later vintage 70 Series, or 100 Series, check the Kit Contents list vs what your particular models uses.
• Later models will use a different axle shaft seal and gasket.

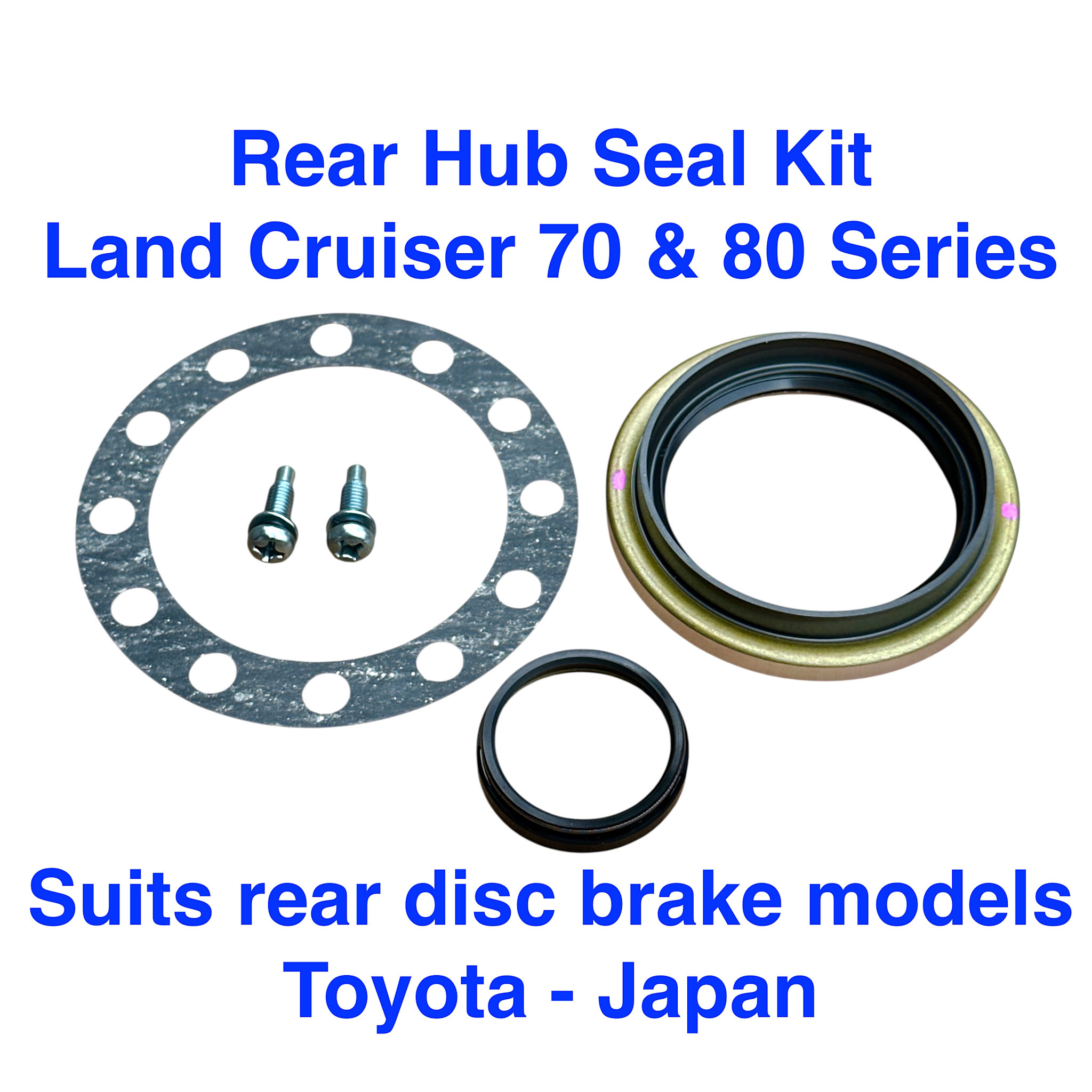

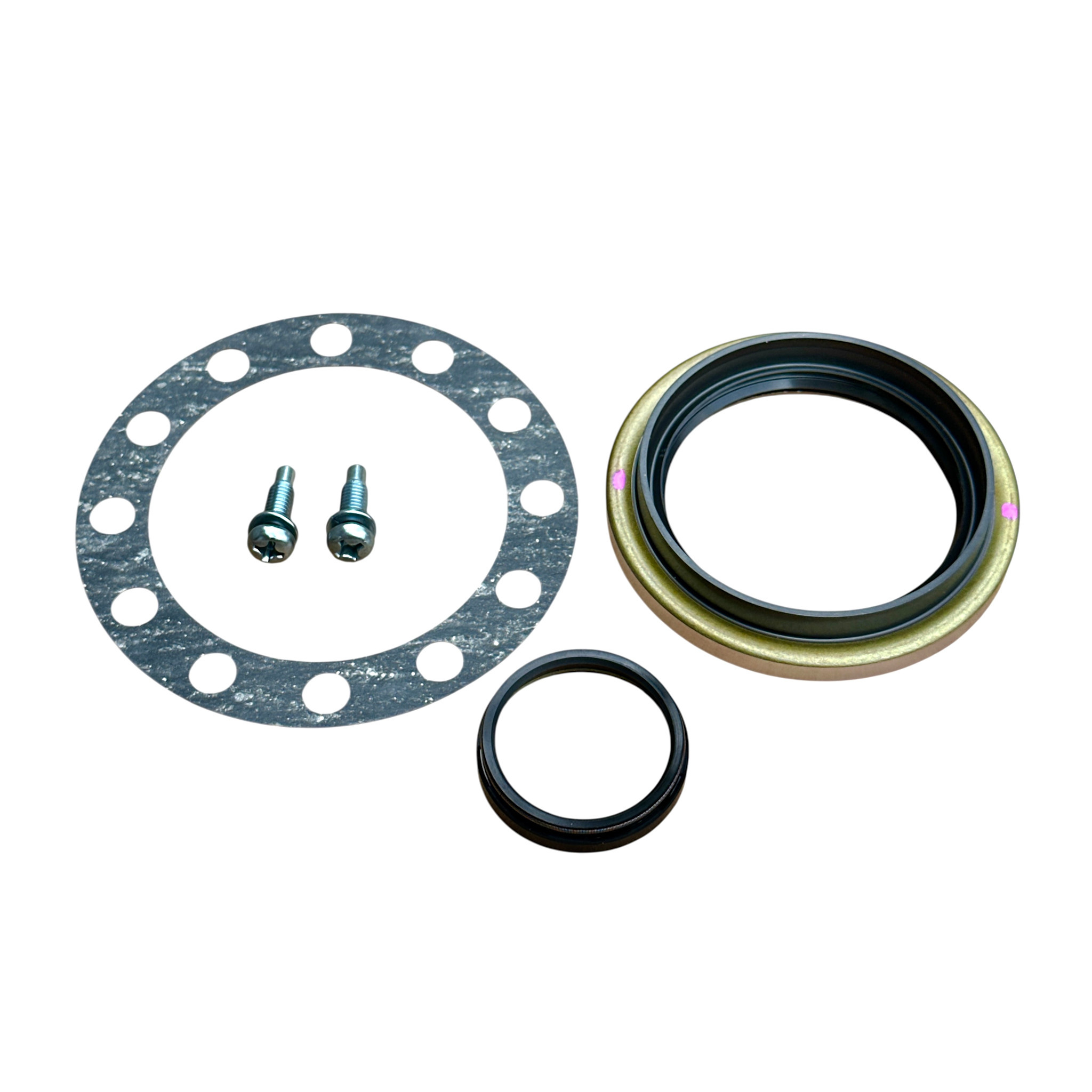

Kit Contents:
• 1x 90311-62002 Wheel Bearing Seal, Rear (axle hub)
• 1x 90310-35001 Axle Shaft Seal, Inner (fits into spindle)
• 1x 43422-60040 Multi-Hole gasket for axles with 8mm studs
• 2x 42419-60011 Screws for bearing adjustment nut

Looking for a kit with both the seals and the wheel bearings...? Try KWB5022

Service Notes: The 90311-62002 wheel bearing seal (hub) is different than the 90311-62001 in that it has a lip that protrudes into the dust ring that is bolted with the backing plate.

The 90311-62001 seal is used in combination with a large outer dust seal 90313-93001 and is not used with rear disc brake equipped Land Cruisers as found on HD 70 Series and 80 Series.

RADD Cruisers pn:
RC-HSK30
HSK30
