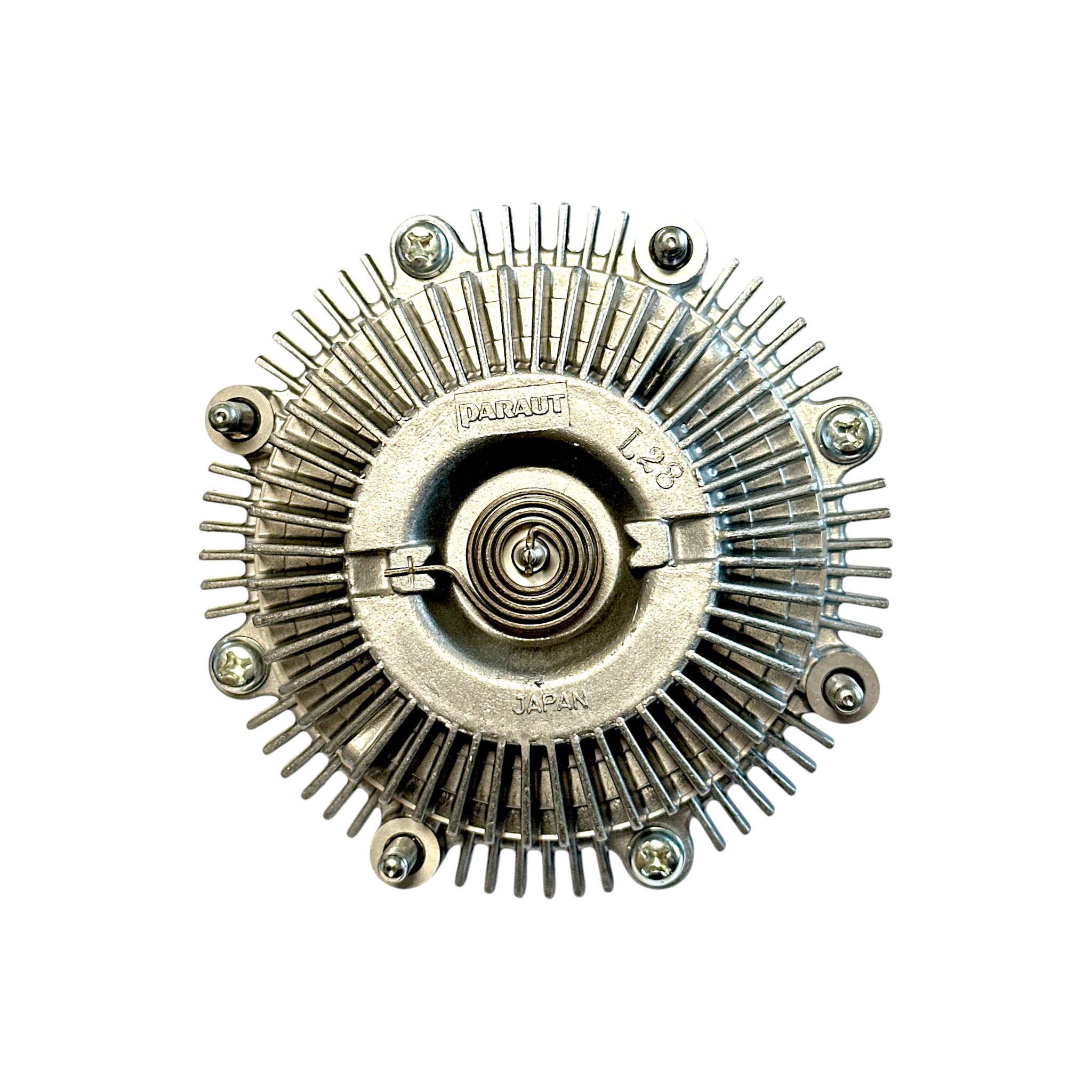

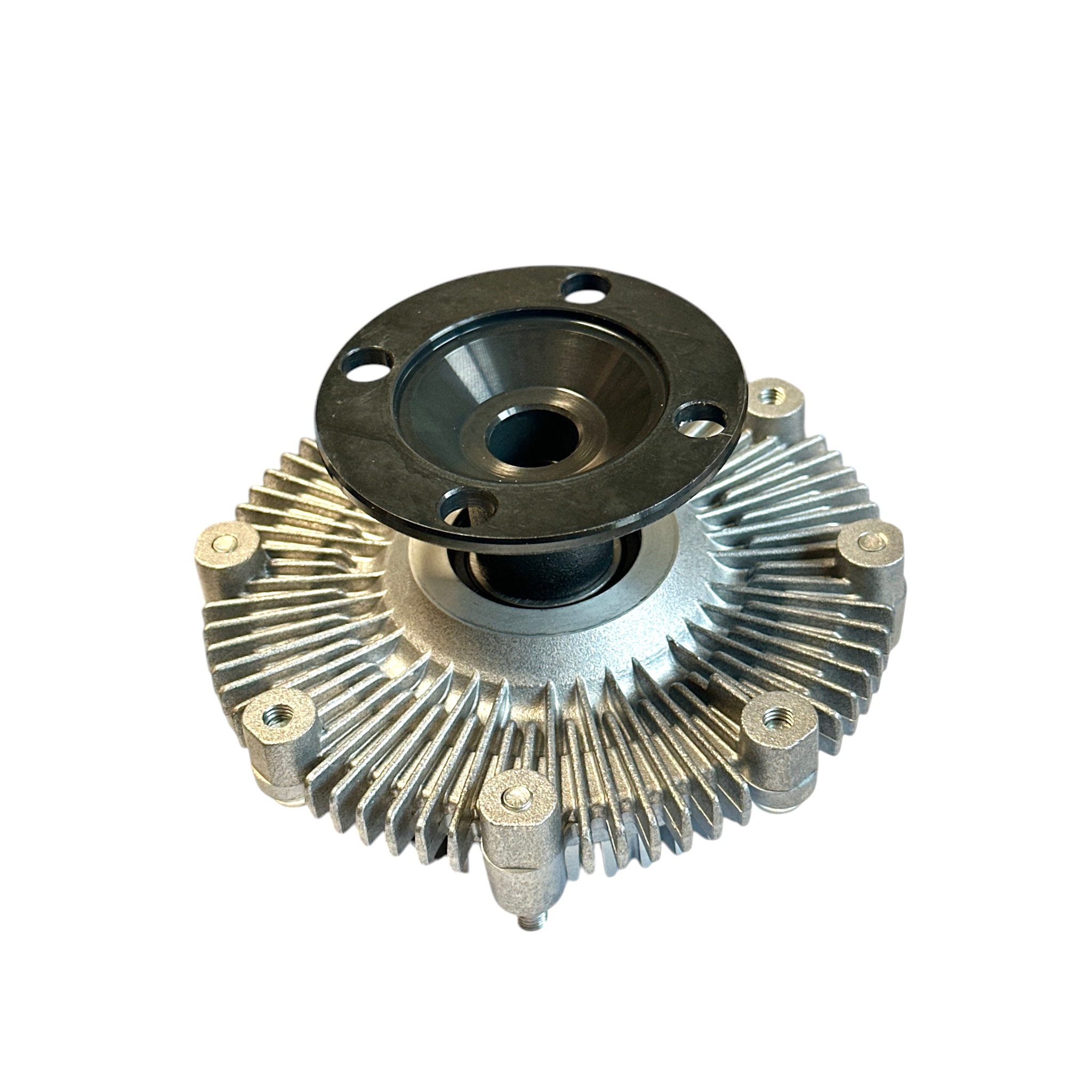

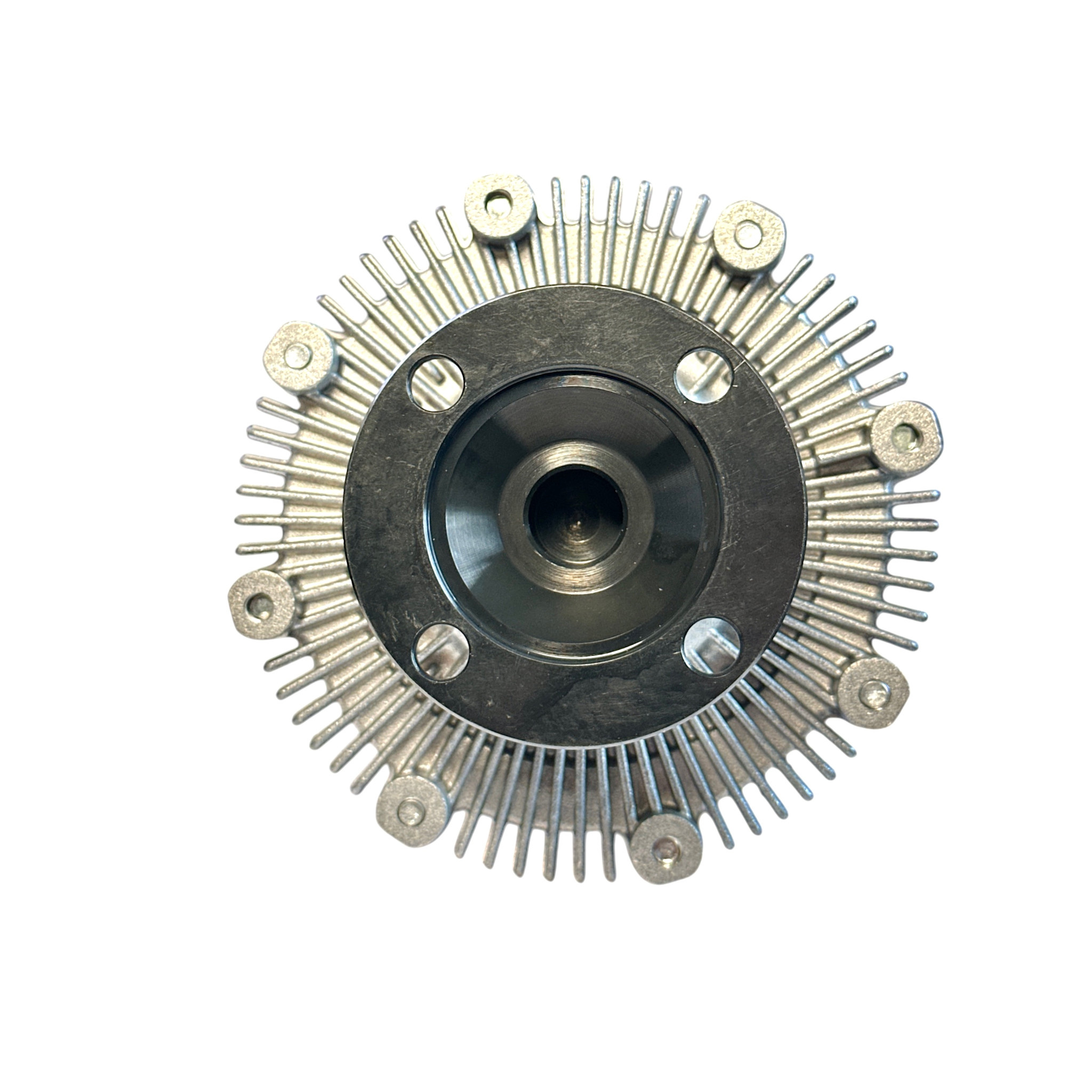

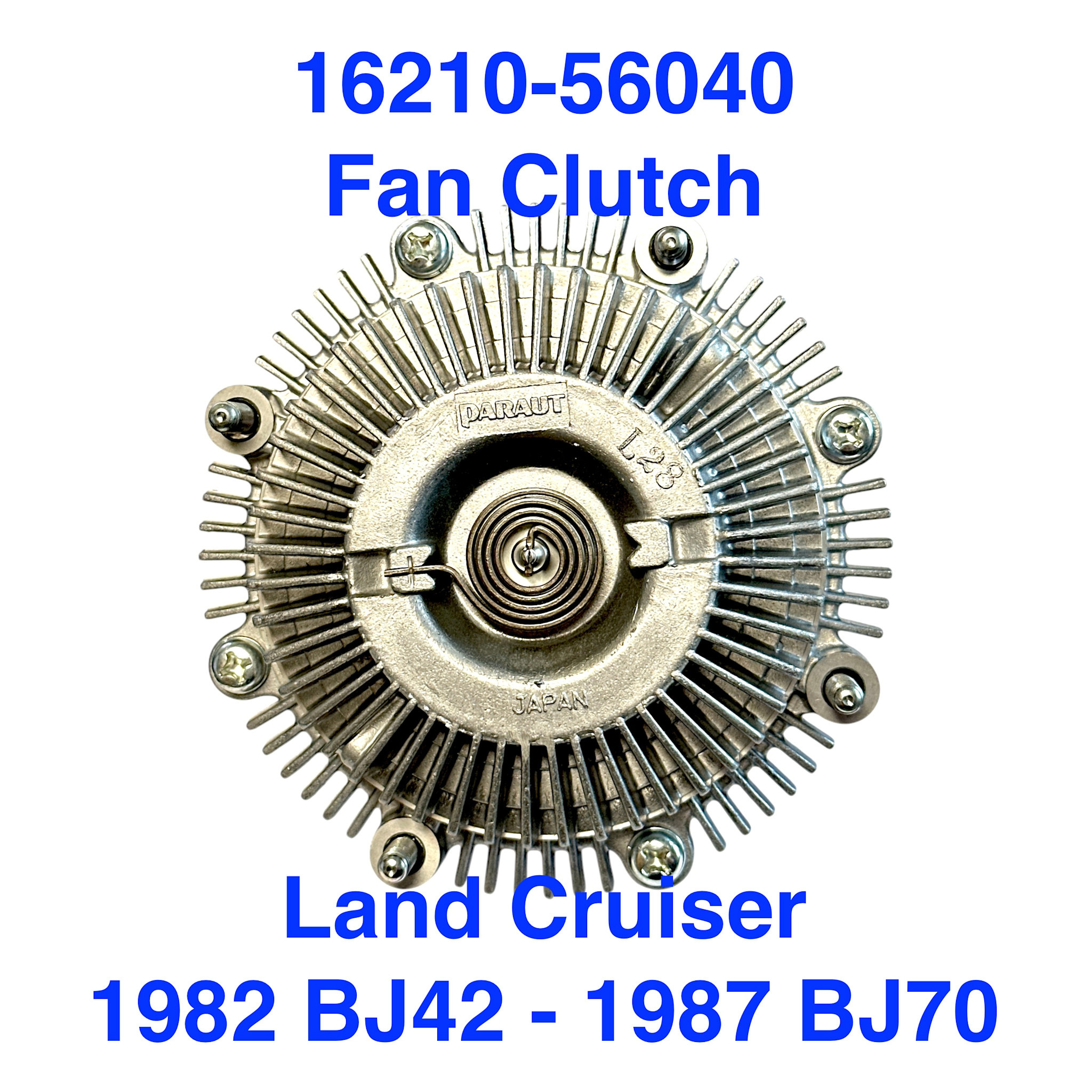

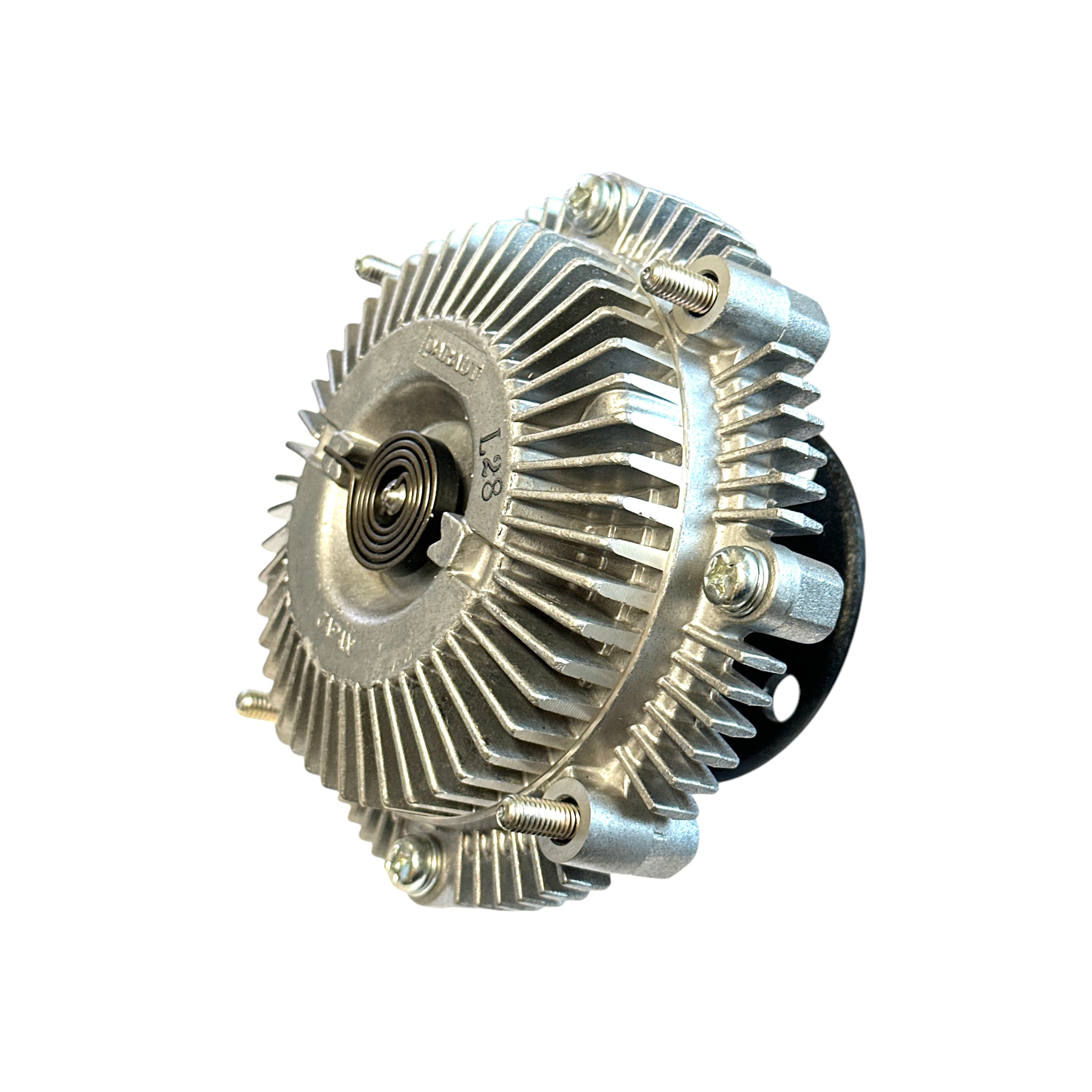

Fan Clutch / Viscous Coupler - Toyota Land Cruiser 1982 BJ42-1987 BJ70 - 16210-56040

Fan Clutch / Viscous Coupler (aka: Coupling Assy, Fluid) - Toyota Land Cruiser with 3B

10/1981-09/1984 Toyota Land Cruiser BJ42 = 1982 model year & later, and not 1981 model year
11/1984-07/1986 Toyota Land Cruiser BJ70LV
08/1986-06/1987 Toyota Land Cruiser BJ70LV

Note 1: does not fit early (1981) BJ42s that use fan clutch pn: 16210-56020 (08/1980 - 09/1981)

Note 2: Please provide your VIN info and MODEL codes when ordering so I can check to see that you're ordering the correct fan clutch. Some BJ70x models were supplied with the later, larger sized fan clutch which uses a different fan (mis-matched parts will not fit).

Details:
• 8mm mounting bolts to the water pump - approx. 62.5-63mm bolt circle
• 6mm mounting studs to the fan - approx. 123mm bolt circle

Toyota pns:
16210-56040 = 10/1981-09/1984 Land Cruiser BJ42, 11/1984-06/1987 Land Cruiser BJ70
16210-70022
16210-70040
16210-70060

Hitachi / Paraut - Japan

2024 12 13 created
8483.60
1,170
1621056040
1621070022
1621070040
1621070060
BJ42 fan clutch, BJ40 fan clutch, BJ70 fan clutch
