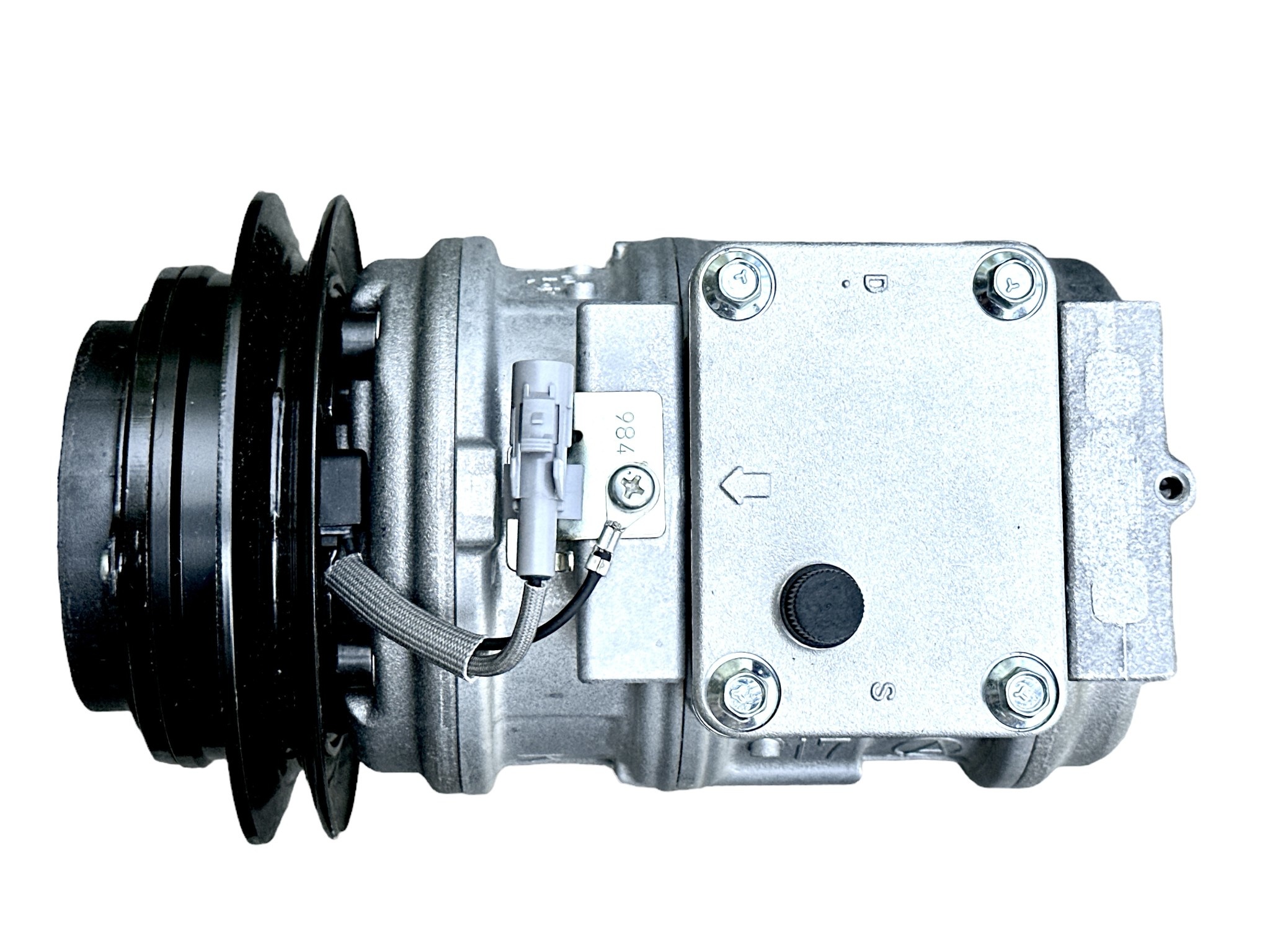

AC Compressor 1HZ, 1HDT - Denso 10PA17C - Toyota Land Cruiser 1HZ, 1HDT w/pulley & clutch (12V)

Article number: 88320-60340 (R12) 10PA17C
Availability: In stock (1)

New Genuine Denso R12 A/C Compressor - Toyota Land Cruiser HDJ80, HDJ81, HZJ80, HZJ81 with 1HZ and 1HDT engines w/pulley & clutch (12V)

This compressor is lubricated with Mineral Oil and is designed for use with R12 systems or systems that are using R12a non-Freon replacement refrigerant (such as Red-Tek or Duracool) and are still using Mineral oil as the lubricant.

This compressor cannot be used on R134a systems unless it has been thoroughly flushed and the appropriate amount of PAG oil (or Ester) has been added.

This is a 17 series compressor, which has more capacity than the 15 series compressor that the 1HZs and 1HDTs came with. The fitment is the same, the pulley spacing is the same.

If you need an R134a compatible compressor your 1HZ or 1HDT powered Land Cruiser, then use part number: 88320-60560

For more information on compressors and refrigerants you can click this text link.

This is a new part, not rebuilt.

Comes with 12V clutch and top cover gasket.

Part Number:
88320-60340 = early HZJ and HDJ81 (R12 systems only)
88320-60560 = later HDJ81 (R134a systems)


Denso - Japan
