Bolts, Cylinder Head (Set) - Toyota Land Cruiser 1HD-FT, 1HD-FTE - (26 pcs) 90910-02119 (20) + 90910-02096 (6) Genuine Toyota

C$289.98
Article number: 90910-02119 (20) + 90910-02096 (6)
Availability: In stock (2)

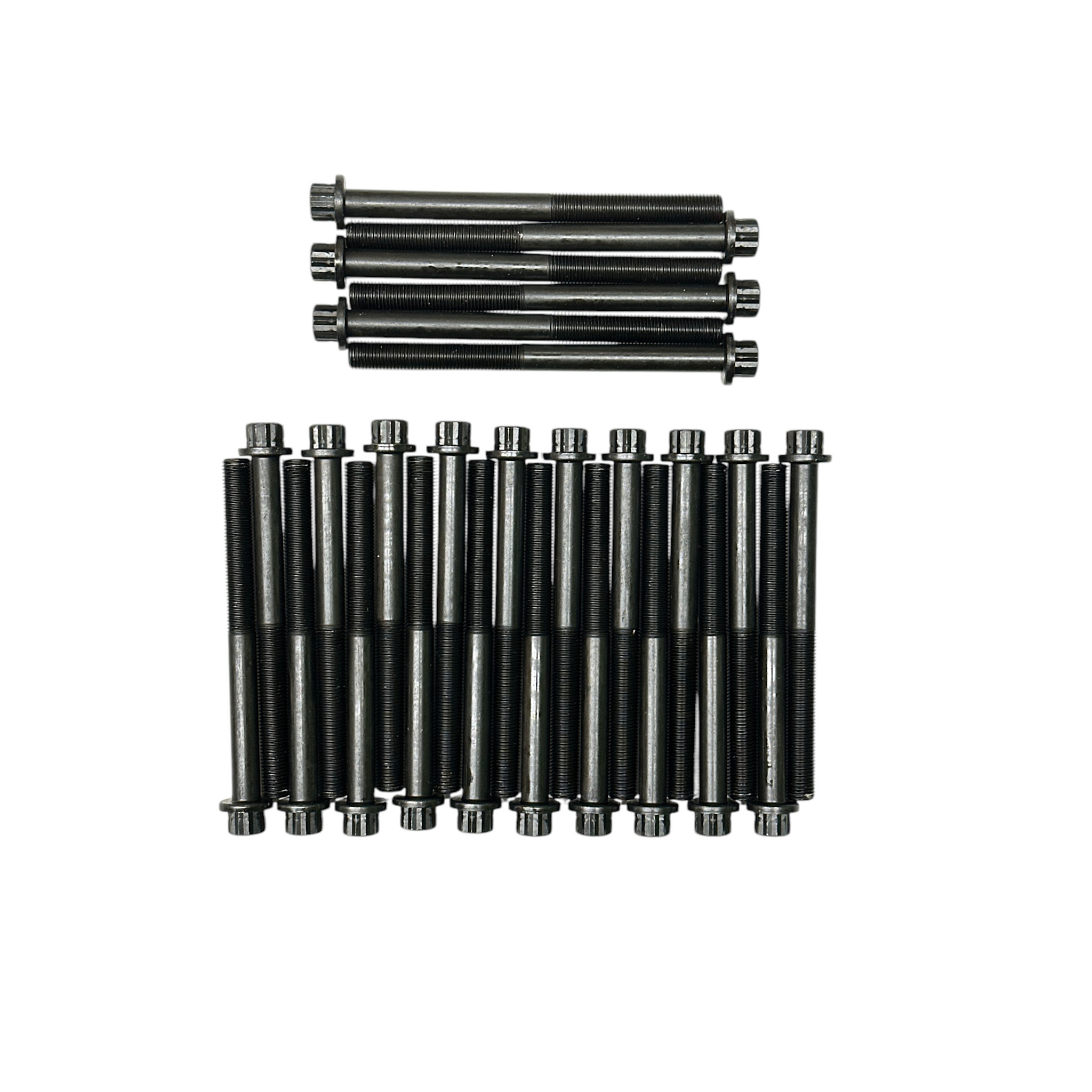

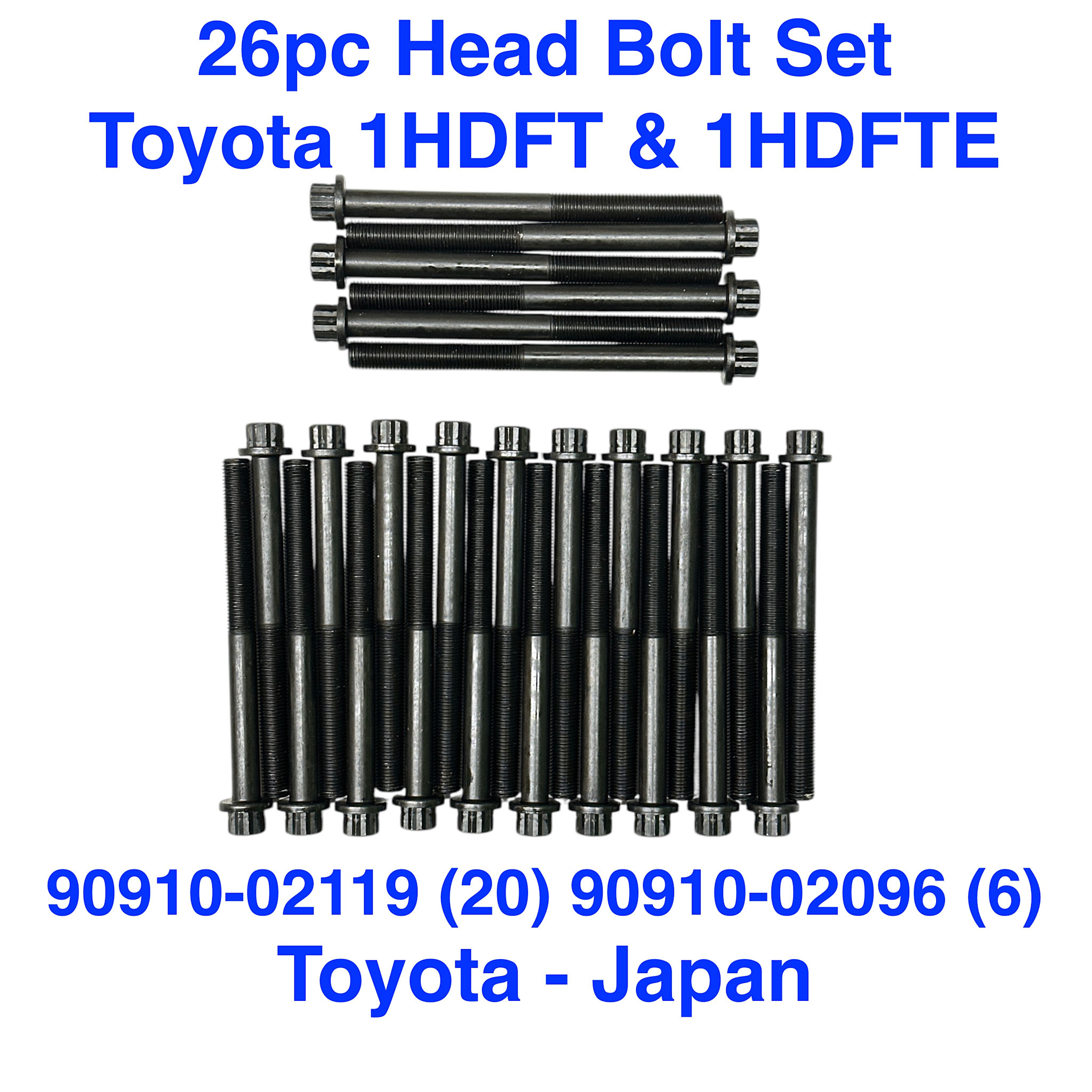

Bolts, Cylinder Head (Set) - Toyota Land Cruiser 1HD-FT, 1HD-FTE - (26 pcs)

Torque to Yield Head Bolt set

Toyota pns:
90910-02096 133.5mm x6
90910-02119 121.5mm x20

Toyota - Japan

Notes:

Also suits Yanmar 6LPA marine engines, which are based on the Toyota 1HD-FT engine.

We recommend replacing your head bolts each time you are repairing or replacing your cylinder head or cylinder head gasket.

Note 1: Make sure the head bolt holes are properly cleaned out and fully dry prior to head bolt installation. Leaving solvent, water, or debris in the holes may cause improper torque or the threads to become damaged of stripped.

Note 2: that you use several drops of light oil on the threads, and a small amount of rebuilder’s grease or a drop or oil under the head of bolt and both sides of the washer while torquing in to place.

Torque in 3 progressive steps to 51 Ft. Lbs, then +90* & +90*.

The best lubricant for this task is ARP's Ultra Torque bolt lubricant 100-9908 (0.5 ounce packet), or 100-9909 (1.69 ounce tube).

If you are going to risk re-using your old bolts, use vernier calipers and carefully measure the minimum outer diameter of the compressed thread at the measuring point (see Toyota FSM for details).














7318.15
2024 08 15
9091002096
9091002119
