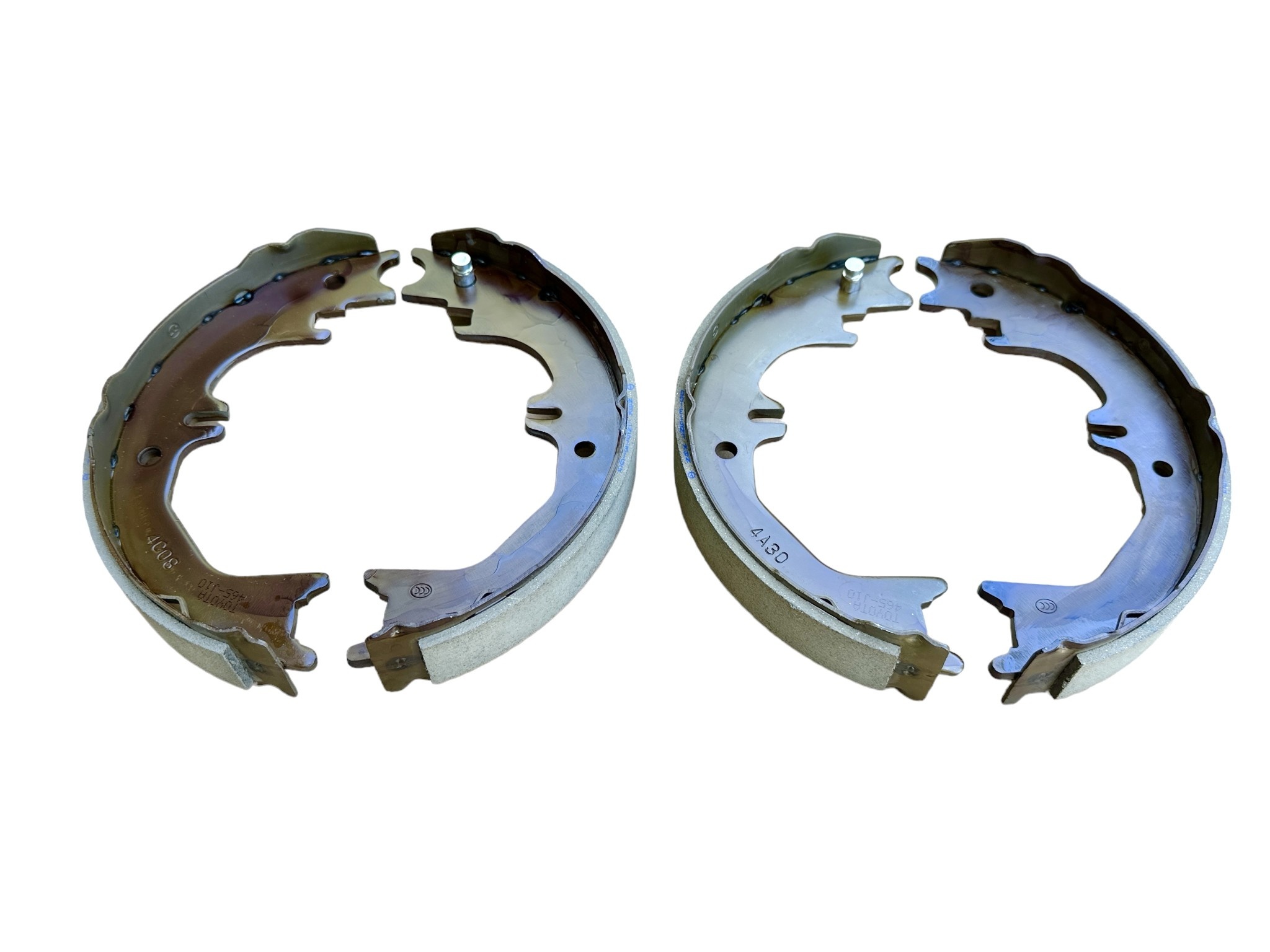

Parking Brake Shoes, Set - 4 pieces - for Land Cruiser 80 Series with big brakes - 465xx OEM

Scroll to read: This product description contains important product and installation notes.

OEM Toyota Parking Brake Shoes Set for Toyota Land Cruiser 80 Series and late model 70 Series with rear disc brakes

Aftermarket parking brake shoes can be found here: 46550-LC80 Set Std.

These are for the Big Disc Brakes in the rear - ie: Land Cruiser 80 Series from the 1993 model year onward.

The 1993 model year starts around a 08/1992 production date on most Land Cruisers, and in North America these "big rear disc brakes" started with the introduction of the FZJ80 and larger front brakes along with rear disc brakes.

With imported grey market HDJ81s and HZJ81, there are some notable changes beginning with the 1993 model year, including larger front and rear disc brakes the electronic A442F transmission (vs the earlier hydraulic version).

Why use Genuine Toyota parts?: Some technicians and mechanically savvy clients state that the Genuine Toyota parking brake shoes work much better than aftermarket offerings, and are easier to set up and adjust properly.

Important Tech Notes: When installing and adjusting parking brakes shoes on these vehicles, it's very important to follow the factory procedure including starting any rear brake work with properly and safely securing and lifting the vehicle, and then any necessary adjustments to wheel bearings and brake cables - first and foremost.

Almost 100% of problems related to: "parking brakes on these vehicles don't work!!" or "man, these parking brakes are a pain in the butt and they suck!" are related to not taking the time to thoroughly understand how the parking brake system works, not understanding the correct procedures and the order in which they must be performed, and not taking the time to read the factory service manual.

Furthermore, the factory service manual is written on the basis that a trained and experienced technician is performing the various procedures, and that tech plays a critical role in being the eyes on the operations being performed and knows how to interpret various details to diagnose and analyze any given situation to troubleshoot it correctly.

Basic "how to" on setting up the parking brakes:

• Please download the following pages from the Toyota Factory Service Manual, then follow the additional instructions posted below the links on this page.

• FSM Information on setting up the parking brake shoes

• Parking Brake Lever Adjustment Setting

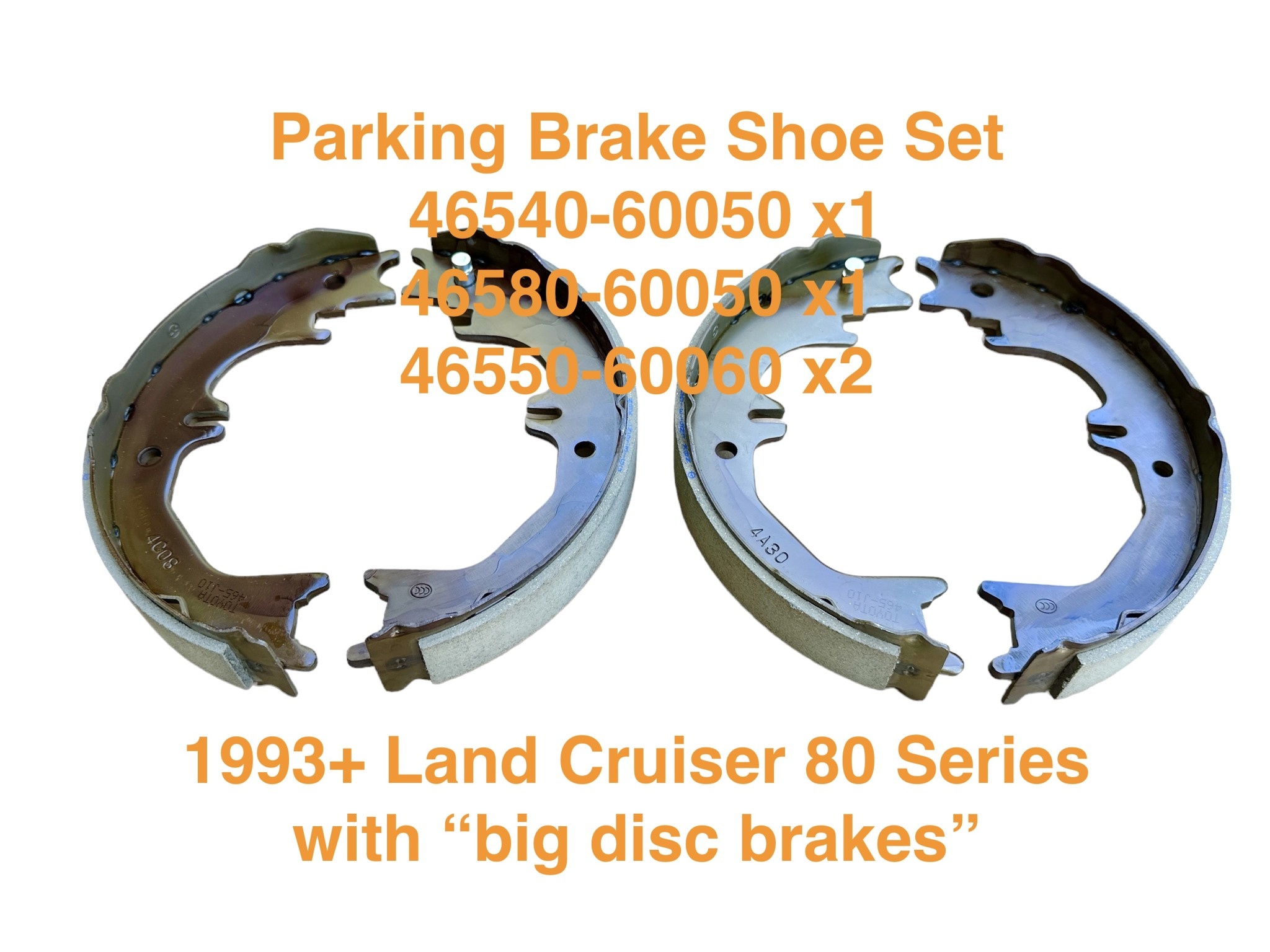

Toyota part numbers in kit:
1x 46540-60031 -> 46540-60050 = RH / Ctr #1
2x 46550-60041 -> 46550-60060 = RH / Ctr #2 & LH #2
1x 46580-60031 -> 46580-60050 = LH / Ctr #1

Genuine Toyota - Japan

Note: when working on brakes, the dust is a hazard to respiratory health even though it is asbestos free. Wear an appropriate respirator and use a wet method when cleaning the brake shoes, drums and related parts.

Notes:
• The brake shoe return springs have two different sizes.
• Their correct location is important, and the stiffer springs with fewer coils go towards the rear shoe.
• See the diagram in the images on this page, and download the .pdf document

• Download this --> Parking Brake Hardware & Spring Location Diagram from the Toyota FSM

Installation tips that are in addition to what's in the Factory Service Manual

If you want to have a successful parking brake project, then you really need to pay attention to small details and be able to read, understand, and follow a detailed list of procedures.

The Factory Service Manual outlines the procedure, but even experienced techs think they know better and screw this job up with shocking regularity.

If you're too impatient or if you are unable to put the service manual instructions into hands-on action, then you're not going to have success - get someone else to help you with this job.

• The rear axle must be sitting at ride height - on axle stands - when doing this job. The vehicle's rear axle absolutely must not be hanging at full extension/drop on a vehicle lift.

• If your vehicle has even a moderate amount of lift, then you will need to re-route the parking brake cable to have it not cause binding of the parking brake shoes when your vehicle is off-road and the suspension is drooping or articulated. This may require you to fabricate new mounts, create movement in cable guide points or routing, and otherwise get a bit creative with reducing or eliminating parking brake cable binds and kinks.

• Your rear wheel bearings must be correctly adjusted with no felt play when the tires are in place and the wheels are off the ground. This is done using the traditional method of grabbing the tire at 12 & 6 o'clock and then pushing back and forth to detect play.

It is much more challenging to detect loose rear wheel bearings due to the attached axle shaft (if the axles shafts are in place) as they are difficult to move inside the diff. If you remove the shafts, you will get a much better feel of how loose the bearings are.

• Having the bellcranks resting against the backing plates is your starting point: This can be achieved a few different ways, but the main rear parking brake cable must be slacked off inside the vehicle - all the way - to be able to have the rear parking brake bellcranks resting against the backing plates. OR, you can remove the pins holding the cable ends to the bellcranks, do the work at the drums, then slack off/adjust the cable inside the vehicle at the end of the procedures to have the bellcranks resting on the backing plates.

• Worn out pins inside the parking brake disc/drum, at the bellcrank pivot point, or at the bellcrank to parking brake attachment points can and will create excessive play that will be challenging to adjust out.

• The aluminum brackets that the parking brake bellcranks pivot inside of are prone to electrolytic corrosion due to the use of dissimilar metals, and this can bind the bellcranks. It is not uncommon to have to replace these parts - the brackets, the pins and clips, the bellcranks and the protective boots. There are left and right handed parts - make sure you order the correct items ahead of attempting this job.

• When working on the parking brake bellcrank brackets and bellcranks, it's a really good idea to carefully use a silver (zinc-based) anti-seize compound or non-melting silicone or ceramic brake parts lubricant on the pins, brackets, and bellcranks to reduce corrosion and seizing of these parts.

• One of the last steps that often gets missed is the breaking-in or bedding-in procedure for the rear shoes. This is outlined in the Toyota Factory Service Manual, but more often than not it's not performed. However, not bedding-in the brake shoes and then re-adjusing the drum to shoe clearance along with a final parking brake cable adjustment inside the vehicle must not be overlooked.

• Lastly, the bedding-in process will make the drums and shoes very hot. When parking the vehicle, allow the brakes to cool down with the parking brake shoes not being held against the disc/drum - be safe, don't let your vehicle roll away on you. Once the brake drums and shoes have properly cooled, the parking brake should have very good hold. If not, then re-check and re-adjust the shoe to drum clearance and/or the brake cable adjustment.

2024 07 05
2024 12 29 updated
6813.81
4654060031 -> 4654060050
4655060041 -> 4655060060
4658060031 -> 4658060050
