12V 160A High Output Alternator for 1KZT powered HiAce, Prado, Surf

Scroll this window to read important product information

High Output 12V 160A for a variety of 1KZTE applications KZN, KZH, KZJ

This alternator is built with hairpin windings, an OEM voltage regulator, and dual cooling fans to reliably output 160A for high energy demands.

• This alternator replaces numerous Toyota part numbers.
• The list below is incomplete.

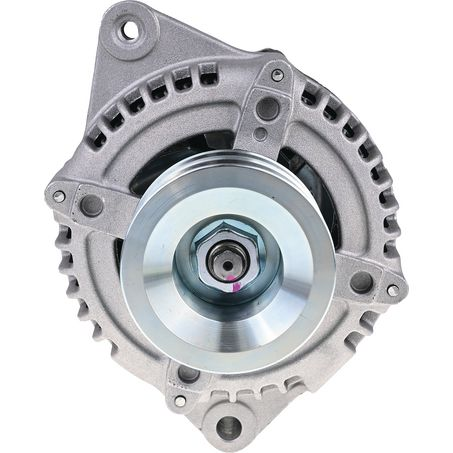

• Please carefully check your alternator against the supplied images.

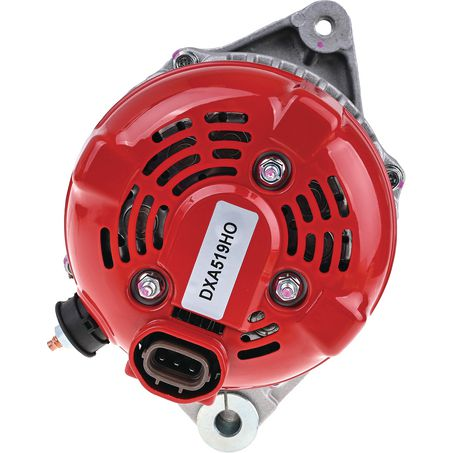

• Note the orientation of the pivot point and the belt adjustment point, as well as the location of the output post and the harness connector (more information near the bottom of this page)
• May require the use of a larger adjusting bar (16831-67030) - this is still to be determined.

27060-67040 = HiAce KZH100, KZH106, KZH110, KZH116, KZH120, KZH126
27060-67050 = HiAce KZH110, KZH116, KZH120, KZH132, KZH138
27060-67070 = Hilux Surf KZN185, Land Cruiser Prado KZJ90W
27060-67080 = Hilux Surf KZN185, Land Cruiser Prado KZJ90, KZJ95
27060-67010 = Land Cruiser Prado KZJ71, KZJ78
27060-67110 = Hilux Surf KZN185, Land Cruiser Prado KZJ90, KZJ95
27060-67120 = HiAce KZH106
27060-67140 = Land Cruiser Prado KZJ90, KZJ95, KZJ120

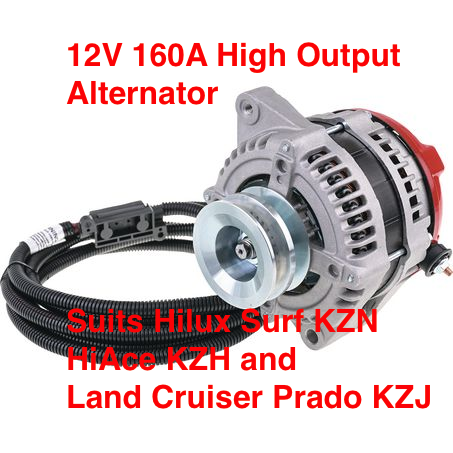

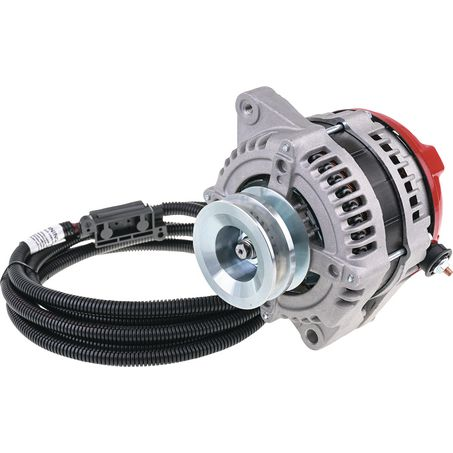

• The installation of this alternator requires the use of the supplied harness and fuse.
NB: The factory wiring is not capable of handling the current this alternator can produce.
• If you are at all unsure about how to properly install this alternator and the related upgrade harness and fuse, please get a licensed / qualified automotive service technician to perform the work for you.
• Alternator failures due to improper installation or use are not covered under warranty.
• Vehicle electrical system failures, burned wiring harnesses, and vehicle fires are also not covered under warranty.
• Failure to properly install the provided upgraded alternator to battery wire and fuse may lead to burning up your factory wiring harness and/or your vehicle.

Replaces Toyota pns:
27060-67040 (80A)
27060-67050 (110A)
27060-67070 (70A)
27060-67080 (80A)
27060-67010 (55A)
27060-67110 (70A)
27060-67120 (80A)
27060-67140 (80A)

High Quality Aftermarket
Engineered in Australia, made in China

Mounting Configuration information:
Adjusting Hole Diameter: M8x1.25
Mount Leg Thickness: 58mm

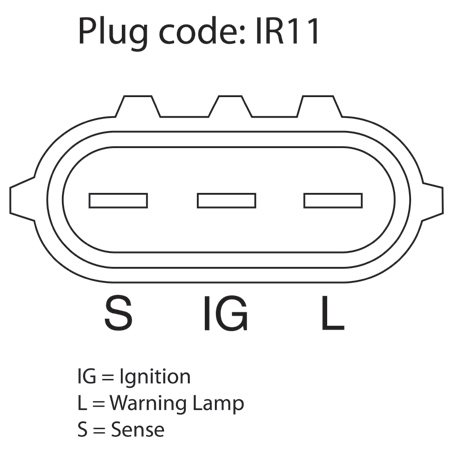

Pin Code: IR11 (see included image)
Pivot Hole Diameter: 10mm
Power Rating [Amp]: 160
Pulley Outside Diameter: 73mm
Pulley Section: AA (dual belts)
Regulator Type: Internal
Suits Unit Make: Denso

Battery Type Information:
• This high output alternator is designed to charge lead-acid batteries.
• To charge lithium batteries, charging must be done through a BC-DC (battery charge from direct current) / DC-DC charger that has the correct charging parameters for lithium battery chemistry (charging profile and voltage).
